Поз.
Артикул
Описание

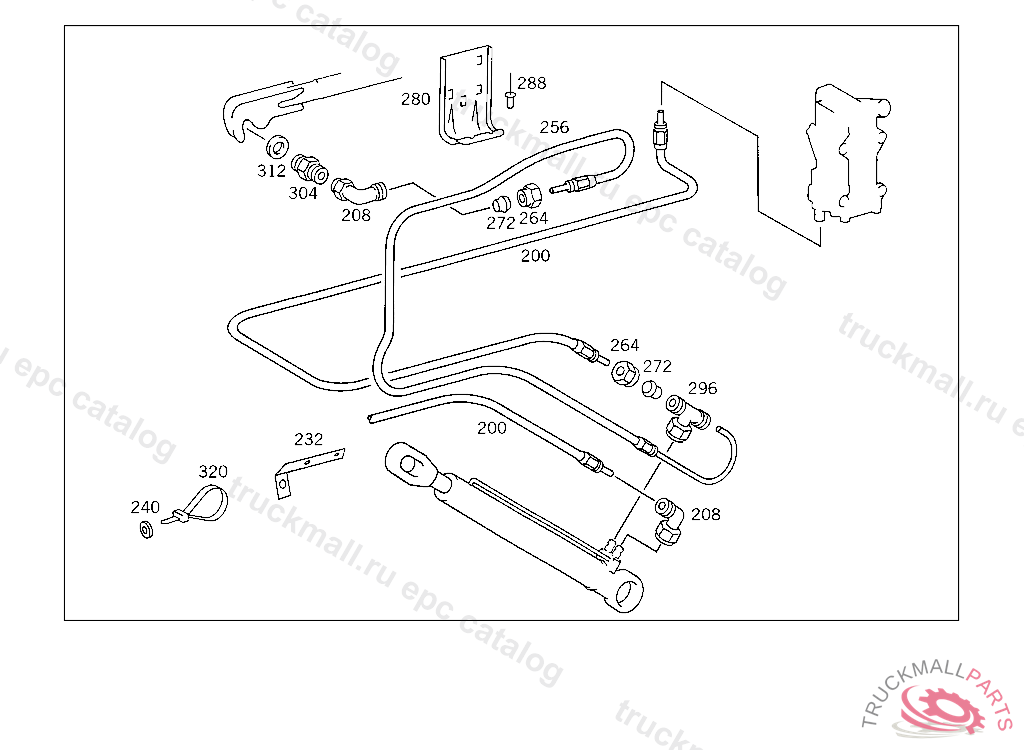

200
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
200
HOSE FROM CYLINDER TO PUMP
200
HOSE , Replaced By: A6155530082
200
HOSE , Replaced By: A6555530582
200
HOSE , Replaced By: A6205530182
200
HOSE , Replaced By: A6555530082
200
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
208
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
208
FITTING FROM PUMP TO CYLINDER
232
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
232
BRACKET AT CAB SIDE MEMBER
240
WASHER EXHAUST MUFFLER TO STRAP
240
WASHER , Replaced By: N000125008443
256
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL,5 942826
256
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL
264
UNION NUT
272
SEAL CONE
272
GLAND , Replaced By: A0019901667
280
BRACKET HIGH PRESSURE HOSE TO CAB
288
RIVET , NOT USED
296
T-FITTING. FITTING AT INJECTION PUMP
304
FITTING 3/2-WAY VALVE,CONNECTION: "30"
304
SCREW-IN FITTING , Replaced By: A0029978472
312
SEAL RING LINE CONNECTION
320
LOOM TIE LINE MOUNTING 280 MM
320
LOOM TIE LINE MOUNTING
999
GUIDEWEBER,TO 001 553 45 05
999
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
999
BRACKET HIGH PRESSURE HOSE TO CAB
999
BRACKET HIGH PRESSURE HOSE TO CAB
999
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL
999
SCREW-IN FITTING , Replaced By: A0029978472
