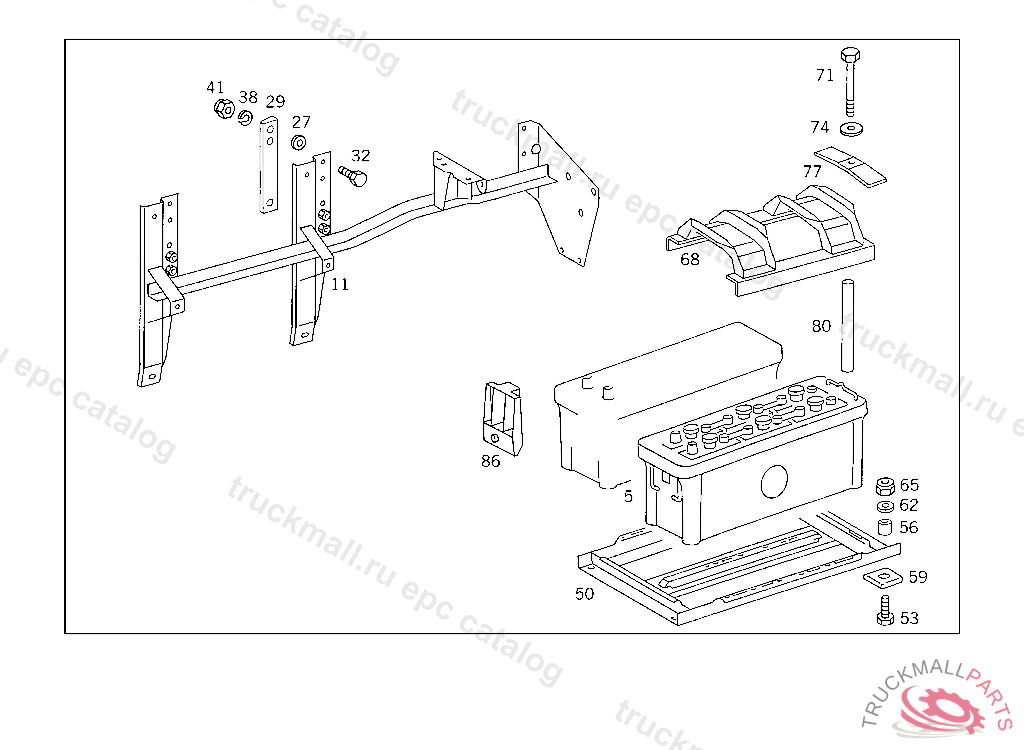

Поз.
Артикул
Описание
5
BATTERY12V/120 AH
5
BATTERY FILLED AND CHARGED 12V/180AH
5
BATTERY12 V/165 AH
5
BATTERY12 V/100 AH
5
BATTERY12 V/115 AH
5
BATTERY12 V/135 AH
5
BATTERY FILLED AND CHARGED 12V/170AH
5
BATTERY FILLED AND CHARGED 12V/140AH
5
BATTERY , Replaced By: A0035418801
5
BATTERY , Replaced By: A0045415101
5
BATTERY FILLED AND CHARGED 12V/115AH
11
SUPPORT AIR RESERVOIR TO FRAME
11
SUPPORT BATTERY/APPARATUS,K 093236
32
SCREW SUPPORT TO FRAME M 14X32,5 129244
32
SCREW , Replaced By: N910105014010
32
SCREW EXHAUST PIPE BRACKET TO SIDE MEMBER
32
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
38
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
41
NUT SUPPORT TO SIDE MEMBER
41
NUT BRACKET TO SIDE MEMBER
41
NUT , Replaced By: N910113014001
50
RAIL. BATTERY BASE FRAME
53
SCREW REAR EXHAUST PIPE TO MUFFLER
56
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
59
INSULATING PLATE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
62
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
62
WASHER , Replaced By: N000125010532
62
WASHER RADIATOR TO RUBBER MOUNTING
65
NUT STRAP TO BRACKET
68
MOUNTING FRAME BATTERY
71
SCREW BATTERY MOUNTING M 8X260X40
71
SCREW BATTERY MOUNTING
74
WASHER BRACKET TO LEFT SIDE MEMBER
74
WASHER , Replaced By: N009021008213
77
BRACKET BATTERY MOUNTING,5 928008 FROM IDENT NO. 5 928009 SEE SA 46975
80
SPACER TUBE BATTERY MOUNTING,5 928008 FROM IDENT NO. 5 928009 SEE SA 46975
86
STOP BATTERY MOUNTING
999
WASHER BRACKET TO COVERING
999
WASHER , Replaced By: N009021010209
999
BLIND CAPTO A 004 541 48 01
