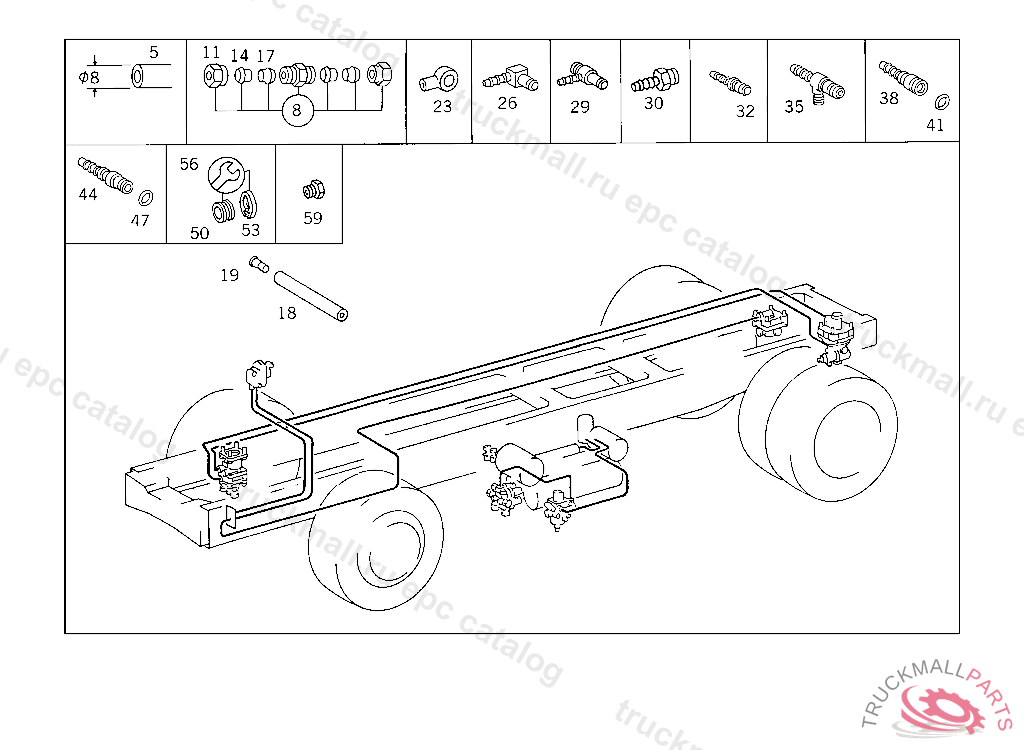

Поз.
Артикул
Описание
5
PLASTIC PIPE AERATION, ORDER BY THE METER
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE
11
UNION NUT LINE CONNECTION
14
GLAND LINE CONNECTION
17
SLEEVE LINE CONNECTION
18
HOSE LEAK LINE, ORDER BY THE METER
19
SLEEVE LEAK LINE
23
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
23
BANJO UNION HEATING CONNECTION,K 169122
26
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
26
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
26
ELBOW FITTING , Replaced By: A0049905371
29
ELBOW FITTING HOSE WIDTH, 8 MM, TO M 16
30
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
32
CONNECTOR , Replaced By: A0029905478
32
CONNECTOR HOSE WIDTH, 6 MM,TO M16
38
CONNECTOR HOSE WIDTH, / I.D., 6 MM
41
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
44
CONNECTOR DISTRIBUTOR TO CAB
47
SEAL RING
50
LOCK RING LINE CONNECTION
50
SEAL RING , Replaced By: A0009940747
53
LOCK , Replaced By: A0009945448
53
LOCK LINE CONNECTION
56
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
56
REPAIR KIT , Replaced By: A0309971748
59
SCREW. UNION SCREW , Replaced By: A0009973734
59
SCREW. UNION SCREW LINE CONNECTION
