Поз.
Артикул
Описание

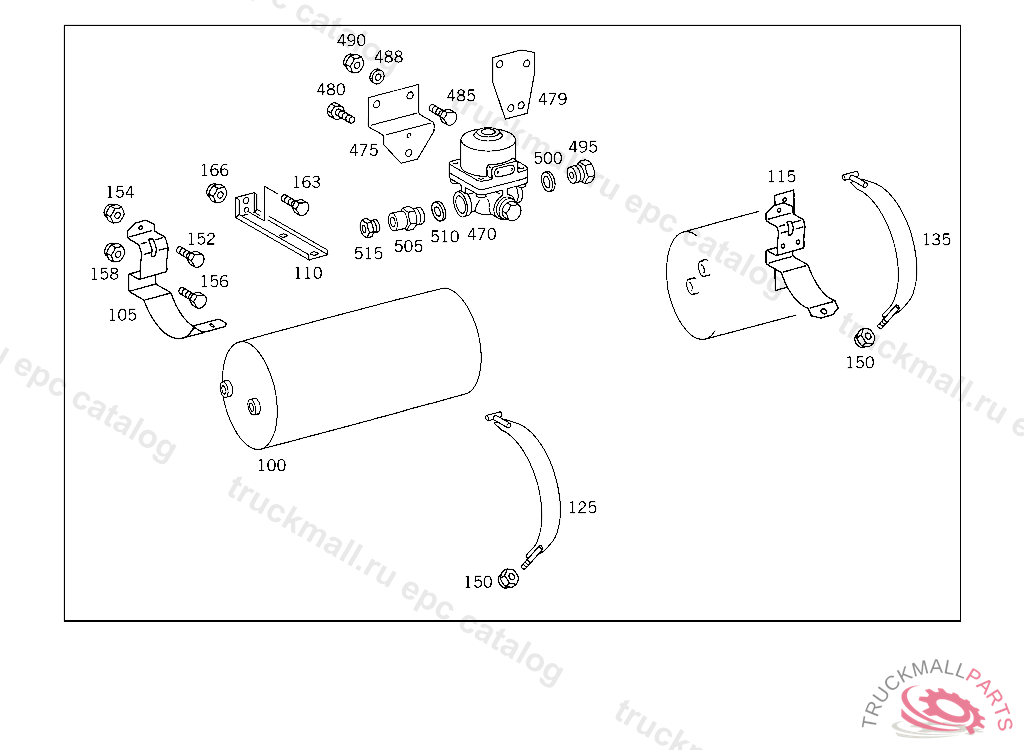

100
RESERVOIR10L,206 MM,8.5 BAR
100
RESERVOIR ,5 563826
105
BRACKET AIR RESERVOIR TO CROSS MEMBER
105
BRACKET CLUTCH BOOSTER AIR RESERVOIR
110
BRACKET AIR RESERVOIR TO CROSS MEMBER,K 115205
115
BRACKET AIR RESERVOIR,5 765578
125
STRAP AIR RESERVOIR
125
STRAP CLUTCH BOOSTER AIR RESERVOIR 520 MM
125
STRAP PARTICLE FILTER
125
STRAP , Replaced By: A6554900942
135
STRAP AIR RESERVOIR TO BRACKET
150
NUT STRAP TO BRACKET
150
NUT EXHAUST PIPE TO SIDE MEMBER
150
NUT , Replaced By: N910113010000
152
SCREW , Replaced By: N304017008021
152
SCREW PIPE CLAMP
154
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
154
NUT , Replaced By: N913004008001
156
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
156
SCREW , Replaced By: N910142008009
156
SCREW CLAMP TO BRACKET,5 597426
158
NUT STRAP TO BRACKET
158
NUT BRACKET TO BRACKET
158
NUT , Replaced By: N910113010000
163
SCREW CONNECTING PIPE TO EXHAUST MANIFOLD M 12X45
166
NUT END PIECE TO EXHAUST PIPE
470
VALVE (PRESSURE RATIO VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
470
VALVE (PRESSURE RATIO VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
475
BRACKET ,8 004624
479
BRACKET PRESSURE RATIO VALVE
480
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
480
SCREW COVERING TO SUPPORT
480
SCREW , Replaced By: N304017008039
485
SCREW , Replaced By: N304017008034
485
SCREW , Replaced By: A0099900101
485
SCREW , Replaced By: N000933008337
485
SCREW , Replaced By: N304017008021
485
SCREW BRACKET TO FRAME M 8X35
485
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
485
SCREW PIPE CLAMP
485
SCREW BRACKET TO CROSS CONNECTION STRUT
488
WASHER EXHAUST MUFFLER TO STRAP
488
WASHER , Replaced By: N000125008443
490
NUT , Replaced By: N913004008001
490
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
495
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
495
SCREW PLUG , Replaced By: N000908022011
500
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
505
FITTING AIR RESERVOIR,CONNECTION: "26", NOT USED
510
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
515
SCREW. UNION SCREW LINE CONNECTION
999
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
999
VALVE. DRAIN VALVE DRAIN
999
VALVE DRAIN, Replaced By: A0004322107
999
O-RING CHECK VALVE TO AIR RESERVOIR
999
PLASTIC PIPE AERATION, ORDER BY THE METER
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
NUT STRAP TO SUPPORT
999
CONNECTOR HOSE WIDTH, 6 MM, TO M22
999
NUT BRACKET TO BEARING BRACKET
999
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
999
SEAL RING , Replaced By: A0009940747
999
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
THRUST RING CHECK VALVE TO AIR RESERVOIR
999
LOCK RING LINE CONNECTION
999
LOCK , Replaced By: A0009945448
999
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
999
LOCK LINE CONNECTION
999
SCREW. UNION SCREW , Replaced By: A0009973734
999
SCREW. UNION SCREW LINE CONNECTION
999
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
999
SCREW , Replaced By: N910142008001
999
ELBOW FITTING , Replaced By: A0049905371
999
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
999
SCREW LINE MOUNTING M 10X20
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
SCREW BRACKET TO REAR CROSS MEMBER
999
LOOM TIE LINE MOUNTING 280 MM
999
LOOM TIE LINE MOUNTING
999
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034313606
999
SCREW EXHAUST PIPE TO BRACKET
999
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
SCREW BRACKET TO TRANSMISSION
999
VALVE (QUICK-RELEASE VALVE) WABCO
999
VALVE (QUICK-RELEASE VALVE) WABCO
999
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
999
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
999
WHEEL BRAKE CYLINDER TRISTOP CYLINDER WABCO,5 963779 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
999
BASE AIR RESERVOIR
999
ANGLE LINE MOUNTING
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
WASHER BRACKET TO LEFT SIDE MEMBER
999
WASHER , Replaced By: A3609902340
999
GROMMET FUEL LINE THRU FRAME SIDE MEMBER 38/30 MM
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
GUIDE SIGN LOAD-DEPENDING BRAKE
999
BRACKET AIR RESERVOIR
999
BRACKET RELAY VALVE TO CROSS MEMBER
999
STRAP AIR RESERVOIR TO BRACKET
999
BRACKET
999
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
999
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
999
HOLLOW SCREW AIR RESERVOIR
999
CROSS FITTING AIR DEHYDRATOR,CONNECTION: "21", 3XM 22X1.5/1XM 16X1.5
999
BRACKET PRESSURE RATIO VALVE,5 448631
999
WASHER , Replaced By: N000125010532
999
WASHER RADIATOR TO RUBBER MOUNTING
999
WASHER , Replaced By: N000125015019
999
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW BRACKET TO CAB MOUNTING CONSOLE
999
SCREW BRACKET TO CAB CONSOLE,K 035197
999
NUT BRACKET TO SIDE MEMBER
999
SCREW BRACKET TO BRACKET
999
NUT , Replaced By: N910113014001
999
NUT BRACKET TO SIDE MEMBER
