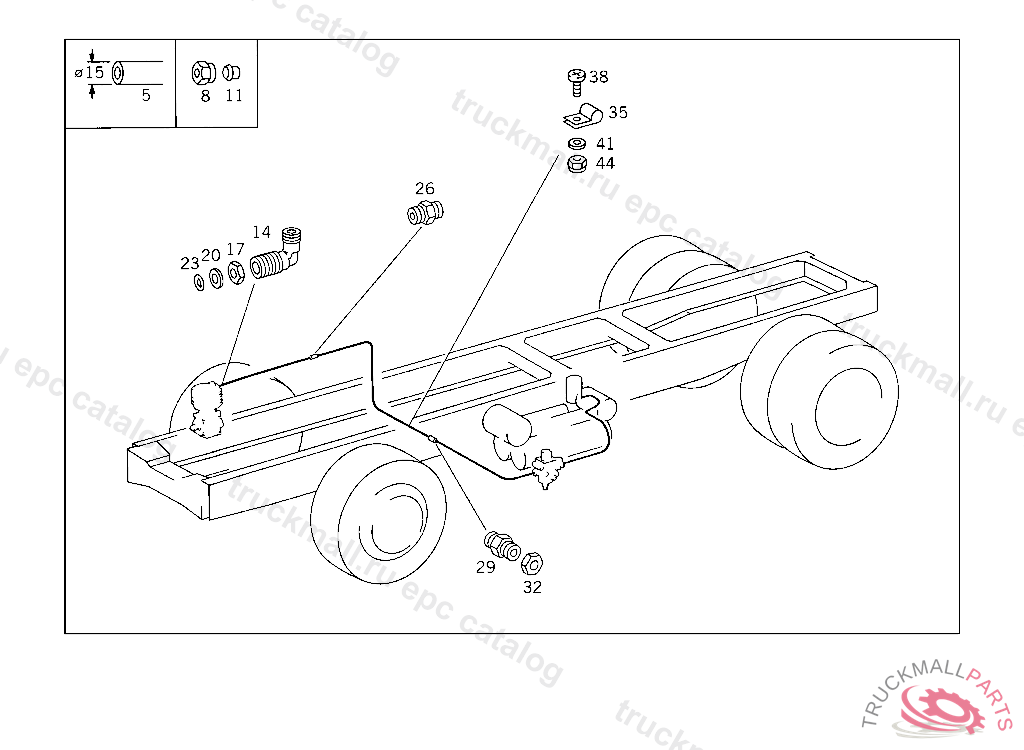

Поз.
Артикул
Описание
5
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
14
ELBOW FITTING , Replaced By: A0039901671
14
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
17
NUT SUCTION LINE TO OIL PUMP
20
THRUST RING SUCTION LINE TO OIL PUMP
23
SEAL RING LINE CONNECTION
29
BULKHEAD FITTING THROUGH SIDE MEMBER
32
NUT CHECK VALVE TO AIR RESERVOIR
35
CLAMP DELIVERY AND SUCTION LINES TO STEERING
35
CLAMP , Replaced By: A6739950001
38
SCREW CLAMP MOUNTING M 6X16
38
SCREW , Replaced By: N000000001146
41
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
41
WASHER COMPRESSED AIR LINE TO BRACKET
44
NUT PUMP TO BRACKET
44
NUT , Replaced By: N913004006001
