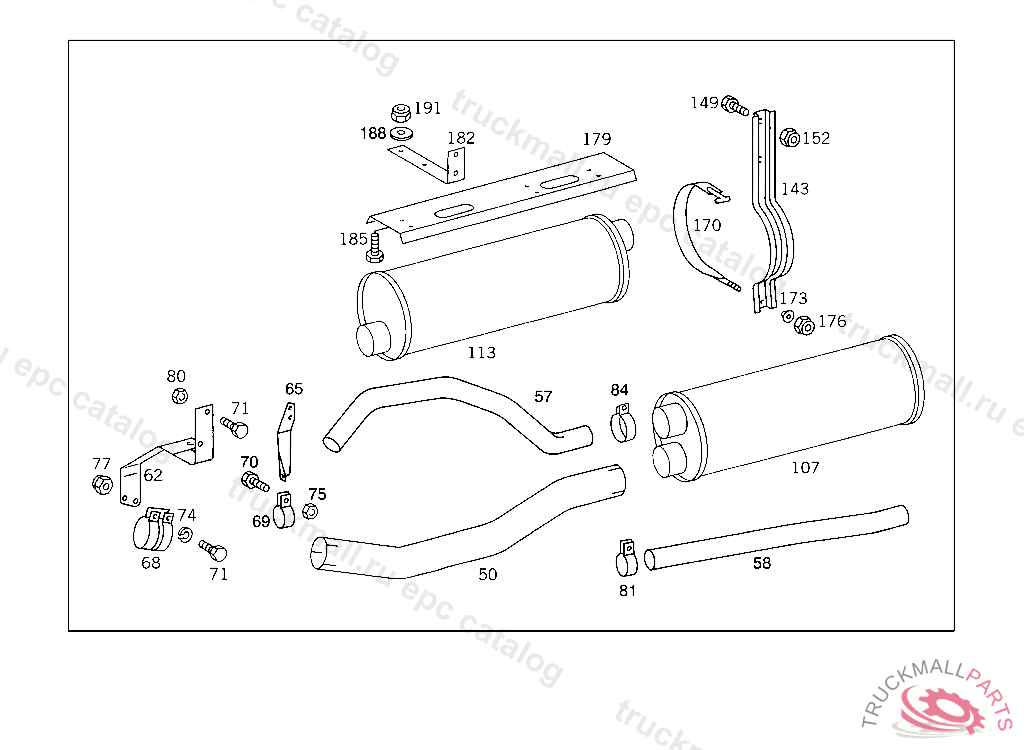

Поз.
Артикул
Описание
50
EXHAUST PIPE FRONT
62
BRACKET AT SIDE MEMBER
68
CLAMP EXHAUST PIPE TO BRACKET
71
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
71
SCREW BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233K 027550
71
HEXAGON HEAD BOLT , Replaced By: A0029902704
71
SCREW , Replaced By: N308676012013
71
SCREW END PIECE TO EXHAUST PIPE M 10X25
74
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
77
NUT BRACKET TO SIDE MEMBER
77
NUT , Replaced By: N910113014001
77
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
77
NUT , Replaced By: N910113012003
77
NUT STRAP TO BRACKET
107
EXHAUST MUFFLER
143
BRACKET FRONT AND REAR EXHAUST MUFFLERS,5 765950
149
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
149
SCREW , Replaced By: N308676014020
152
NUT BRACKET TO SIDE MEMBER
152
NUT , Replaced By: N910113014001
170
STRAP EXHAUST MUFFLER TO BRACKET
173
SPHERICAL WASHER STRAP TO BRACKET
176
NUT STRAP TO BRACKET
176
NUT , Replaced By: N910113010000
