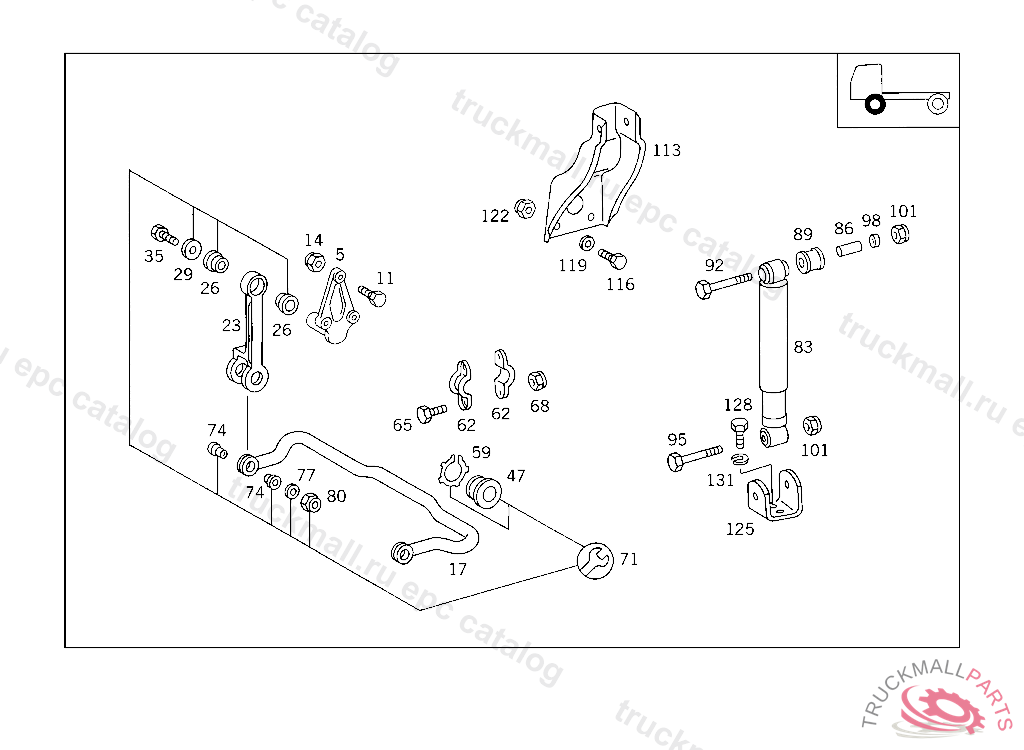

Поз.
Артикул
Описание
11
SCREW LEFT AND RIGHT CONSOLES TO CAB
11
SCREW , Replaced By: N308676012015
14
NUT SUPPORT TO SIDE MEMBER
23
LINK TORSION BAR,FRONT,5 903514
26
RUBBER MOUNTING SHACKLE TO BEARING BRACKET,5 904661
26
RUBBER MOUNTING SHACKLE TO BEARING BRACKET,5 904661
26
RUBBER MOUNTING SHACKLE TO BEARING BRACKET
35
SCREW SHACKLE TO CONSOLE
83
SHOCK ABSORBER FRONT AXLE
83
SHOCK ABSORBER FRONT AXLE
86
BUSHINGTO 004 323 52 00
86
BUSHINGTO 004 323 52 00
86
SPACER RINGTO 002 323 86 00,003 323 03 00,
86
SPACER RINGTO 002 323 86 00,003 323 03 00,
89
RUBBER MOUNTINGTO 003 326 46 00
89
RUBBER BUFFER SHOCK ABSORBER,BOTTOM TO 003 326 45 00, Replaced By: A0003238085
89
RUBBER MOUNTINGTO 003 326 46 00
89
RUBBER BUFFER SHOCK ABSORBER,BOTTOM TO 003 326 45 00, Replaced By: A0003238085
89
RUBBER BUFFER , Replaced By: A0003233144
89
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
89
RUBBER MOUNTINGTO 002 323 86 00,003 323 03 00,
92
SCREW SHOCK ABSORBER TO TOP BRACKET
95
SCREW SHOCK ABSORBER TO BOTTOM BRACKET M 16X85
95
SCREW , Replaced By: N000960016250
98
WASHER SHOCK ABSORBER TO UPPER BEARING BRACKET
101
NUT COMBINATION CYLINDER TO BEARING BRACKET
101
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
113
BEARING BRACKET SHOCK ABSORBER,TOP RIGHT
113
BEARING BRACKET SHOCK ABSORBER,TOP LEFT
116
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
116
SCREW , Replaced By: N308676012026
116
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
116
SCREW , Replaced By: N308676012012
119
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
119
WASHER , Replaced By: N007349013005
122
NUT SUPPORT TO SIDE MEMBER
125
BEARING BRACKET SHOCK ABSORBER,BOTTOM
128
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
128
SCREW , Replaced By: N308676012012
131
LOCK WASHER FITTING TO BRACKET
