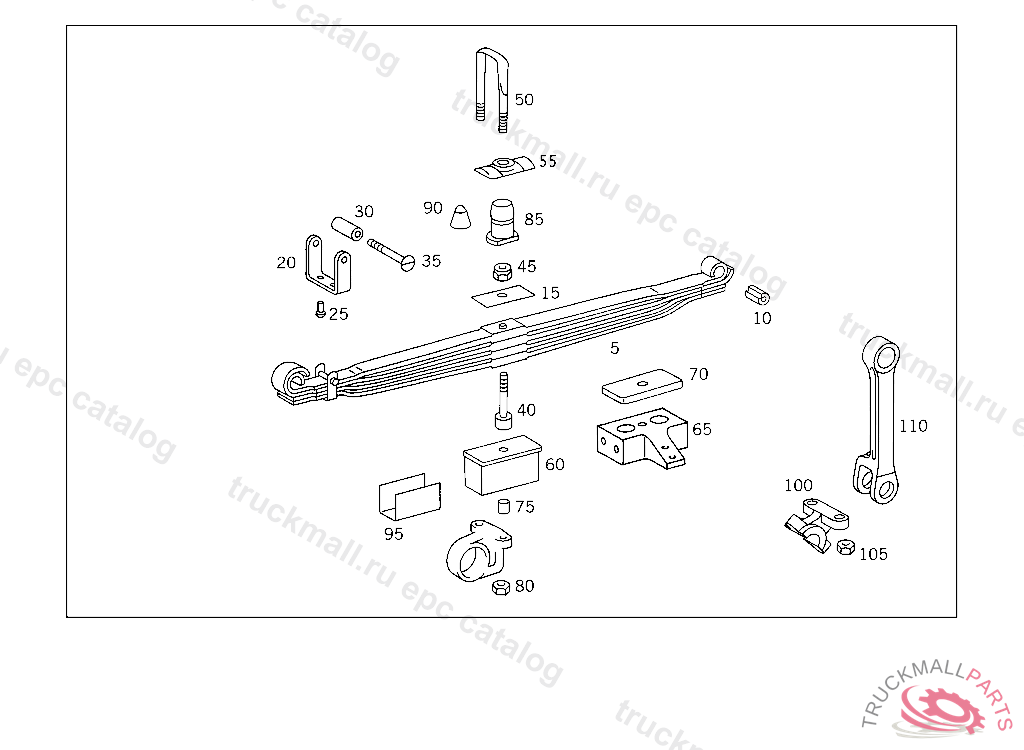

Поз.
Артикул
Описание
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "3"
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4"
10
RUBBER MOUNTING
10
RUBBER MOUNTING
15
SHIM BETWEEN THE SPRING LEAVES
15
SHIM
20
SPRING CLAMP
20
SPRING CLAMP ,5 484790
25
RIVET SPRING CLAMP TO SPRING LEAF
30
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
35
SCREW SPRING CLAMP
35
SCREW SPRING CLAMP TO SPRING LEAF,5 484790
40
SPRING BOLT
40
SPRING BOLT
45
HEXAGON NUT. NUT SPRING BOLT
45
NUT , Replaced By: N910113012005
50
U-BOLT FRONT SPRINGS TO FRONT AXLE 210 MM
50
U-BOLT FRONT SPRINGS TO FRONT AXLE 275 MM
50
U-BOLT FRONT SPRINGS TO FRONT AXLE 245 MM
50
U-BOLT FRONT SPRINGS TO FRONT AXLE 250 MM
50
U-BOLT FRONT SPRINGS TO FRONT AXLE 230 MM
55
PLATE FRONT SPRINGS TO FRONT AXLE
55
PLATE , Replaced By: A6483310026
55
PLATE FRONT SPRINGS TO FRONT AXLE
55
PLATE FRONT SPRINGS TO FRONT AXLE
60
SHIM FRONT AXLE TO FRONT SPRINGS
65
SHIM BETWEEN SPRING AND FRONT AXLE
70
SHIM BETWEEN SPRING AND FRONT AXLE
70
SHIM FRONT SPRINGS TO FRONT AXLE
75
CENTERING BOLT FRONT SPRINGS TO FRONT AXLE 28 MM
75
PIN FRONT SPRINGS TO FRONT AXLE 28 MM, Replaced By: A9303230374
75
PIN , Replaced By: A6573310074
75
DOWEL PIN FRONT AXLE TO FRONT SPRINGS
80
NUT FRONT SPRINGS TO FRONT AXLE
85
HELPER SPRING SPRING STOP TO FRAME BOTTOM SIDE
90
RUBBER BUFFER SPRING STOP
95
SHIM FRONT SPRINGS TO FRONT AXLE
95
SHIM BETWEEN SPRING AND FRONT AXLE
100
BEARING BRACKET TORSION BAR,FRONT,5 903514
100
BEARING BRACKET TORSION BAR TO FRONT AXLE
105
NUT STABILIZER TO FRONT AXLE
105
NUT REAR SPRING TO REAR AXLE
105
NUT , Replaced By: N308674020000
110
LINK TORSION BAR,FRONT,5 903514
110
LINK STABILIZER TO CONSOLE
