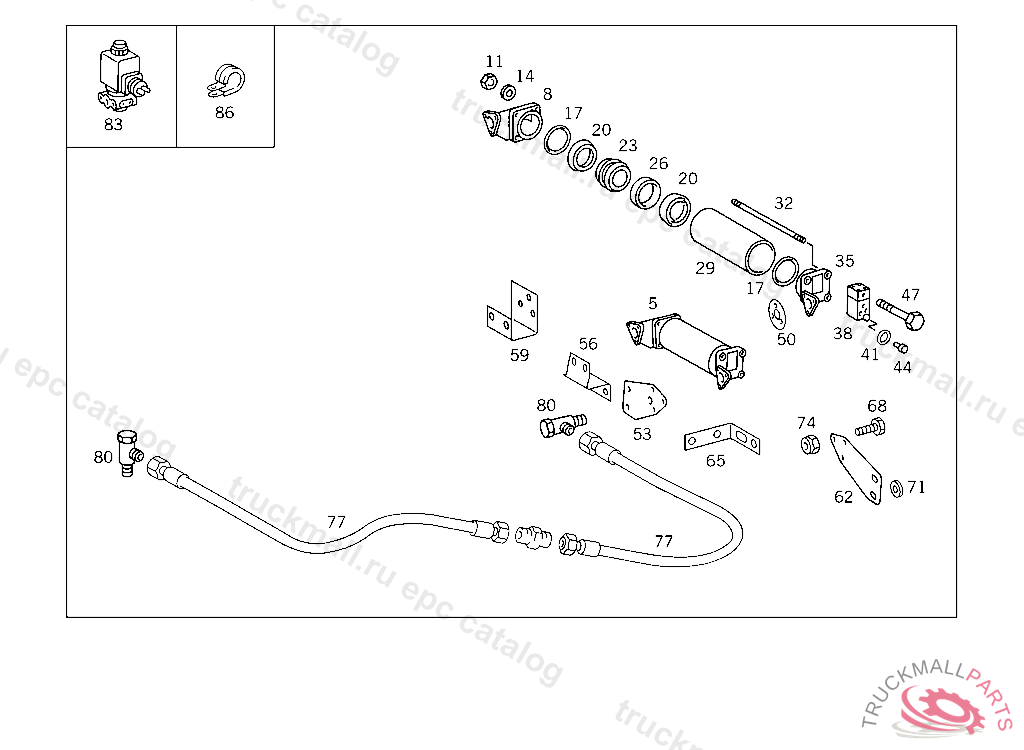

Поз.
Артикул
Описание
5
VACUUM TANK OIL COOLER
8
COVER
11
NUT
14
WASHER EXHAUST MUFFLER TO STRAP
14
WASHER , Replaced By: N000125008443
17
SEAL RING
20
SEAL RING
23
PISTON
26
PISTON GUIDE
29
PIPE
32
STUD
35
COVER
38
VALVE
41
SEAL RING
44
VALVE
47
SCREW VALVE TO BRACKET M 8X55
47
SCREW , Replaced By: N304017008043
50
GASKET LINE CONNECTION
53
BRACKET RESERVOIR
56
BRACKET RESERVOIR
59
BRACKET RESERVOIR
62
BRACKET RESERVOIR
65
BRACKET RESERVOIR
68
SCREW PUMP TO FRAME SIDE MEMBER M 8X40
68
SCREW BRACKET TO FRAME M 8X35
71
WASHER BRACKET TO FRAME
74
NUT BRACKET TO BRACKET
77
LINE FROM OIL COOLER TO TRANSMISSION
77
LINE FROM OIL COOLER TO TRANSMISSION
80
SCREW CONNECTION LINE CONNECTION
83
VALVE (3/2-WAY SOLENOID VALVE) KNORR
83
VALVE (3/2-WAY SOLENOID VALVE) WABCO
83
VALVE (3/2-WAY SOLENOID VALVE) EKS
83
VALVE , Replaced By: A0049975736
86
CLAMP HOSE TO BRACKET 25/20,5 206397
86
CLAMP SUCTION LINE TO CROSS MEMBER
999
GASKET KITKNORR
999
HOSE FROM OIL COOLER TO TRANSMISSION, ORDER BY THE METER
999
FITTING LINE CONNECTION
999
GLAND LINE CONNECTION
999
UNION NUT LINE CONNECTION
