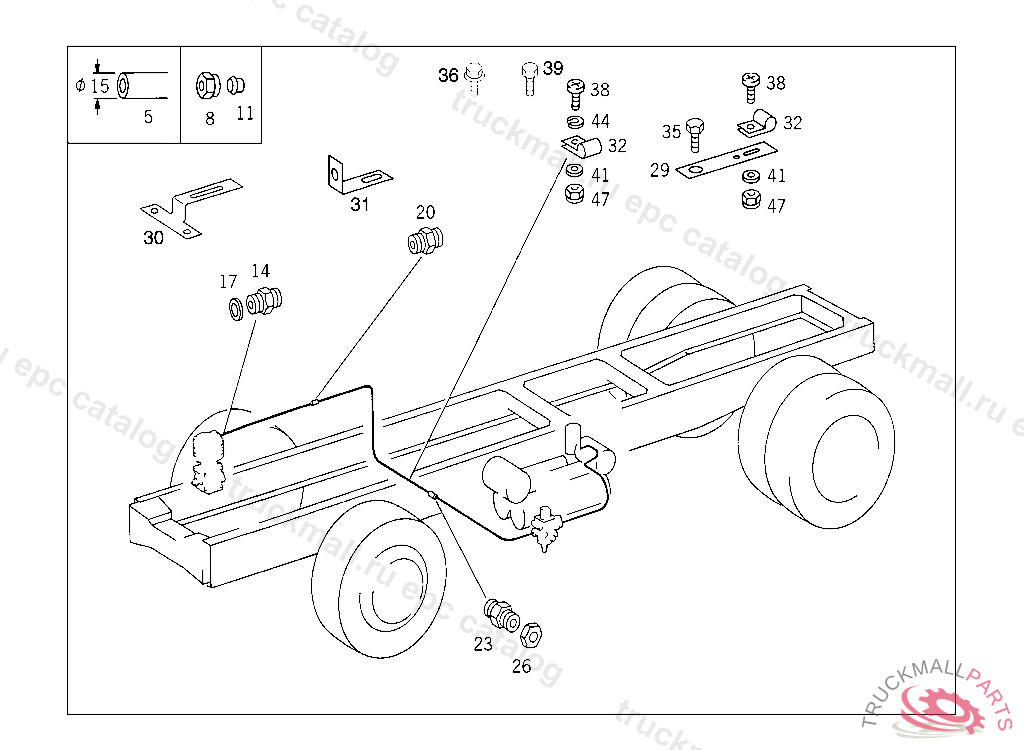

Поз.
Артикул
Описание
5
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
14
FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20"
17
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
20
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
23
BULKHEAD FITTING THROUGH SIDE MEMBER
26
NUT CHECK VALVE TO AIR RESERVOIR
29
BRACKET LINE MOUNTING
30
BRACKET AIR-COMPRESSOR-TO-PRESSURE-REGULATOR LINE MOUNTING,K 131522
30
BRACKET , Replaced By: A6534291840
31
BRACKET COMPRESSED AIR LINE TO ENGINE
32
CLAMP DELIVERY AND SUCTION LINES TO STEERING
32
CLAMP , Replaced By: A6739950001
35
SCREW BRACKET TO SUPPORT M 16X20
35
SCREW BRACKET TO SUPPORT M 16X16
36
SCREW AT FILTER BRACKET
38
SCREW CLAMP MOUNTING M 6X16
38
SCREW , Replaced By: N000000001146
39
SCREW OIL LINE TO CRANKCASE
39
SCREW PUMP TO BRACKET
39
SCREW , Replaced By: N304017006016
39
SCREW , Replaced By: N304017006026
39
SCREW , Replaced By: N304017006026
41
WASHER COMPRESSED AIR LINE TO BRACKET
41
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
44
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
47
NUT PUMP TO BRACKET
47
NUT , Replaced By: N913004006001
999
SPACER TUBE REFRIGERANT LINE TO CAB
999
BRACKET COMPRESSED AIR LINE TO ENGINE
