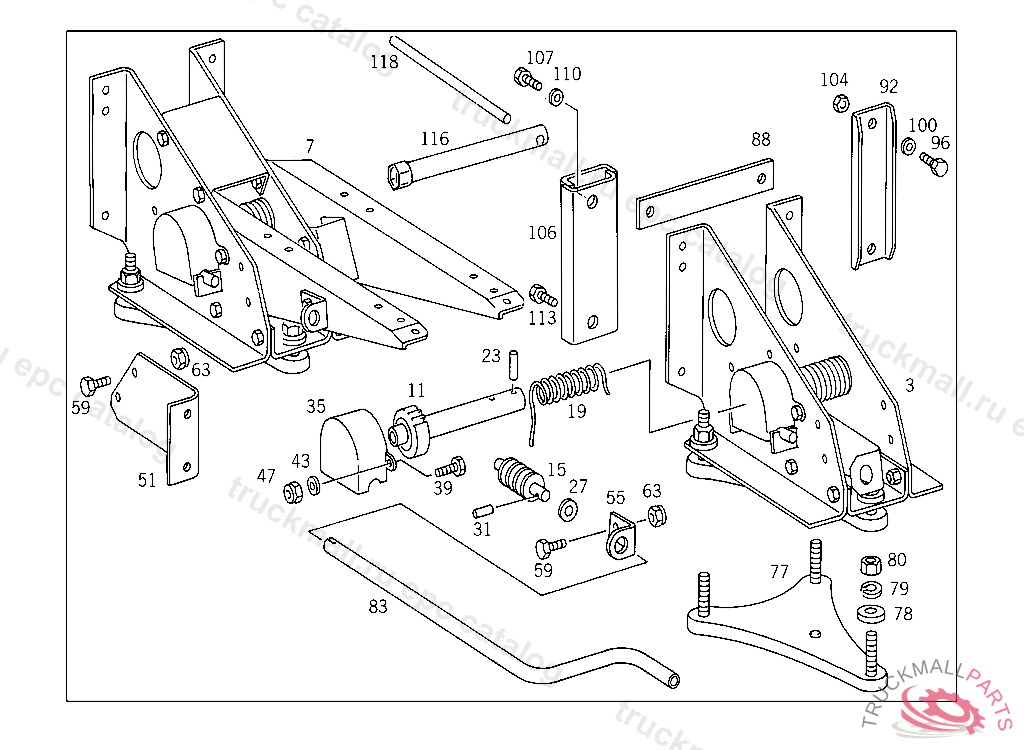

Поз.
Артикул
Описание
3
SPARE WHEEL HOIST , Replaced By: A6524001039, +001A3854000439, +003N000934018006, +003N007349019002, +003N912004018101
3
SPARE WHEEL CARRIER , Replaced By: A6524002739
3
BRACKET , Replaced By: A6524002039
3
BRACKET
7
BRACKET
7
BRACKET , Replaced By: A6524002139
7
SPARE WHEEL CARRIER , Replaced By: A6524002839
7
BRACKET , Replaced By: A6524001139, +001A3854000439, +003N000934018006, +003N007349019002, +003N912004018101
11
STOP GEAR
15
WORM
19
WIRE CABLE
23
CLAMPING SLEEVE WORM AND SHAFT TO BRACKET 6X26 MM
23
CLAMPING SLEEVE CAB LOCKING MECHANISM
27
WASHER WORM AND SHAFT TO BRACKET
31
CLAMPING SLEEVE , Replaced By: N308752008000
31
CLAMPING PIN BRACKET TO SUPPORT
35
COVERING SPARE WHEEL HOIST
39
SCREW , Replaced By: N304017006020
39
SCREW LICENSE PLATE TO BRACKET
39
SCREW LICENSE PLATE TO BRACKET
39
SCREW CAP TO CONOLE 6X28 MM
39
SCREW CAP TO CONOLE 6X28 MM
43
WASHER , Replaced By: N009021006208
43
WASHER COMPRESSED AIR LINE TO BRACKET
47
NUT , Replaced By: N913004006001
47
NUT PUMP TO BRACKET
51
BRACKET CRANK
55
BRACKET CRANK
59
SCREW END PIECE TO EXHAUST PIPE M 10X25
59
SCREW END PIECE TO EXHAUST PIPE M 10X25
59
SCREW , Replaced By: N304017008021
59
SCREW PIPE CLAMP
59
SCREW PIPE CLAMP
63
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
63
NUT , Replaced By: N913004008001
63
NUT STRAP TO BRACKET
63
NUT , Replaced By: N910113010000
77
BRACKET SPARE WHEEL
78
WASHER BRACKET TO SPARE WHEEL CARRIER
79
LOCK WASHER BELL HOUSING TO TRANSMISSION
80
NUT FRONT SPRINGS WITH TORSION BAR TO FRONT AXLE
83
CRANK SPARE WHEEL HOIST 340MM
83
CRANK , Replaced By: A6504030045
88
BASE BLOCK CROSS MEMBER TO FRAME
88
BASE BLOCK CROSS MEMBER TO FRAME
92
BASE BLOCK FIXTURE TO FRAME
96
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
96
SCREW , Replaced By: N308676014020
96
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
96
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
100
WASHER , Replaced By: N000125015019
100
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
100
SPACER WASHER FIXTURE TO FRAME
104
NUT , Replaced By: N910113014001
104
NUT BRACKET TO SIDE MEMBER
106
INTERMEDIATE PIECE SPARE WHEEL CARRIER CONSOLE TO FRAME
107
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
110
WASHER , Replaced By: N000125015019
110
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
113
SCREW , Replaced By: N308676012012
113
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
116
SOCKET WRENCH DISC WHEEL TO SUPPORT
118
TURN HANDLE DISC WHEEL TO SUPPORT
999
SCREW BRACKET TO CAB CONSOLE,K 035197
999
SUPPORT
