Поз.
Артикул
Описание

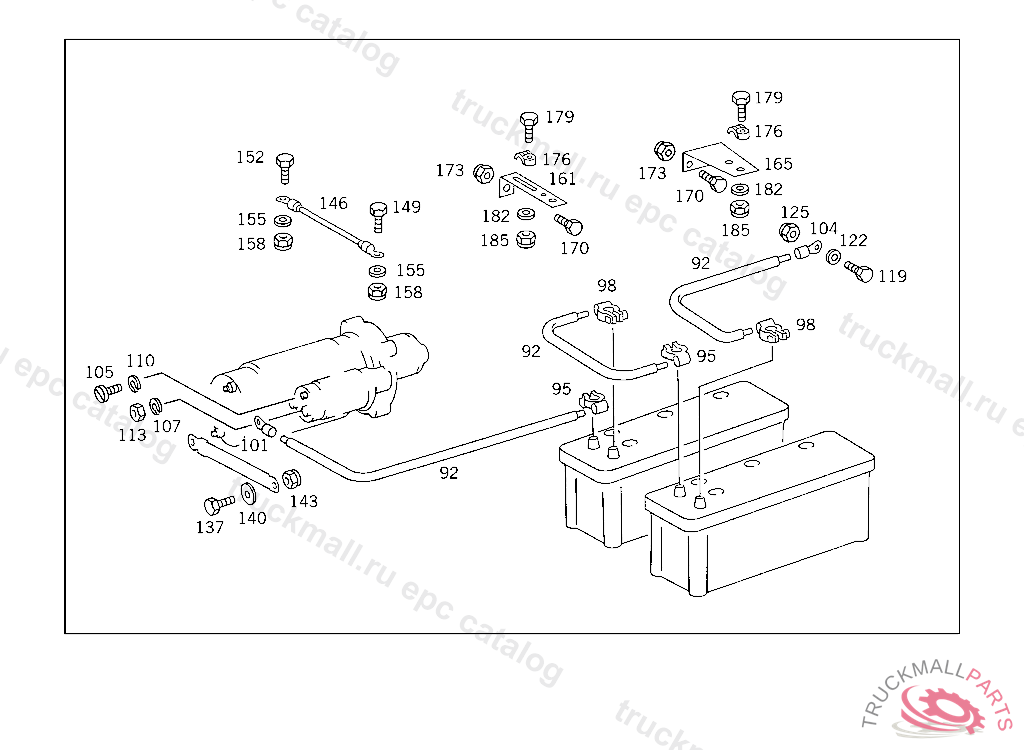

92
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR 70 MM2, ORDER BY THE METER
95
SOLDERING TERMINAL BATTERY POS. POLE 70 MM2
98
SOLDERING TERMINAL BATTERY NEG. POLE 70 MM2
101
CABLE SHOE BATTERY CABLE 12-70 MM
104
CABLE SHOE BATTERY CABLE 10-70 MM
105
SCREW TO PLUG THE FREE CONNECTIONS
107
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
110
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
113
NUT
113
NUT , Replaced By: N304035010001
119
SCREW BRACKET TO SIDE MEMBER
119
SCREW , Replaced By: N304017010002
122
WASHER , Replaced By: N000125010532
122
WASHER RADIATOR TO RUBBER MOUNTING
125
NUT , Replaced By: N910113010000
125
NUT STRAP TO BRACKET
137
SCREW REAR EXHAUST PIPE TO MUFFLER
140
WASHER BRACKET TO COVERING
140
WASHER RADIATOR TO RUBBER MOUNTING
140
WASHER , Replaced By: N009021010209
140
WASHER , Replaced By: N000125010532
143
NUT , Replaced By: N910113010000
143
NUT STRAP TO BRACKET
146
NEG. CABLE FROM FRAME CROSS MEMBER TO CAB
146
NEG. CABLE , Replaced By: A6205402339
149
SCREW , Replaced By: N304017008034
149
SCREW BRACKET TO CROSS CONNECTION STRUT
152
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
152
SCREW , Replaced By: N304017008016
155
WASHER , Replaced By: N000125008443
155
WASHER EXHAUST MUFFLER TO STRAP
158
NUT , Replaced By: N913004008001
158
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
161
BRACKET LINE MOUNTING
165
BRACKET , Replaced By: A6515450140
165
BRACKET BATTERY CABLE TO ENGINE MOUNTING
170
SCREW BRACKET TO CROSS CONNECTION STRUT
170
SCREW , Replaced By: N304017008034
173
NUT , Replaced By: N913004008001
173
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
176
CLAMP BATTERY CABLE TO FRAME SIDE MEMBER NEAR TRANSMISSION
179
SCREW , Replaced By: N304017006026
182
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
182
WASHER COMPRESSED AIR LINE TO BRACKET
185
NUT , Replaced By: N913004006001
185
NUT PUMP TO BRACKET
999
BLIND CAPTO A 004 541 48 01
