Поз.
Артикул
Описание

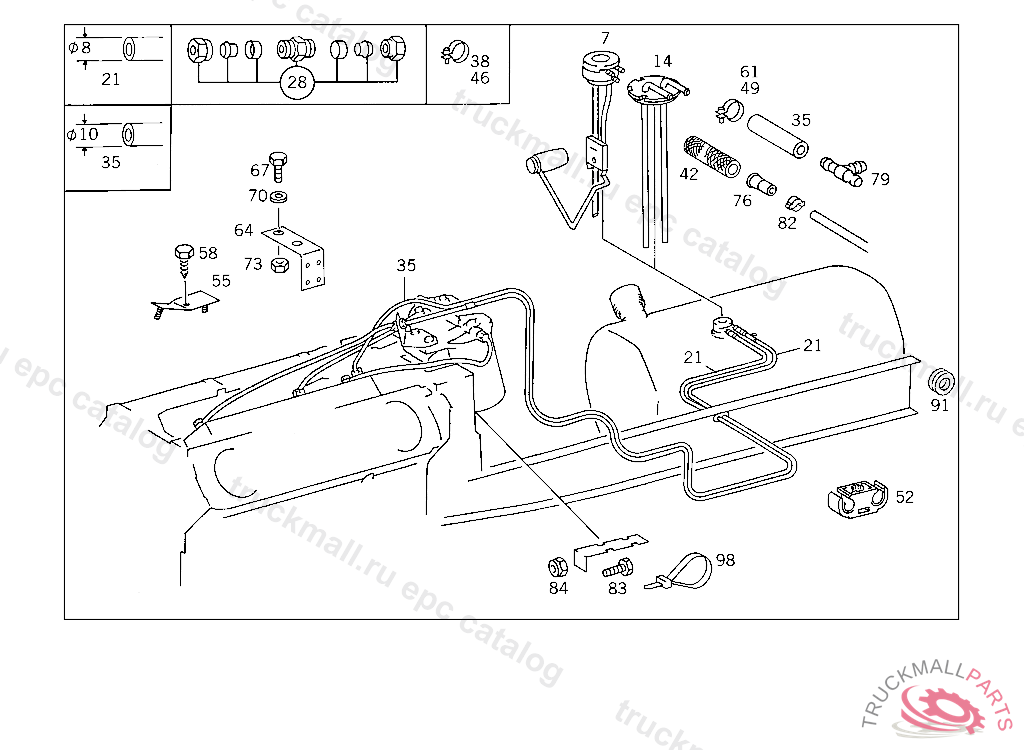

7
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
7
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
7
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
7
SENDER UNIT FUEL GAUGE, UP TO IDENT NO. K 169122, FROM IDENT NO. SEE STANDARD VERSION
14
COVERING FUEL TANK
21
PLASTIC PIPE AERATION, ORDER BY THE METER
28
FITTING (PARTS KIT),LINE RUPTURE
35
HOSE LEAK LINE, ORDER BY THE METER
38
CLAMP LINE MOUNTING
42
HOSE LEAK LINE
46
CLAMP RISING PIPE,5 4734955 909351
49
CLAMP LINE MOUNTING
52
BRACKET LINE MOUNTING,5 473495
55
BRACKET , NOT USED
58
SHEET METAL SCREW , NOT USED
61
HOSE CLAMP FUEL LINE TO SENDER UNIT
61
CLAMP , Replaced By: A0059972790
64
BRACKET LINE MOUNTING,5 473495K 023789
67
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
70
WASHER , Replaced By: N000125010532
70
WASHER RADIATOR TO RUBBER MOUNTING
73
NUT STRAP TO BRACKET
73
NUT , Replaced By: N910113010000
76
CONNECTOR FEED & RETURN
79
T-FITTING RETURN LINE
82
LOOM TIE LINE MOUNTING
83
SCREW AT FILTER BRACKET
84
NUT AT FILTER BRACKET
91
GROMMET LINE PASSAGE AT SIDE MEMBER 24 MM,5 473494
91
GROMMET FUEL LINE THRU FRAME SIDE MEMBER
98
LOOM TIE LINE MOUNTING
98
LOOM TIE LINE MOUNTING 280 MM
999
CONNECTOR FUEL LINE TO TANK
999
WASHER , Replaced By: N009021006208
999
WASHER COMPRESSED AIR LINE TO BRACKET
