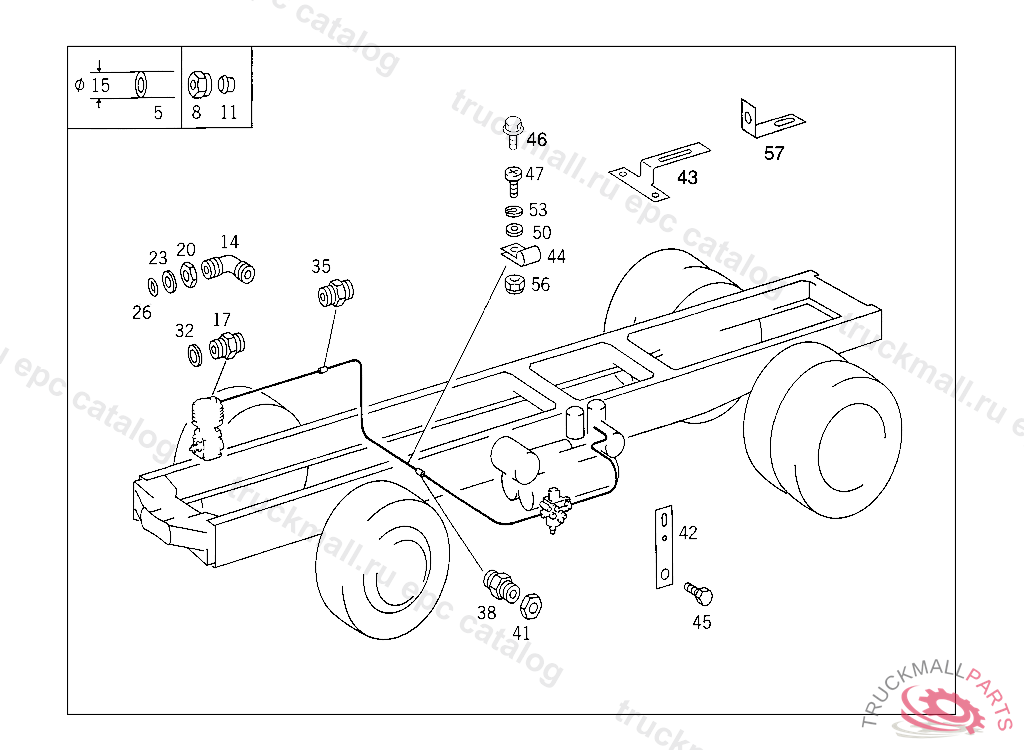

Поз.
Артикул
Описание
5
LINE AIR COMPRESSOR,PRESSURE REGULATOR, DEHYDRATOR 15X1.5 MM, LENGTH AVAILABLE: 3000 MM
8
UNION NUT LINE CONNECTION
11
GLAND LINE CONNECTION
14
ELBOW FITTING , Replaced By: A0039901671
14
ELBOW FITTING ENGINE AIR COMPRESSOR,CONNECTION: "20", Replaced By: A6209900071
20
NUT SUCTION LINE TO OIL PUMP
23
THRUST RING SUCTION LINE TO OIL PUMP
26
SEAL RING LINE CONNECTION
35
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
38
BULKHEAD FITTING THROUGH SIDE MEMBER
41
NUT CHECK VALVE TO AIR RESERVOIR
44
CLAMP DELIVERY AND SUCTION LINES TO STEERING
44
CLAMP , Replaced By: A6739950001
47
SCREW , Replaced By: N000000001146
47
SCREW CLAMP TO BRACKET M 6X14
47
SCREW CLAMP MOUNTING M 6X16
50
WASHER COMPRESSED AIR LINE TO BRACKET
50
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
53
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
56
NUT PUMP TO BRACKET
56
NUT , Replaced By: N913004006001
