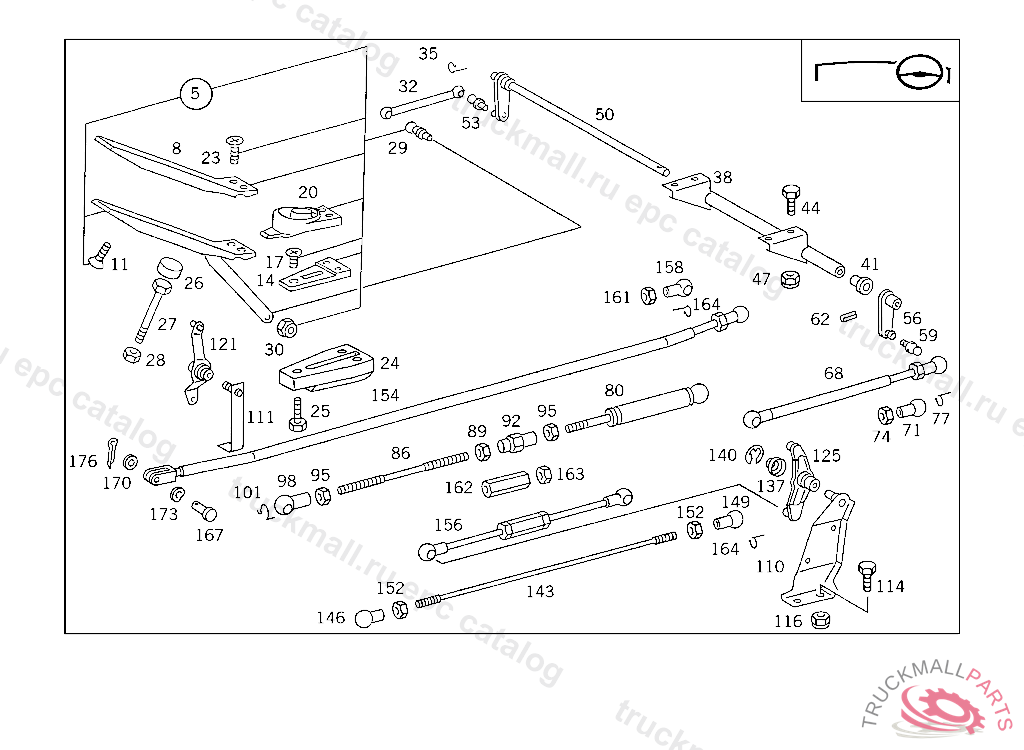

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
24
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
25
SCREW GUIDE RAIL RETROFIT M 6X35, BORE THREADED HOLES IN CAB FLOOR TO 6.5MM
26
STOP ACCELERATOR PEDAL
27
SCREW VALVE TO BRACKET, Replaced By: N304014008002
27
SCREW VALVE TO BRACKET
28
NUT
29
BALL PIVOT LOAD SENSOR
30
NUT PUMP TO BRACKET
30
NUT , Replaced By: N913004006001
32
BALL SOCKET ROD TO ACCELERATOR PEDAL
35
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
38
BEARING TUBE CONTROL SHAFT
41
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
44
SCREW , Replaced By: N304017008016
44
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
47
NUT , Replaced By: N913004008001
47
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
50
SHAFT (CONTROL SHAFT)
53
BALL PIVOT
56
LEVER (CONTROL LEVER)
59
BALL PIVOT
62
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
62
CLAMPING SLEEVE , Replaced By: N308752004001
80
ROD , Replaced By: A6583001715
80
ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING
86
PULL ROD FROM ACCELERATOR PEDAL TO CONTROL SHAFT BEARING, TO BE ADAPTED DURING ASSEMBLY
86
PULL ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER 400 MM, TO BE ADAPTED DURING ASSEMBLY
89
NUT L.H. THREAD
92
TURNBUCKLE TURNBUCKLE
95
NUT BALL PIVOT TO LEVER
98
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
101
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
111
BEARING BRACKET INTERMEDIATE LEVER
116
NUT STRAP TO BRACKET
116
NUT , Replaced By: N910113010000
121
LEVER (INTERMEDIATE LEVER)
121
LEVER CONTROL, TO BE ADAPTED DURING ASSEMBLY
137
COVERING INTERMEDIATE BEARING
140
LOCK PLATE INTERMEDIATE BEARING
143
PULL ROD FROM INTERMEDIATE LEVER TO ENGINE CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
146
BALL SOCKET ROD TO BALL PIVOT
149
BALL SOCKET ROD TO BALL PIVOT
152
NUT
154
ROD FROM INTERMEDIATE LEVER TO ENGINE
154
ROD FROM INTERMEDIATE LEVER TO ENGINE
158
BALL SOCKET ROD TO BALL PIVOT
161
NUT
164
SECURING CLIP. CIRCLIP
167
PIN ROD TO LEVER
170
WASHER BRACKET TO CROSS MEMBER
173
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
173
SPRING WASHER , Replaced By: N000137008212
176
COTTER PIN PULL ROD
