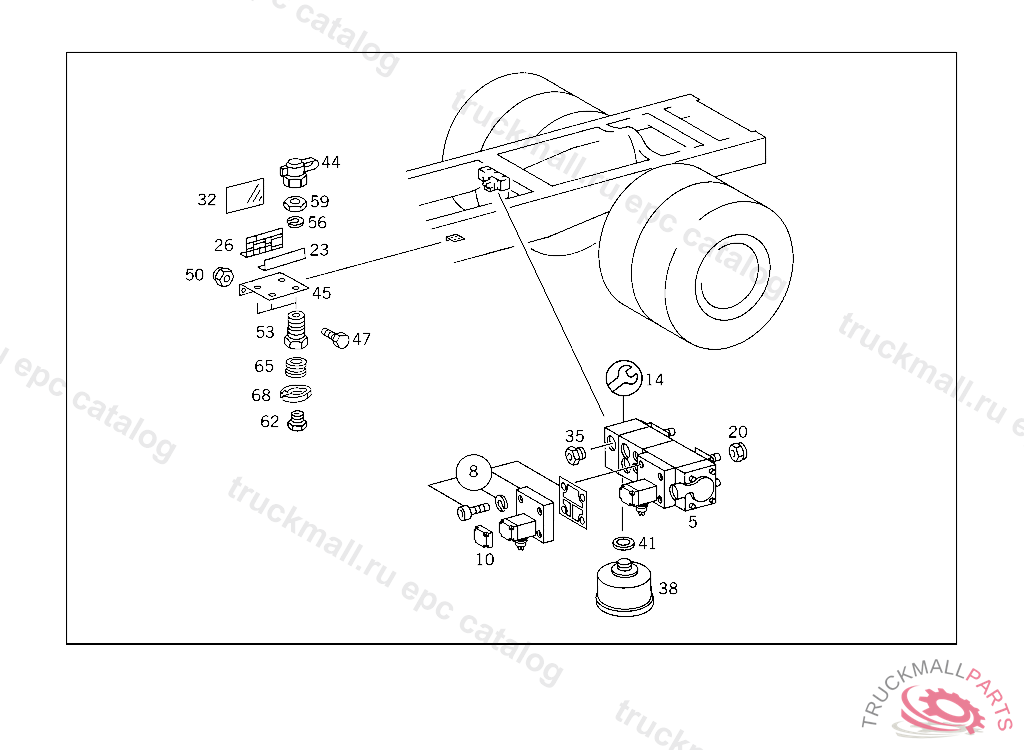

Поз.
Артикул
Описание
5
VALVE (SHIFT VALVE) GRAU, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
VALVE (SHIFT VALVE) KNORR
8
VALVE (VALVE SOLENOID) GRAU,5 760167
8
VALVE ,5 760167, Replaced By: A0025400897
8
VALVE , Replaced By: A0025400197
10
COVERGRAU,5 760167
14
REPAIR KIT CONTROL VALVE GRAU
14
VALVE CONTROL VALVE "GRAU",5 760167
20
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
20
NUT , Replaced By: N913004008001
23
GUIDE SIGN AIR SPRING BELLOWS,LEFT AND RIGHT
26
GUIDE SIGN SUPPLY
32
ADHESIVE FOIL GUIDE SIGN
35
SCREW. UNION SCREW LINE CONNECTION
35
SCREW. UNION SCREW LINE CONNECTION
35
SCREW. UNION SCREW , Replaced By: A0009973734
38
MUFFLER TRAILER CONTROL VALVE
38
MUFFLER , Replaced By: A0004302370
41
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
44
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
44
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
44
TEST CONNECTION
44
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
45
BRACKET TEST CONNECTION, TO BE ADAPTED DURING ASSEMBLY
45
BRACKET ,5 760167 TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6523280840
47
SCREW , Replaced By: N304017008021
47
SCREW , Replaced By: N304017008034
47
SCREW PIPE CLAMP
47
SCREW BRACKET TO CROSS CONNECTION STRUT
50
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
50
NUT , Replaced By: N913004008001
53
ADAPTER FITTING TEST CONNECTION
56
LOCK WASHER FITTING TO BRACKET
59
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
62
SCREW. UNION SCREW LINE CONNECTION
62
SCREW. UNION SCREW , Replaced By: A0009973734
65
SEAL RING , Replaced By: A0009940747
65
LOCK RING LINE CONNECTION
68
LOCK LINE CONNECTION
68
LOCK , Replaced By: A0009945448
999
VALVE CONTROL VALVE GRAU
