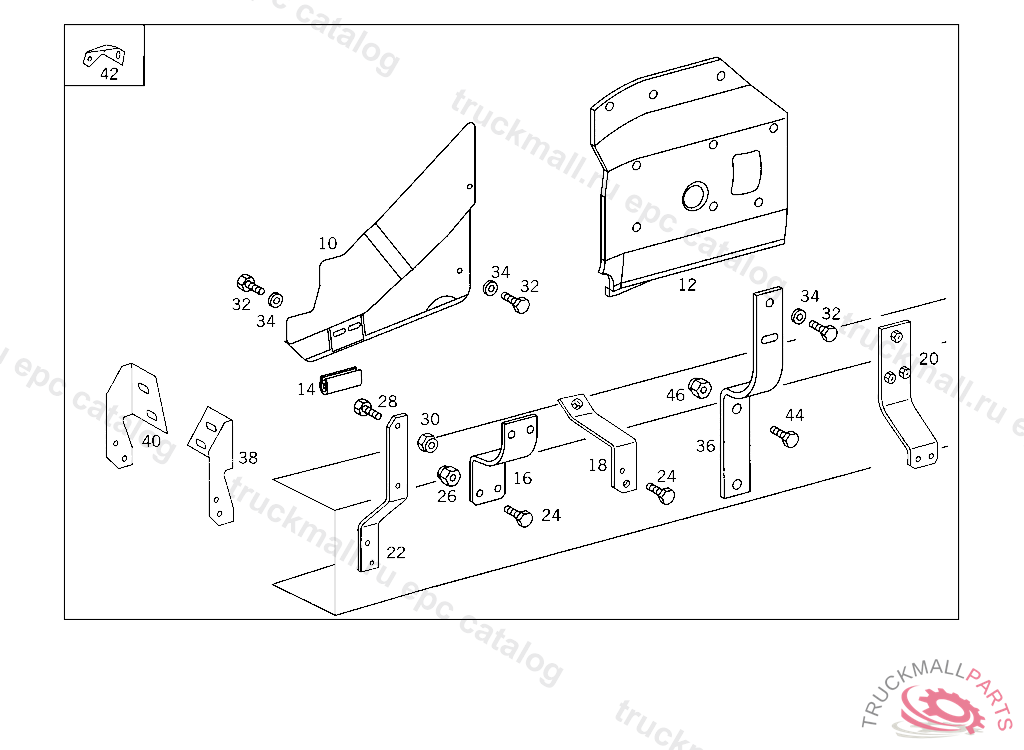

Поз.
Артикул
Описание
10
ANTINOISE CAPSULE RIGHT FRONT
10
ANTINOISE CAPSULE RIGHT FRONT
10
ANTINOISE CAPSULE RIGHT FRONT
10
ANTINOISE CAPSULE LEFT FRONT
10
ANTINOISE CAPSULE RIGHT FRONT
10
ANTINOISE CAPSULE LEFT FRONT
10
ANTINOISE CAPSULE RIGHT FRONT
12
ANTINOISE CAPSULE LEFT CENTRAL
12
ANTINOISE CAPSULE LEFT CENTRAL
12
ANTINOISE CAPSULE RIGHT CENTRAL
12
ANTINOISE CAPSULE LEFT CENTRAL
12
ANTINOISE CAPSULE RIGHT CENTRAL
12
ANTINOISE CAPSULE LEFT CENTRAL
12
ANTINOISE CAPSULE RIGHT CENTRAL
12
ANTINOISE CAPSULE LEFT CENTRAL
12
ANTINOISE CAPSULE RIGHT CENTRAL
14
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
16
BRACKET ANTINOISE CAPSULE
18
BRACKET ANTINOISE CAPSULE
20
BRACKET ANTINOISE CAPSULE
22
BRACKET ANTINOISE CAPSULE,K 438353
24
SCREW BRACKET TO BRACKET
24
SCREW BRACKET TO CROSS CONNECTION STRUT
24
SCREW , Replaced By: N910142008001
24
SCREW , Replaced By: N304017008034
26
NUT , Replaced By: N913004008001
26
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
26
NUT BRACKET TO BRACKET
28
SCREW BRACKET TO CONSOLE
28
SCREW , Replaced By: N304017010043
30
NUT , Replaced By: N910113010000
30
NUT STRAP TO BRACKET
32
SCREW PIPE CLAMP
32
SCREW , Replaced By: N304017008021
32
SCREW , Replaced By: N304017008016
32
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
34
WASHER EXHAUST MUFFLER TO STRAP
34
WASHER , Replaced By: N000125008443
34
WASHER , Replaced By: N009021008213
34
WASHER BRACKET TO LEFT SIDE MEMBER
36
BRACKET LEFT FRONT ANTINOISE CAPSULE
36
BRACKET ANTINOISE CAPSULE
36
BRACKET ANTINOISE CAPSULE TO BRACKET
36
BRACKET ANTINOISE CAPSULE TO BRACKET
36
BRACKET RIGHT FRONT ANTINOISE CAPSULE
38
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.K 109856, Replaced By: A6525211840
38
BRACKET LEFT
40
BRACKET RIGHT
40
BRACKET , EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.K 109856, Replaced By: A6525211940
42
BRACKET LEFT
42
BRACKET RIGHT
44
SCREW BRACKET TO CROSS CONNECTION STRUT
44
SCREW CONSOLE TO SIDE MEMBER
44
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
44
SCREW , Replaced By: N304017008034
44
SCREW , Replaced By: N308676012012
46
NUT , Replaced By: N913004008001
46
NUT SUPPORT TO SIDE MEMBER
46
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
BRACKET RIGHT ANTINOISE CAPSULE
999
BRACKET ANTINOISE CAPSULE,LEFT
999
BRACKET ANTINOISE CAPSULE, TO BE ADAPTED DURING ASSEMBLY
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008016
