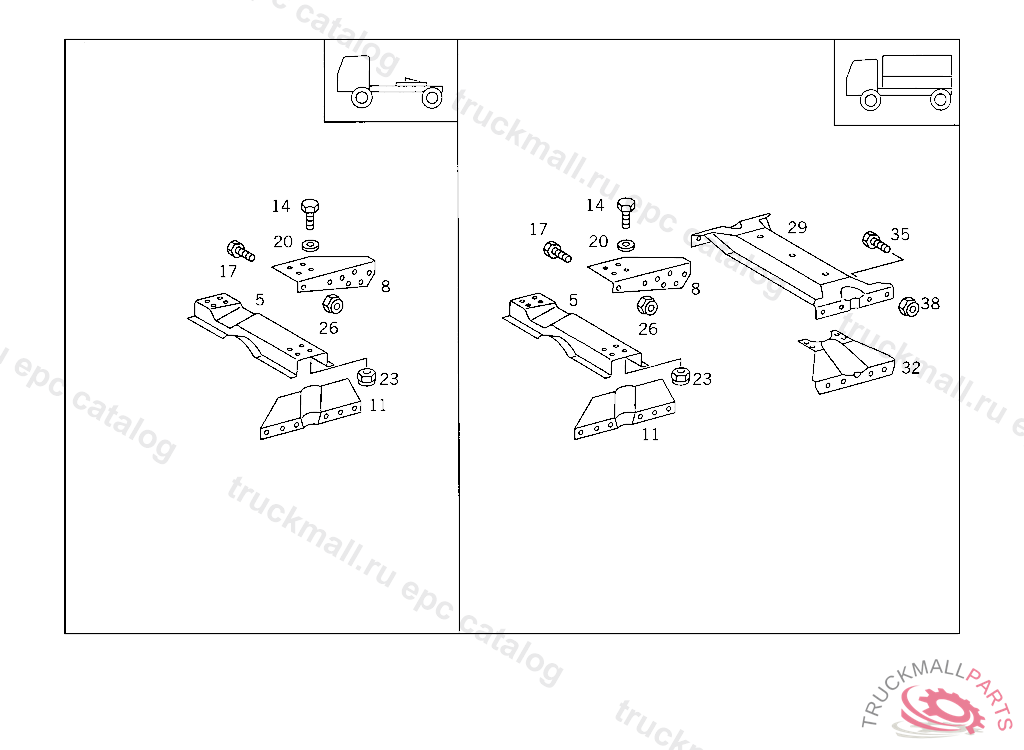

1422 LS,1424 LS - 651.531 - 31 FRAME
Поз.
Артикул
Описание
5
CROSS MEMBER BATTERY/APPARATUS SUPPORT NO.3, TO BE ADAPTED DURING ASSEMBLY
8
GUSSET PLATE TOP RIGHT, TO BE ADAPTED DURING ASSEMBLY
11
STRUT BOTTOM RIGHT
11
STRUT BOTTOM LEFT
14
SCREW STRUT TO CONSOLE
17
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
20
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
23
NUT STRAP TO SUPPORT
26
NUT BRACKET TO SIDE MEMBER
26
NUT , Replaced By: N910113014001
999
GUSSET PLATE TOP LEFT, TO BE ADAPTED DURING ASSEMBLY
