Mercedes N304032008005 - ГАЙКА М8

1424 LS,1427 LS,1431 LS 651.537

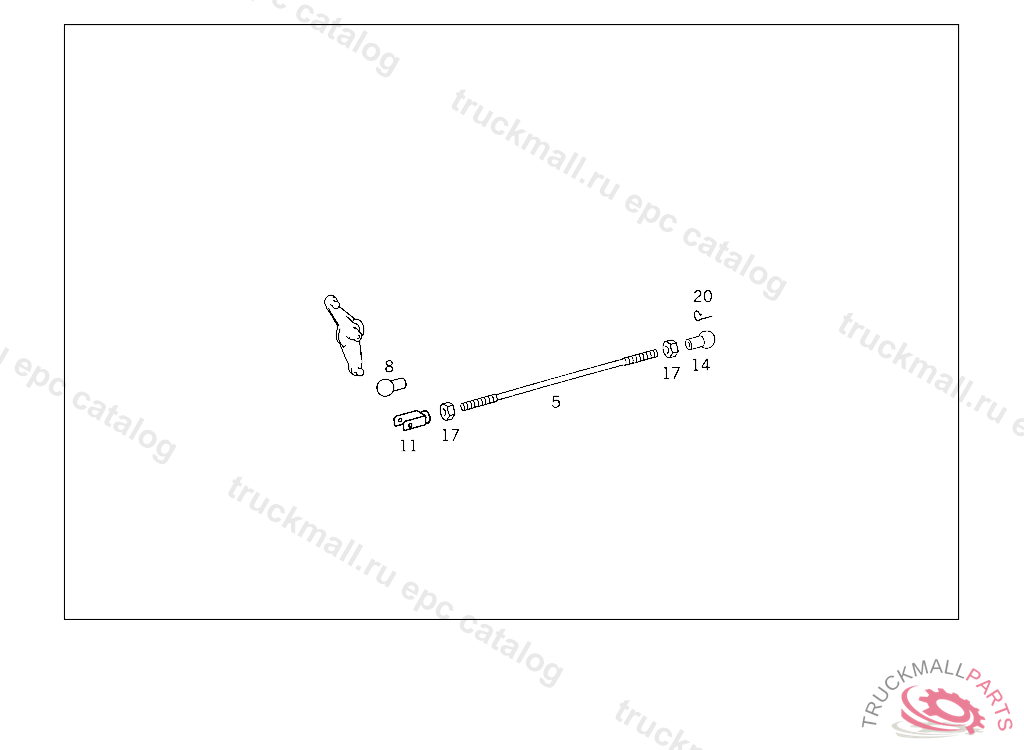

30 CONTROL - 001 CONTROL LINKAGE

Поз.
Артикул
Описание
5
N900331008421
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
5
N900331008423
PULL ROD FROM INTERMEDIATE LEVER TO ENGINE CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
8
N071805013203
BALL SOCKET ROD TO BALL PIVOT
11
N071752008003
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
14
A4069910022
BALL SOCKET ROD TO BALL PIVOT
17
A0009907950
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
17
N304032008005
NUT FROM CONTROL LEVER TO INTERMEDIATE SHAFT AT ENGINE
20
N071805013402
SECURING CLIP. CIRCLIP
999
A3812920033
NUT TURNBUCKLE
999
A6173000615
ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT
999
N000934008010
NUT , Replaced By: N304032008006
999
N000934008035
NUT INTERMEDIATE SPEED STOP
999
N304032008006
NUT
