Поз.
Артикул
Описание

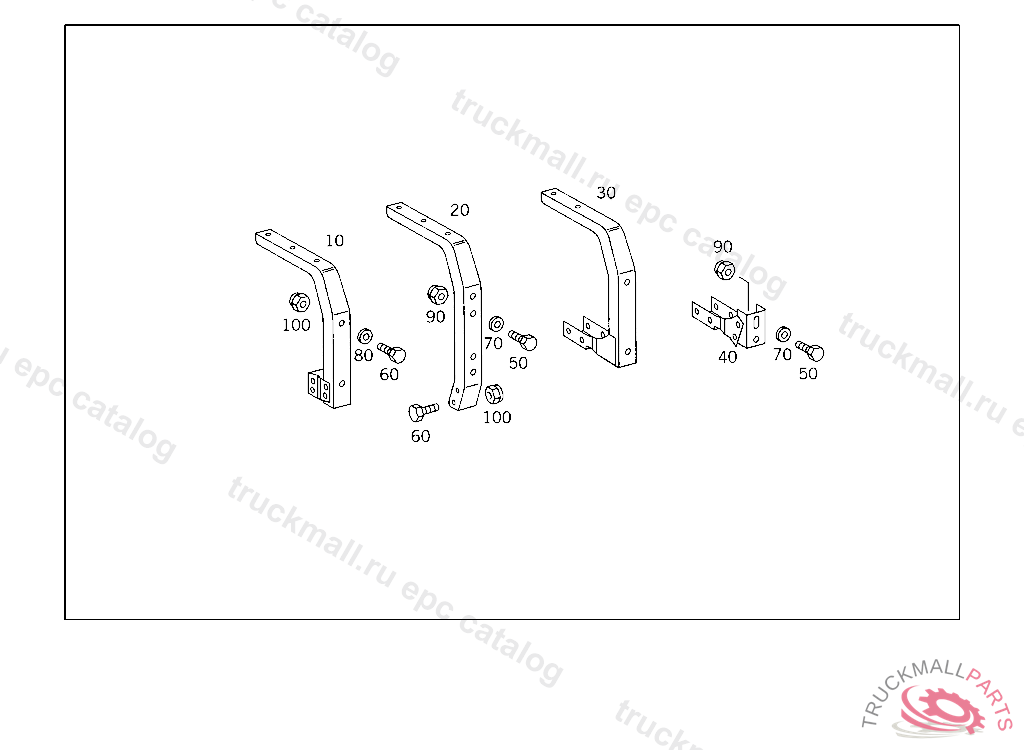

10
ANGLE UNDERRUN PROTECTION AND BRACKET TO FRAME
20
ANGLE UNDERRUN PROTECTION AND BRACKET TO FRAME
20
ANGLE UNDERRUN PROTECTION AND BRACKET TO FRAME
20
ANGLE UNDERRUN PROTECTION,RIGHT
20
ANGLE UNDERRUN PROTECTION,RIGHT
20
ANGLE UNDERRUN PROTECTION,RIGHT
20
ANGLE UNDERRUN PROTECTION,LEFT
20
ANGLE UNDERRUN PROTECTION,LEFT
30
ANGLE UNDERRUN PROTECTION
30
ANGLE UNDERRUN PROTECTION
30
ANGLE UNDERRUN PROTECTION,K 117140
40
BRACKET UNDERRUN PROTECTION,K 117139
50
SCREW , Replaced By: N308676014020
50
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
50
SCREW BRACKET TO CAB CONSOLE,K 035197
50
SCREW BRACKET TO CAB CONSOLE,K 035197
50
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
60
SCREW EXHAUST PIPE TO BRACKET
60
SCREW REAR EXHAUST PIPE TO MUFFLER
70
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
70
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
70
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
70
WASHER CROSS MEMBER TO REINFORCEMENT
80
WASHER , Replaced By: N006902011100
80
WASHER , Replaced By: N006902011102
80
WASHER UNDERRUN PROTECTION AND BRACKET TO FRAME
90
NUT , Replaced By: N910113014001
90
NUT BRACKET TO SIDE MEMBER
90
NUT SUPPORT TO SIDE MEMBER
100
NUT , Replaced By: N910113010000
100
NUT STRAP TO BRACKET
