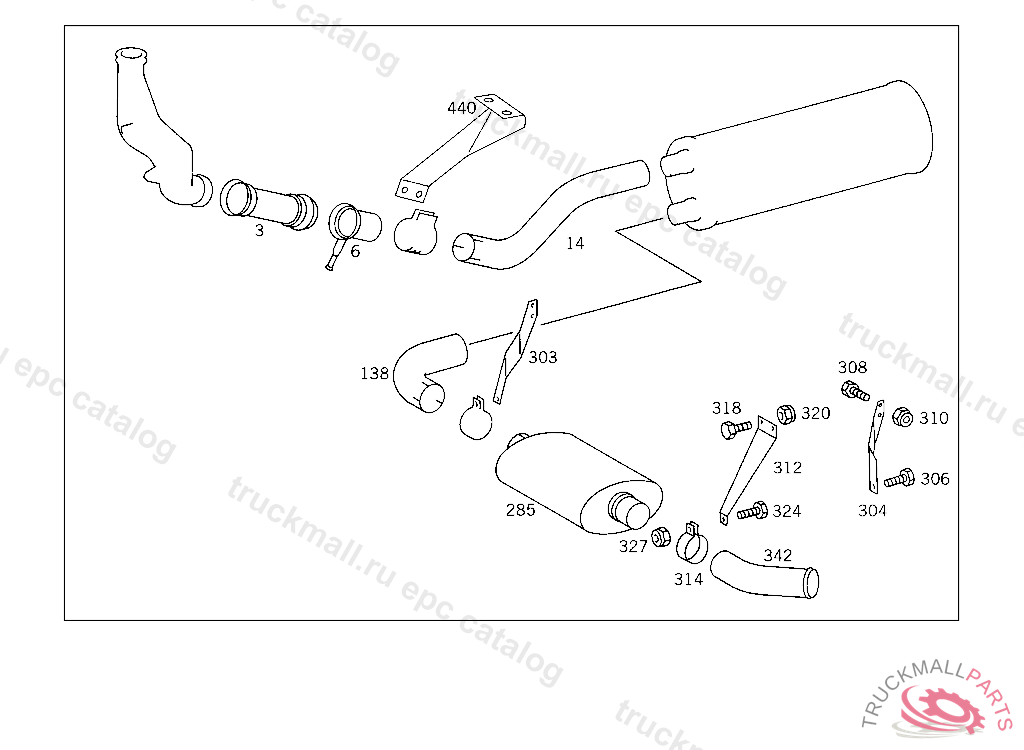

Поз.
Артикул
Описание
3
FLEXIBLE METAL TUBE FRONT
3
FLEXIBLE METAL TUBE CONNECTOR
6
CONNECTOR EXHAUST LINE FLEXIBLE METAL TUBE
6
CONNECTOR EXHAUST LINE FLEXIBLE METAL TUBE
14
EXHAUST PIPE FRONT,REAR PART
14
EXHAUST PIPE FRONT,REAR PART,5 953232
14
EXHAUST PIPE FRONT,REAR PART
138
CONNECTOR ,5 953232
138
CONNECTOR
138
CONNECTOR EXHAUST PIPE TO MUFFLER,5 953232
138
CONNECTOR ,K 035197
285
EXHAUST MUFFLER (POSTERIOR MUFFLER)
303
BRACKET TAIL PIPE TO SIDE MEMBER
304
BRACKET EXHAUST PIPE TO SIDE MEMBER,5 953233K 035196
304
BRACKET EXHAUST PIPE TO SIDE MEMBER,K 035197
304
BRACKET TAIL PIPE TO APPARATUS SUPPORT,5 953233K 027550
306
SCREW
306
SCREW , Replaced By: N304017010051
308
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
308
SCREW END PIECE TO EXHAUST PIPE M 10X25
308
SCREW BRACKET TO SIDE MEMBER
308
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
308
SCREW , Replaced By: N304017010002
308
SCREW , Replaced By: N308676014020
310
NUT , Replaced By: N910113010000
310
NUT , Replaced By: N910113014001
310
NUT BRACKET TO SIDE MEMBER
310
NUT STRAP TO BRACKET
312
BRACKET TAIL PIPE TO APPARATUS SUPPORT
312
BRACKET EXHAUST MUFFLER, TO BE ADAPTED DURING ASSEMBLY
312
BRACKET TAIL PIPE TO APPARATUS SUPPORT
314
CLAMP TAIL PIPE TO APPARATUS SUPPORT
318
SCREW EXHAUST PIPE TO SIDE MEMBER
318
SCREW END PIECE TO EXHAUST PIPE M 10X25
318
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
318
SCREW BRACKET TO SIDE MEMBER
318
SCREW , Replaced By: N304017010002
320
NUT , Replaced By: N910113010000
320
NUT STRAP TO BRACKET
320
NUT EXHAUST PIPE TO SIDE MEMBER
324
SCREW END PIECE TO EXHAUST PIPE M 10X25
324
SCREW EXHAUST PIPE TO SIDE MEMBER
324
SCREW
324
SCREW , Replaced By: N304017010051
324
SCREW , Replaced By: N304017010002
324
SCREW BRACKET TO SIDE MEMBER
327
NUT , Replaced By: N910113010000
327
NUT STRAP TO BRACKET
327
NUT EXHAUST PIPE TO SIDE MEMBER
342
EXHAUST PIPE ,5 953233
342
END PIECE ,5 765950
342
END PIECE ,5 765949
440
BRACKET REAR EXHAUST PIPE
440
BRACKET , Replaced By: A3464910441
999
NUT BRACKET TO BRACKET
999
RUBBER BUFFER BRACKET TO SUPPORT
999
SCREW , Replaced By: N910142008001
999
SUPPORT TAIL PIPE TO SIDE MEMBER
999
SUPPORT EXHAUST PIPE
999
DAMPING PAD PARTICLE FILTER
999
SUPPORT REAR EXHAUST PIPE TO FRAME,4 613840
999
PROTECTIVE PLATE
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
CLAMP EXHAUST MUFFLER TO BRACKET,FRONT AND REAR
999
BRACKET TAIL PIPE
999
SUPPORT TAIL PIPE
999
SUPPORT TAIL PIPE
999
END PIECE , Replaced By: A6524926714
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE REAR EXHAUST PIPE,5 298310
999
BRACKET EXHAUST MUFFLER TO SUPPORT
999
END PIECE
999
SUPPORT REAR EXHAUST MUFFLER
999
PROTECTIVE PLATE (HEAT SHIELD)
999
BRACKET EXHAUST MUFFLER TO SIDE MEMBER,5 543913
999
SUPPORT REAR EXHAUST MUFFLER
999
CLAMP EXHAUST PIPE TO SUPPORT
999
BRACKET EXHAUST MUFFLER TO SUPPORT,FRONT
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
SUPPORT EXHAUST PIPE
999
SUPPORT EXHAUST PIPE
999
CONNECTOR FROM EXHAUST MUFFLER TO TAIL PIPE
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE SHORT,EXHAUST MUFFLER,LEFT
999
END PIECE LONG,EXHAUST MUFFLER,LEFT
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT
999
BRACKET , Replaced By: A6174926341
999
END PIECE BEHIND CAB,UPWARD
999
BRACKET REAR EXHAUST MUFFLER TO SUPPORT
999
END PIECE
999
END PIECE
999
BRACKET EXHAUST PIPE TO SUPPORT
999
BRACKET EXHAUST PIPE TO SUPPORT
999
BRACKET EXHAUST PIPE TO SUPPORT
999
BRACKET TAIL PIPE
999
BRACKET , Replaced By: A6524921441
999
REAR EXHAUST PIPE TAIL PIPE,FRONT,5 468858
999
FLEXIBLE METAL TUBE CONNECTOR
999
SPACER TUBE , Replaced By: A3140720253
999
BRACKET COVERING
999
CLAMP EXHAUST PIPE TO BRACKET
999
BRACKET , Replaced By: A6205240140
999
STRAP , Replaced By: A6524900442
999
CLAMP HEAT SHIELD TO TAILPIPE
999
EXHAUST MUFFLER
999
EXHAUST MUFFLER
999
EXHAUST PIPE FRONT,REAR PART,5 564479
999
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
999
BRACKET (STRUT),FROM TAIL PIPE TO SIDE MEMBER
999
EXHAUST PIPE FRONT
999
BRACKET EXHAUST MUFFLER TO SIDE MEMBER
999
END PIECE LEFT
999
SUPPORT TAIL PIPE
999
END PIECE (TAIL PIPE)
999
END PIECE RIGHT
999
SUPPORT TAIL PIPE
999
END PIECE TAIL PIPE,FRONT,K 027551
999
END PIECE EXHAUST MUFFLER,LEFT REAR
999
END PIECE EXHAUST MUFFLER,RIGHT REAR
999
END PIECE (TAIL PIPE),5 597517
999
REAR EXHAUST PIPE LONG,EXHAUST MUFFLER,RIGHT
999
END PIECE (TAIL PIPE),5 564478
999
PROTECTIVE PLATE , NOT USED
999
BRACKET
999
END PIECE RIGHT
999
END PIECE LONG,EXHAUST MUFFLER,RIGHT,5 484828
999
END PIECE TAIL PIPE
999
END PIECE (TAIL PIPE)
999
END PIECE
999
END PIECE
999
END PIECE (TAIL PIPE),5 5975185 758825
999
CONNECTOR ,5 953233K 035196
999
END PIECE (TAIL PIPE)
999
BRACKET TAIL PIPE TO SIDE MEMBER,5 760772
999
BRACKET ,5 768419, Replaced By: A3464910441
999
BRACKET TAIL PIPE TO SIDE MEMBER
999
END PIECE BRACKET TO SPRING BRACKET AND TO CROSS MEMBER,5 953233
999
CLAMP REAR EXHAUST PIPE TO MUFFLER
999
REAR EXHAUST PIPE TAIL PIPE,FRONT
999
CLAMP EXHAUST PIPE
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
CLAMP , Replaced By: N071555090502
999
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
999
SCREW BRACKET TO BRACKET
