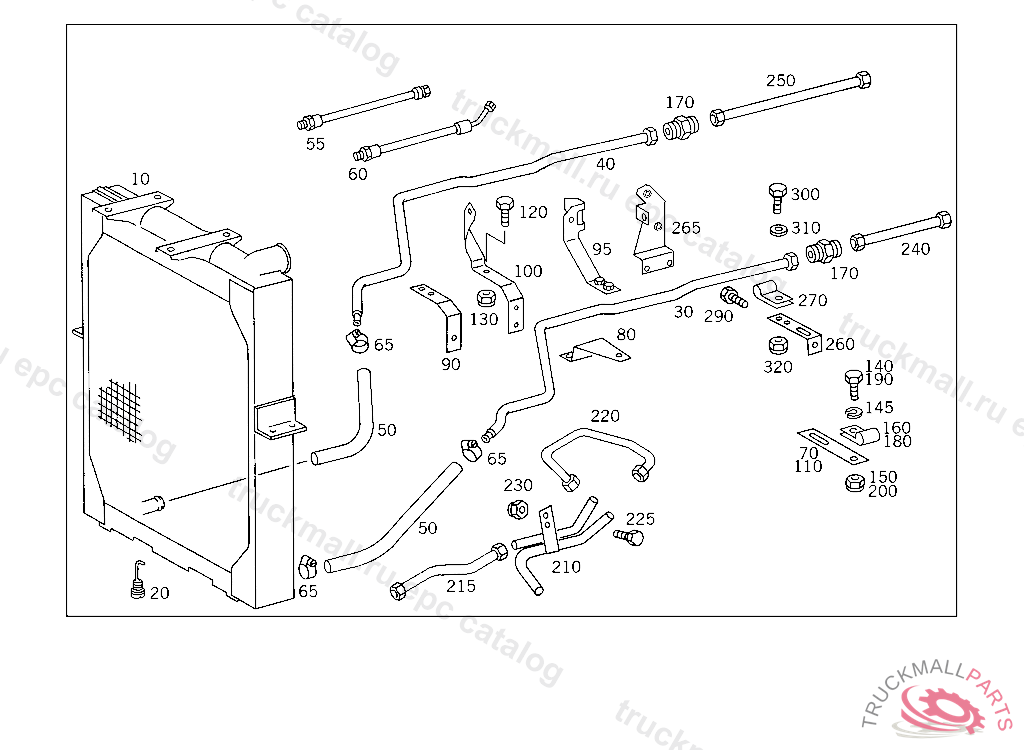

Поз.
Артикул
Описание
10
RADIATOR WITH SCREW FITTING
10
RADIATOR WATER
10
RADIATOR
10
RADIATOR WITH SCREW FITTING,5 501912
10
RADIATOR WITH SCREW FITTING,K 115008
10
RADIATOR ,K 115007
10
RADIATOR WITH SCREW FITTING
10
RADIATOR ,5 501911, Replaced By: A6505011201, +001A6552602262, +001A6552602985, +001A6552603085, +001A6559974182, +001A6559974682
10
RADIATOR ,5 501911, Replaced By: A6505011201, +001A6552602262, +001A6552602985, +001A6552603085, +001A6559974182, +001A6559974682
10
RADIATOR ,5 501911, Replaced By: A6505011201, +001A6552602262, +001A6552602985, +001A6552603085, +001A6559974182, +001A6559974682
10
RADIATOR , Replaced By: A6505010701
10
RADIATOR , Replaced By: A6525016301, +001A6552602785, +001A6552602885, +001A6559973782, +001A6559974582
10
RADIATOR , Replaced By: A6525016301, +001A6552602785, +001A6552602885, +001A6559973782, +001A6559974582
10
RADIATOR , Replaced By: A6525016501
10
RADIATOR , Replaced By: A6525016301, +001A6552602785, +001A6552602885, +001A6559973782, +001A6559974582
10
RADIATOR , Replaced By: A6525016301, +001A6552602785, +001A6552602885, +001A6559973782, +001A6559974582
10
RADIATOR , Replaced By: A6525016301, +001A6552602785, +001A6552602885, +001A6559973782, +001A6559974582
10
RADIATOR , FROM IDENT NO. 5 623090, SEE STANDARD MICROFICHE, Replaced By: A6525016601, +001A6552602262, +001A6552602985, +001A6552603085, +001A6559974182, +001A6559974682
10
RADIATOR , FROM IDENT NO. 5 623090, SEE STANDARD MICROFICHE, Replaced By: A6525016601, +001A6552602262, +001A6552602985, +001A6552603085, +001A6559974182, +001A6559974682
10
RADIATOR , FROM IDENT NO. 5 623090, SEE STANDARD MICROFICHE, Replaced By: A6525016601, +001A6552602262, +001A6552602985, +001A6552603085, +001A6559974182, +001A6559974682
10
RADIATOR , Replaced By: A6525014201
10
RADIATOR , Replaced By: A6525014201
10
RADIATOR , Replaced By: A6525016901
10
RADIATOR , Replaced By: A6525014901
10
RADIATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 752618, Replaced By: A6525012501
20
SCREW WATER DRAIN
30
PIPE FEED, OIL COOLER
30
OIL PIPE FEED, OIL COOLER,5 564482K 131865
30
OIL PIPE FEED, OIL COOLER
30
PIPE FEED, OIL COOLER,K 131866
40
PIPE FEED, OIL COOLER,5 564481
40
OIL PIPE FEED, FROM TRANSMISSION TO HOSE,5 948585
40
OIL PIPE FEED, OIL COOLER,K 131865
40
OIL PIPE FEED, FROM TRANSMISSION TO HOSE,5 948586K 131865
40
OIL PIPE RETURN, OIL COOLER,K 131865
40
PIPE FEED, FROM TRANSMISSION TO HOSE,K 131866
40
PIPE RETURN, OIL COOLER
40
PIPE FEED, FROM TRANSMISSION TO HOSE,5 564481
40
PIPE RETURN, OIL COOLER,5 564481
40
PIPE FEED, OIL COOLER,K 131866
40
PIPE RETURN, OIL COOLER,K 131866
40
PIPE RETURN, OIL COOLER,K 131866
40
PIPE FEED, OIL COOLER
40
PIPE FEED, FROM TRANSMISSION TO HOSE,K 131866
40
OIL PIPE RETURN, OIL COOLER,K 093236
40
OIL PIPE RETURN, OIL COOLER,K 131865
40
PIPE RETURN, OIL COOLER,K 131866
40
OIL PIPE RETURN, OIL COOLER,K 093237K 131865
40
OIL PIPE RETURN, OIL COOLER
40
OIL PIPE , Replaced By: A6522615183
40
PIPE RETURN, OIL COOLER,K 131866
40
OIL PIPE FEED, OIL COOLER,5 564482K 093236
40
OIL PIPE RETURN, OIL COOLER,5 564482K 131865
40
PIPE RETURN, OIL COOLER,K 131866
40
PIPE RETURN, OIL COOLER,5 564481
40
OIL PIPE FEED, OIL COOLER,K 093237K 131865
50
HOSE OIL COOLER CONNECTION,K 131865
50
HOSE OIL COOLER CONNECTION,K 131865
50
HOSE OIL COOLER CONNECTION 450 MM, TO BE ADAPTED DURING ASSEMBLYK 131865
50
HOSE RETURN, OIL COOLER,K 131866
50
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6559972482
50
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6559972582
50
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 968464, Replaced By: A6559972282
50
HOSE , Replaced By: A6559970582
50
HOSE , Replaced By: A6559970582
50
HOSE LINE CONNECTIONS 350 MM, TO BE ADAPTED DURING ASSEMBLY
55
HOSE FEED, OIL COOLER,K 131866
55
HOSE RETURN, OIL COOLER,K 131866
55
HOSE FEED, OIL COOLER,K 131866
55
HOSE RETURN, OIL COOLER,K 131866
55
HOSE FEED, OIL COOLER
55
HOSE FEED, OIL COOLER,K 131866
55
HOSE FEED, OIL COOLER,K 131866
60
HOSE RETURN, OIL COOLER,K 131866
60
HOSE LINE CONNECTIONS,K 131866
65
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
65
CLAMP HOSE TO FITTING AND TO OIL TANK
65
CLAMP LINE MOUNTING
70
BRACKET AT CROSS MEMBER
70
BRACKET , Replaced By: A6674710541
80
BRACKET OIL LINE TO OIL FILTER, TO BE ADAPTED DURING ASSEMBLY
90
BRACKET AT ENGINE, FROM IDENT NO. 5 623090, SEE STANDARD MICROFICHEK 131865
95
BRACKET AT ENGINE
100
BRACKET BELL HOUSING
100
BRACKET BELL HOUSING
100
BRACKET AT ENGINE
110
BRACKET OIL LINE TO ENGINE SUPPORT
110
ANGLE LINE MOUNTING
120
SCREW PIPE CLAMP
120
SCREW , Replaced By: N304017008021
130
NUT , Replaced By: N913004008001
130
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
140
SCREW LICENSE PLATE TO BRACKET
140
SCREW PUMP TO BRACKET
140
SCREW , Replaced By: N304017006016
140
SCREW , Replaced By: N304017006020
145
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
150
NUT PUMP TO BRACKET
150
NUT , Replaced By: N913004006001
160
CLAMP DELIVERY AND SUCTION LINES TO STEERING
160
CLAMP FEED LINE TO THERMOSTAT
170
CONNECTION FITTING LINE CONNECTIONS
170
FITTING LINE CONNECTIONS
170
CONNECTION FITTING , Replaced By: N003902018002
180
CLAMP , Replaced By: A3609950601
180
CLAMP FEED LINE TO THERMOSTAT
190
SCREW , Replaced By: N304017008021
190
SCREW , Replaced By: N304017008021
190
SCREW PIPE CLAMP
200
NUT , Replaced By: N913004008001
200
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
210
PIPE LINE CONNECTIONS,5 937046K 131865
210
PIPE LINE CONNECTIONS,5 937045
215
PIPE FEED, FROM TRANSMISSION TO HOSE,K 131866
215
PIPE FEED, FROM TRANSMISSION TO HOSE,K 131866
220
PIPE RETURN, FROM HOSE TO TRANSMISSION,K 131866
225
SCREW BRACKET TO FRAME SIDE MEMBER
230
NUT END PIECE TO EXHAUST PIPE
230
NUT STRAP TO BRACKET
230
NUT , Replaced By: N910113010000
240
PIPE FITTING TO TRANSMISSION
250
PIPE RETURN LINE TO TRANSMISSION
260
BRACKET LINE MOUNTING
265
BRACKET OIL LINE TO CROSS MEMBER,K 131866
270
CLAMP LINE MOUNTING
270
CLAMP FEED LINE TO THERMOSTAT
290
SCREW LICENSE PLATE TO BRACKET
290
SCREW , Replaced By: N304017006020
300
SCREW , Replaced By: N304017006016
300
SCREW PUMP TO BRACKET
310
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
310
WASHER COMPRESSED AIR LINE TO BRACKET
320
NUT , Replaced By: N913004006001
320
NUT PUMP TO BRACKET
999
RADIATOR , Replaced By: A6505011201
999
BRACKET AT ENGINE
999
BRACKET AT ENGINE
999
RADIATOR ,5 523342
999
RADIATOR , Replaced By: A6525014201
999
RADIATOR , Replaced By: A6525014501
999
RADIATOR
999
RADIATOR
999
STRAINER
999
STRAINER
