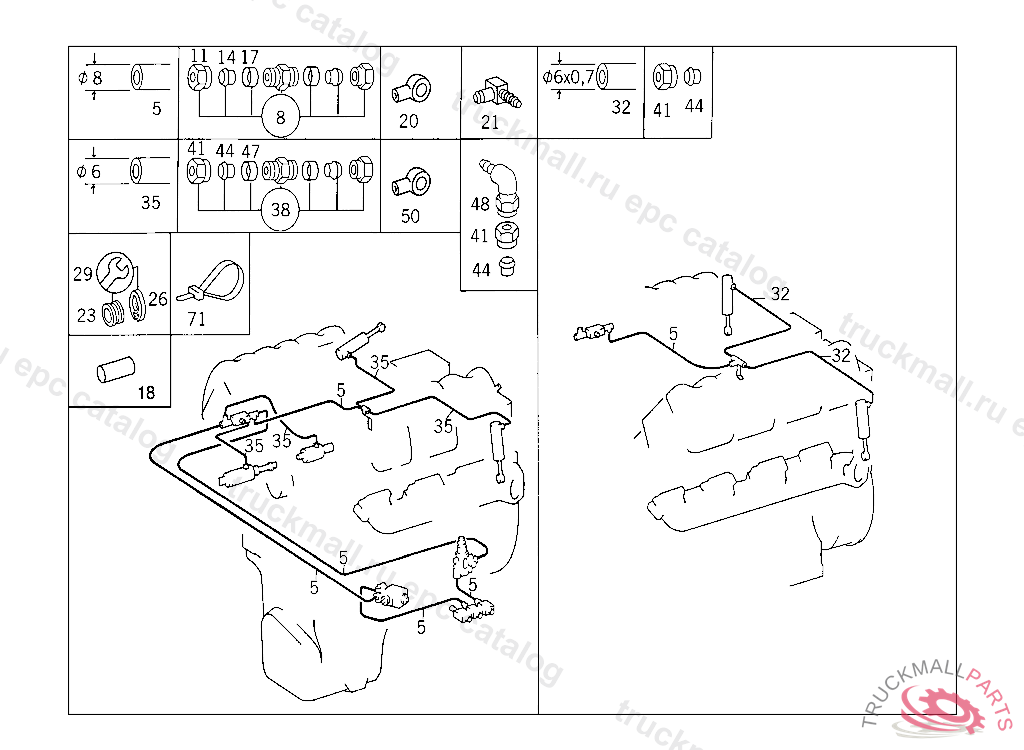

Поз.
Артикул
Описание
5
PLASTIC PIPE AERATION, ORDER BY THE METER
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE
11
UNION NUT LINE CONNECTION
14
GLAND LINE CONNECTION
17
SLEEVE LINE CONNECTION
18
INSULATING HOSE PROTECTION AGAINST SCORING 10 MM, SILIKON / SILICONE, ORDER BY THE METER
18
INSULATING HOSE LINE MOUNTING, ORDER BY THE METER
20
BANJO UNION HEATING CONNECTION,K 169122
20
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
21
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
21
ELBOW FITTING , Replaced By: A0049905371
23
LOCK RING LINE CONNECTION
23
SEAL RING , Replaced By: A0009940747
26
LOCK , Replaced By: A0009945448
26
LOCK LINE CONNECTION
29
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
29
REPAIR KIT , Replaced By: A0309971748
32
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
35
PLASTIC PIPE RISING PIPE 4X6 MM
35
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
38
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
41
UNION NUT
44
SEAL CONE
44
GLAND , Replaced By: A0019901667
47
SLEEVE LEAK LINE
48
ELBOW FITTING. T-FITTING LINE CONNECTION TO ENGINE TO M16
50
BANJO UNION HOSE WIDTH, / I.D., 4/14 MM,K 169123
50
BANJO UNION , Replaced By: N000000000364
71
LOOM TIE LINE MOUNTING 280 MM
71
LOOM TIE LINE MOUNTING
999
VALVE PARTWABCO
999
PROTECTIVE CAPWABCO
999
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
999
SEAL RINGWABCO
999
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION
999
PLUG COMPRESSED-AIR-LINE PLUG-CONNECTION
999
ELBOW FITTING
999
GASKET KITKNORR
999
VALVE (3/2-WAY SOLENOID VALVE) WABCO
999
SEAL RINGWABCO
999
SEAL RINGBOSCH
999
SEAL RINGWABCO
999
CLAMP LINE MOUNTING
999
BRACKET 3/2-WAY SOLENOID VALVE
999
BRACKET CONNECTOR TO FRAME
999
BRACKET , Replaced By: A6454312140
999
SHIM 3/2-WAY SOLENOID VALVE
999
SCREW CLAMP MOUNTING M 6X16
999
SCREW , Replaced By: N304017008043
999
SCREW BRACKET TO LEFT SIDE MEMBER
999
SEAL RINGBOSCH
999
SEAL RING LINE CONNECTION
999
SCREW , Replaced By: N000000001146
999
SCREW VALVE TO BRACKET M 8X55
999
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
NUT BRACKET TO SIDE MEMBER
999
HOLLOW SCREW HEATING CONNECTION
999
HOLLOW SCREW FITTING 3/2-WAY VALVE,CONNECTIONS: "21,23"
999
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
999
CLAMP SENSOR CABLE TO BRACKET
