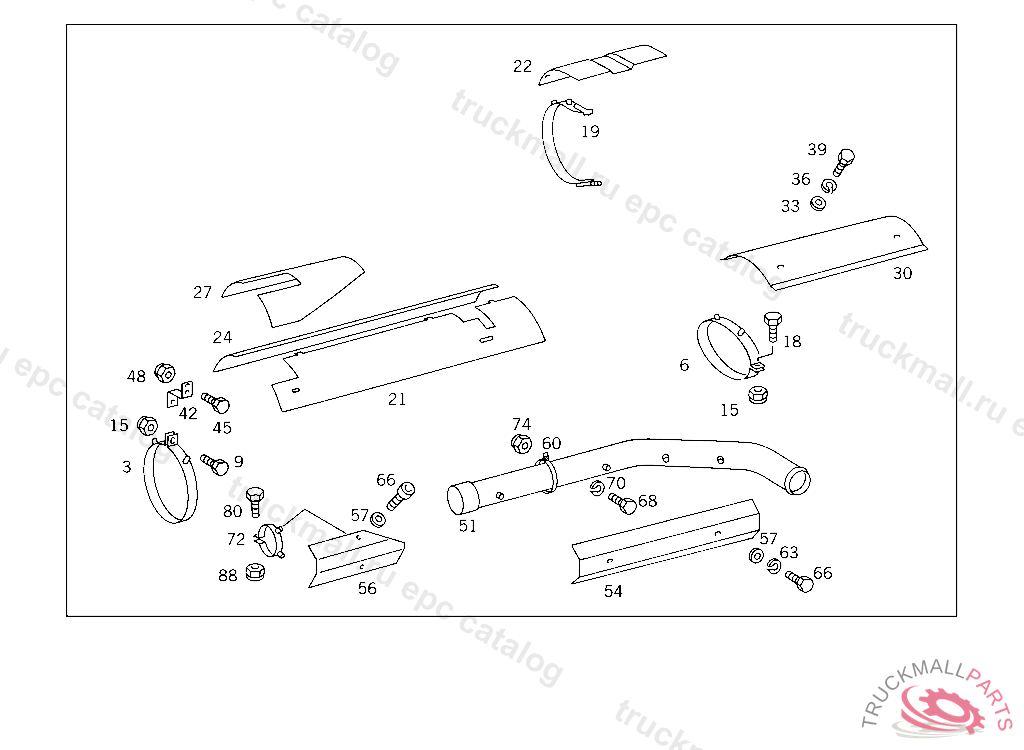

Поз.
Артикул
Описание
3
CLAMP EXHAUST MUFFLER TO BRACKET
6
CLAMP EXHAUST MUFFLER TO BRACKET
9
SCREW END PIECE TO EXHAUST PIPE M 10X25
15
NUT STRAP TO BRACKET
15
NUT , Replaced By: N910113010000
18
SCREW , Replaced By: N304017010002
18
SCREW BRACKET TO SIDE MEMBER
19
STRAP EXHAUST MUFFLER TO BRACKET,FRONT AND REAR,5 548864
21
PROTECTIVE PLATE FRONT EXHAUST MUFFLER
21
PROTECTIVE PLATE FRONT EXHAUST MUFFLER
21
PROTECTIVE PLATE FRONT EXHAUST MUFFLER
21
PROTECTIVE PLATE , Replaced By: A3894900130
21
PROTECTIVE PLATE , Replaced By: A3894900030
22
PROTECTIVE PLATE REAR EXHAUST MUFFLER
22
PROTECTIVE PLATE REAR EXHAUST MUFFLER
24
PROTECTIVE PLATE FRONT EXHAUST MUFFLER
24
PROTECTIVE PLATE FRONT EXHAUST MUFFLER
24
PROTECTIVE PLATE FRONT EXHAUST MUFFLER
27
PROTECTIVE PLATE FRONT EXHAUST MUFFLER
30
PROTECTIVE PLATE REAR EXHAUST MUFFLER
33
WASHER EXHAUST MUFFLER TO STRAP
33
WASHER , Replaced By: N000125008443
36
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
39
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
39
SCREW , Replaced By: N304017008016
42
BRACKET REAR EXHAUST MUFFLER
45
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
45
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
45
SCREW , Replaced By: N308676012026
48
NUT SUPPORT TO SIDE MEMBER
51
EXHAUST PIPE REAR
51
EXHAUST PIPE REAR
51
EXHAUST PIPE REAR
51
EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
51
EXHAUST PIPE REAR LEFT
51
EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
51
EXHAUST PIPE REAR
51
EXHAUST PIPE REAR
51
EXHAUST PIPE REAR
51
EXHAUST PIPE REAR
51
EXHAUST PIPE REAR
51
EXHAUST PIPE REAR
51
EXHAUST PIPE FROM EXHAUST MUFFLER TO BRACKET AT SIDE MEMBER
51
EXHAUST PIPE REAR
51
EXHAUST PIPE REAR
51
EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
51
EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT,5 439562
51
EXHAUST PIPE REAR
51
EXHAUST PIPE (TAIL PIPE)
51
EXHAUST PIPE FROM EXHAUST PIPE TO SEPARATION POINT
51
EXHAUST PIPE REAR
51
EXHAUST PIPE REAR
51
EXHAUST PIPE BOTTOM LATERAL
51
EXHAUST PIPE REAR
51
EXHAUST PIPE REAR
54
PROTECTIVE PLATE FUEL TANK
54
PROTECTIVE PLATE RIGHT EXHAUST PIPE,5 294656
54
PROTECTIVE PLATE (HEAT SHIELD)
54
PROTECTIVE PLATE (HEAT SHIELD), FROM 08.95
54
PROTECTIVE PLATE EXHAUST PIPE
54
PROTECTIVE PLATE , Replaced By: A6204920230
56
PROTECTIVE PLATE EXHAUST PIPE, NOT USED
57
WASHER EXHAUST MUFFLER TO STRAP
57
WASHER , Replaced By: N000125008443
60
CLAMP , Replaced By: N071555100501
60
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
63
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
66
SCREW BATTERY MOUNTING
66
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
66
SCREW SPRING STOP
66
SCREW , Replaced By: N000912008219
66
SCREW , Replaced By: N000912008200
66
SCREW , Replaced By: N304017008016
68
SCREW , Replaced By: N304017010002
68
SCREW BRACKET TO SIDE MEMBER
70
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
72
BRACKET PROTECTIVE PLATE TO EXHAUST PIPE, NOT USED
74
NUT , Replaced By: N910113010000
74
NUT STRAP TO BRACKET
80
SCREW , Replaced By: N304017010002
80
SCREW BRACKET TO SIDE MEMBER
88
NUT , Replaced By: N910113010000
999
CLAMP , Replaced By: A3874900041
999
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
999
PROTECTIVE PLATE , NOT USED
