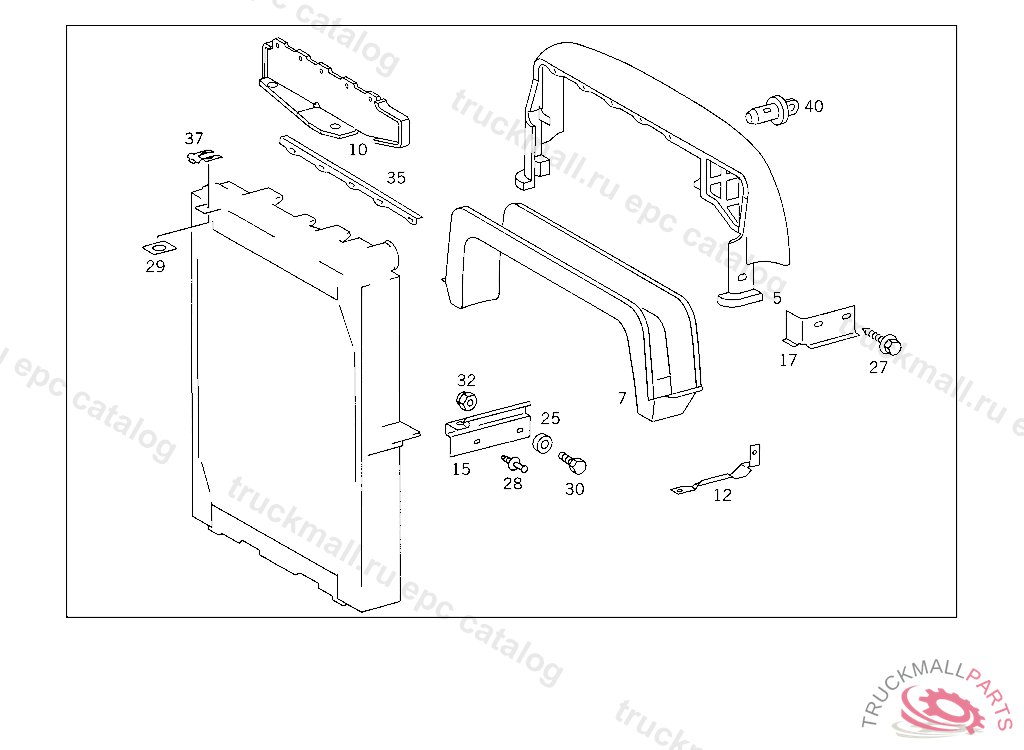

Поз.
Артикул
Описание
5
BOOT (SEALING LIP)
5
BOOT (SEALING LIP)
7
RAIL (SEALING LIP)
10
MOUNTING RAIL SEALING LIP TO RADIATOR
10
MOUNTING RAIL , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A6995000176
12
BRACKET SEALING LIP TO OIL DIPSTICK BRACKET
15
BRACKET SEALING LIP TO RADIATOR
17
BRACKET RADIATOR,RIGHT
17
BRACKET RADIATOR,LEFT
17
BRACKET SEALING LIP TO OIL DIPSTICK BRACKET
25
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
25
WASHER , Replaced By: N000125006421
25
WASHER COMPRESSED AIR LINE TO BRACKET
27
SCREW GUIDE TUBE BRACKET TO RADIATOR
27
SCREW DE-AERATION LINE TO RADIATOR
28
RIVET SEALING LIP TO RADIATOR
29
PLATE FROM EXPANSION TANK TO RADIATOR
29
PLATE FROM EXPANSION TANK TO RADIATOR 40X40 MM
30
SCREW , Replaced By: N304017006018
30
SCREW COVER PLATE TO COVER PLATE M 6 X 12
32
NUT , Replaced By: N913004006001
32
NUT PUMP TO BRACKET
35
BRACKET SEALING LIP TO EXPANSION TANK
37
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
40
PIN SEALING LIP TO EXPANSION TANK
