Поз.
Артикул
Описание
5

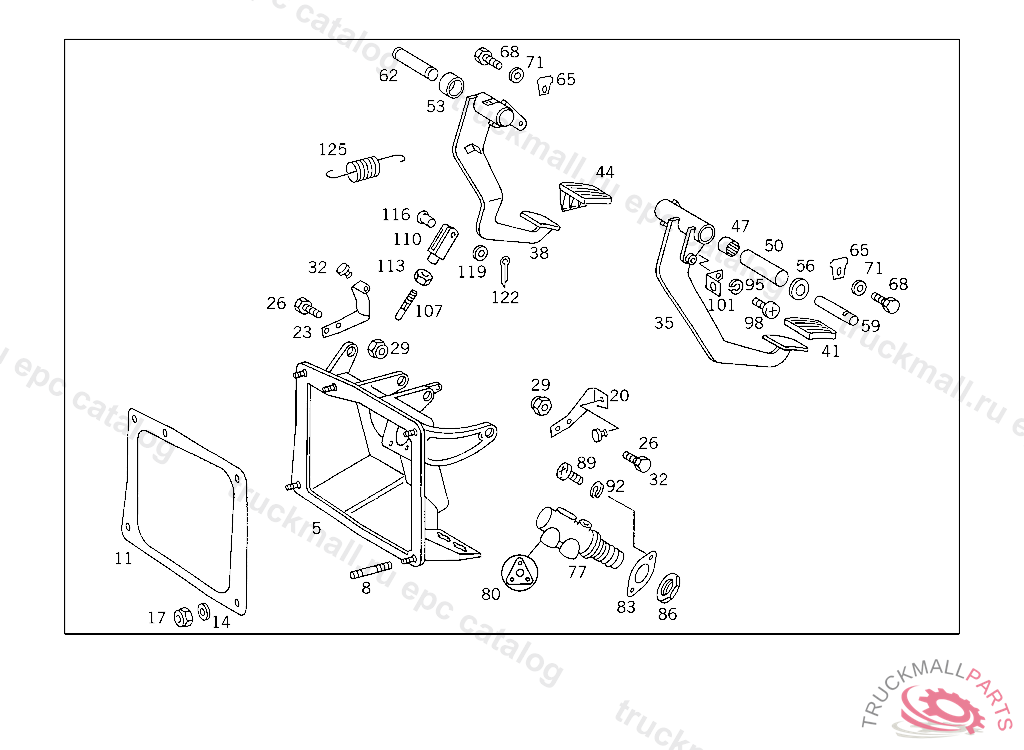

BEARING BRACKET CLUTCH PEDAL AND BRAKE PEDAL
8
STUD
11
GASKET BEARING BRACKET TO FIRE WALL
14
WASHER , Replaced By: N000125008443
14
WASHER EXHAUST MUFFLER TO STRAP
17
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
17
NUT , Replaced By: N913004008001
17
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
20
STOP CLUTCH PEDAL,5 957975
23
BRACKET CLUTCH PEDAL,5 957976
26
SCREW COVER PLATE TO BRACKET
29
NUT , Replaced By: N913004006001
29
NUT PUMP TO BRACKET
32
STOP CLUTCH PEDAL AND BRAKE PEDAL
35
PEDAL CLUTCH
35
PEDAL CLUTCH
38
PEDAL BRAKE
38
PEDAL BRAKE
41
PAD CLUTCH PEDAL
44
PAD BRAKE PEDAL
47
NEEDLE BEARING CLUTCH PEDAL
47
NEEDLE BEARING CLUTCH PEDAL
50
SPACER TUBE CLUTCH PEDAL
53
BUSHING BRAKE PEDAL
53
BUSHING , Replaced By: A1242920050
56
WASHER CLUTCH PEDAL TO BEARING BRACKET
59
PIN CLUTCH PEDAL TO BEARING BRACKET
62
PIN BRAKE PEDAL TO BEARING BRACKET
65
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
68
SCREW , Replaced By: N304017006016
68
SCREW PUMP TO BRACKET
71
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
71
WASHER COMPRESSED AIR LINE TO BRACKET
77
VALVE 3/2-WAY VALVE
80
GASKET KIT 3/2-WAY VALVE
83
FLANGE AT PEDAL ASSEMBLY BEARING BRACKET
86
NUT SUCTION LINE TO OIL PUMP
89
SCREW , Replaced By: N000000001145
89
SCREW BRACKET TO COVERING
92
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
95
ANGLE AT CLUTCH PEDAL UNIT
98
SCREW BRACKET TO COVERING
98
SCREW , Replaced By: N000000001145
101
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
107
ROD , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6732920032, +001N071752008003
107
ROD TWO-CIRCUIT-BRAKE-VALVE CONTROL
110
YOKE OPERATING ROD,K 202311
110
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
113
NUT
113
NUT , Replaced By: N304035008001
116
PIN ROD TO BRAKE PEDAL
119
WASHER BRACKET TO CROSS MEMBER
122
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
122
COTTER PIN LEVER TO ROD
125
SPRING CLUTCH-PEDAL/BRAKE-PEDAL RESET
999
INSULATING HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
999
PAD , Replaced By: N040621014200
