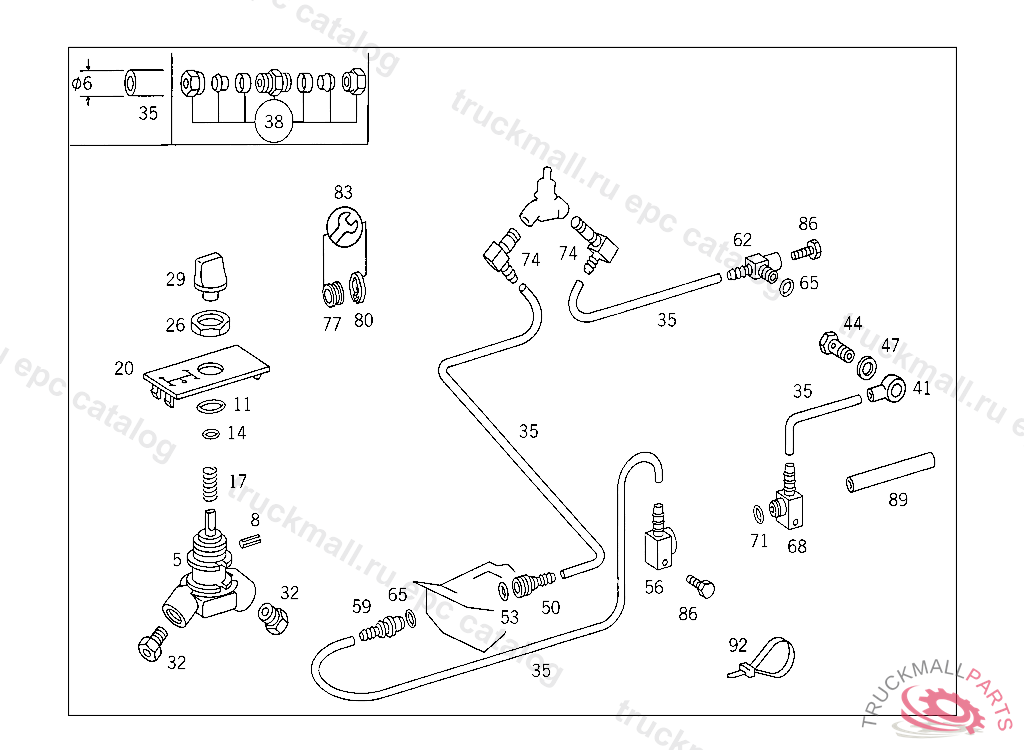

Поз.
Артикул
Описание
5
VALVE LONGITUDINAL DIFFERENTIAL LOCK CONTROL BOSCH
5
VALVE LONGITUDINAL DIFFERENTIAL LOCK CONTROL WABCO
8
CLAMPING SLEEVE TOP WABCO
11
SEAL RING TOP WABCO
14
SEAL RING INSIDE WABCO
17
SPRING INSIDE WABCO
20
GUIDE SIGN P.T.O. CONTROL
26
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
29
HANDLE 3/2-WAY VALVE TO BRACKET
32
SCREW. UNION SCREW LINE CONNECTION
32
SCREW. UNION SCREW , Replaced By: A0009973734
35
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
35
PLASTIC PIPE RISING PIPE 4X6 MM
38
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
41
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
44
HOLLOW SCREW HEATING CONNECTION
47
SEAL RING LINE CONNECTION
50
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
53
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
56
CONNECTOR
59
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
62
CONNECTOR DISTRIBUTOR TO CAB
65
SEAL RING
68
CONNECTOR
71
SEAL RING CONNECTOR 11.8X2 MM
71
SEAL RING , Replaced By: A0229973948
74
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
77
SEAL RING , Replaced By: A0009940747
77
LOCK RING LINE CONNECTION
80
LOCK , Replaced By: A0009945448
80
LOCK LINE CONNECTION
83
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
83
REPAIR KIT , Replaced By: A0309971748
86
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
86
SCREW EXHAUST BRAKE SEPARATION POINT
89
INSULATING HOSE LINE MOUNTING, ORDER BY THE METER
89
INSULATING HOSE , ORDER BY THE METER, Replaced By: A0005468430
92
LOOM TIE LINE MOUNTING 280 MM
