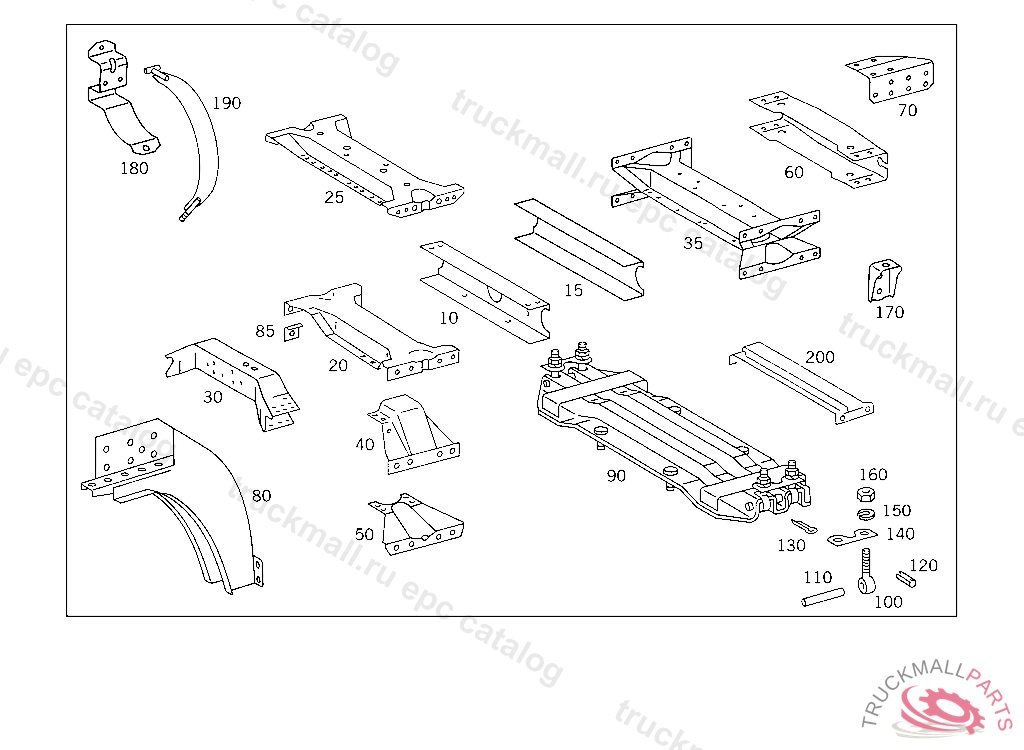

Поз.
Артикул
Описание
10
CROSS MEMBER IN FRONT OF REAR CROSS MEMBER
10
CROSS MEMBER IN FRONT OF REAR CROSS MEMBER
15
CROSS MEMBER IN FRONT OF REAR CROSS MEMBER
20
CROSS MEMBERNO.4A
20
CROSS MEMBERNO.5A
20
CROSS MEMBER , Replaced By: A6173120117
20
CROSS MEMBERNO.5A
25
CROSS MEMBERNO.3B
30
CROSS MEMBER IN FRONT OF REAR CROSS MEMBER
35
CROSS MEMBER REAR-SPRING REAR BRACKET NO.6
40
STRUT LEFT AND RIGHT
40
STRUT LEFT AND RIGHT
40
STRUT LEFT AND RIGHT
40
STRUT LEFT AND RIGHT
50
REINFORCEMENT LEFT AND RIGHT
50
STRUT CROSS MEMBER AT REAR SPRING REAR BRACKET
50
REINFORCEMENT LEFT AND RIGHT TO 617 312 01 17
60
CROSS MEMBER (REAR CROSS MEMBER)
70
GUSSET PLATE BOTTOM RIGHT
70
GUSSET PLATE BOTTOM LEFT
80
SUPPORT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 952677 ONLY REPLACEABLE BY PAIRS, Replaced By: A6555200333
80
SUPPORT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 952677 ONLY REPLACEABLE BY PAIRS, Replaced By: A6555200433
80
SUPPORT LEFT
80
SUPPORT RIGHT
85
SHIM CROSS MEMBER AND STRUT TO SIDE MEMBER
90
BRACKET SPARE WHEEL CARRIER,4 613857
100
SCREW SPARE WHEEL CARRIER TO SIDE MEMBER
110
PIN AT BRACKET
120
CLAMPING SLEEVE BRACKET TO PEDAL BEARING BRACKET
130
COTTER PINROCKINGER TYP 260 G140
140
BASE BLOCK SPARE WHEEL CARRIER TO SIDE MEMBER
150
LOCK WASHERROCKINGER TYP 59 G140,59 G150
160
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
160
NUT , Replaced By: N308673016001
170
CONSOLE BODY MOUNTING
180
BRACKET CLUTCH BOOSTER AIR RESERVOIR
190
STRAP AIR RESERVOIR TO BRACKET
200
SUPPORT TRANSMISSION MOUNTING, TO BE ADAPTED DURING ASSEMBLY
