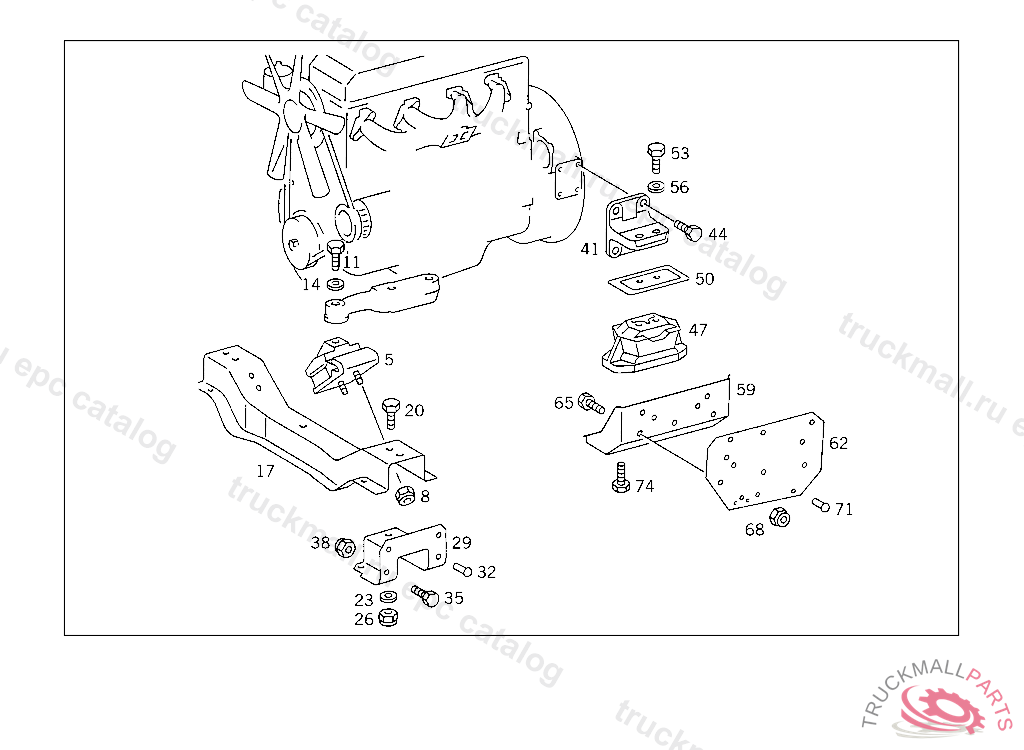

Поз.
Артикул
Описание
5
RUBBER MOUNTING FRONT
8
NUT SUPPORT TO SIDE MEMBER
11
SCREW , Replaced By: N000961016097
11
SCREW , Replaced By: N308676016005
11
SCREW SUPPORT TO TRANSMISSION M 16X1.5X60
14
WASHER CONSOLE TO FRAME
17
ENGINE CROSS MEMBER FRONT
20
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
20
SCREW , Replaced By: N308676012026
23
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
26
NUT SUPPORT TO SIDE MEMBER
29
ENGINE STAY FRONT
32
RIVET REAR CROSS MEMBER 12X42 MM
35
SCREW , Replaced By: N308676012026
35
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
38
NUT SUPPORT TO SIDE MEMBER
41
SUPPORTING ARM CLUTCH END
44
SCREW SUPPORTING ARM TO BELL HOUSING M 16X35
47
RUBBER MOUNTING REAR
47
RUBBER MOUNTING REAR
50
SCREENING PLATE REAR RUBBER MOUNTING
53
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
53
SCREW , Replaced By: N308676014012
53
SCREW SUPPORT TO SIDE MEMBER M 14X45
56
WASHER CROSS MEMBER TO SUPPORT
59
CONSOLE ENGINE RIGHT SUPPORT, TO BE ADAPTED DURING ASSEMBLY
59
CONSOLE ENGINE LEFT SUPPORT, TO BE ADAPTED DURING ASSEMBLY
62
REINFORCEMENT CONSOLE TO SIDE MEMBER
65
SCREW BRACKET TO FRAME M 12X35
65
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
68
NUT , Replaced By: N910113012003
68
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
71
RIVET REAR CROSS MEMBER 12X42 MM
71
RIVET REINFORCEMENT TO SIDE MEMBER
74
SCREW BRACKET TO LEFT SIDE MEMBER
