Поз.
Артикул
Описание

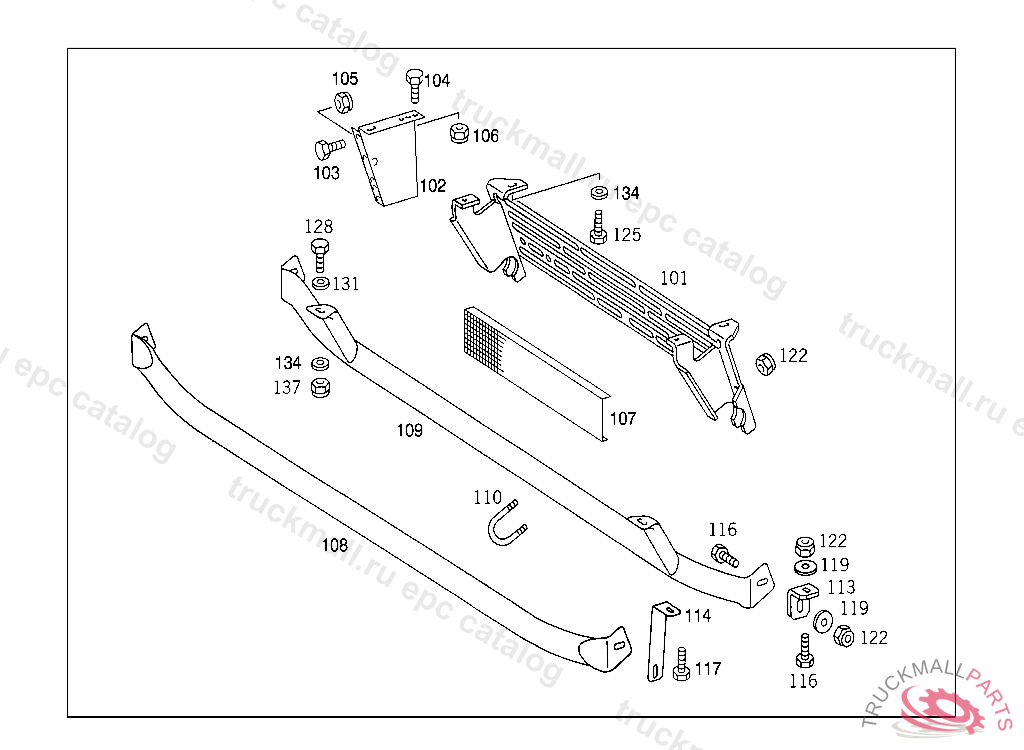

101
COVERING RADIATOR UNDERSHIELD
102
CONSOLE RIGHT
102
CONSOLE LEFT
103
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
104
SCREW EXHAUST PIPE TO BRACKET
104
SCREW SUPPORT TO SIDE MEMBER M14X40
105
NUT STRAP TO SUPPORT
106
NUT PARTICLE FILTER M14
107
COVERING COVER PLATE
108
PIPE COVER PLATE, I WHEN ORDERING, INDICATE IN ADDITION THE COLOR CODE NUMBERS: I BLACKI I I I II
109
PROTECTIVE TUBE RADIATOR
110
CLAMP COVER PLATE
113
BRACKET COVERING
114
BRACKET COVER PLATE, I WHEN ORDERING, INDICATE IN ADDITION THE COLOR CODE NUMBERS: I BLACKI I I I II
114
BRACKET , Replaced By: A6525243740
114
BRACKET COVER PLATE, I WHEN ORDERING, INDICATE IN ADDITION THE COLOR CODE NUMBERS: I BLACKI I I I II
116
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
119
WASHER , Replaced By: N009021010209
119
WASHER BRACKET TO COVERING
122
NUT EXHAUST PIPE TO SIDE MEMBER
128
SCREW CONSOLE TO SIDE MEMBER
137
NUT SUPPORT TO SIDE MEMBER
