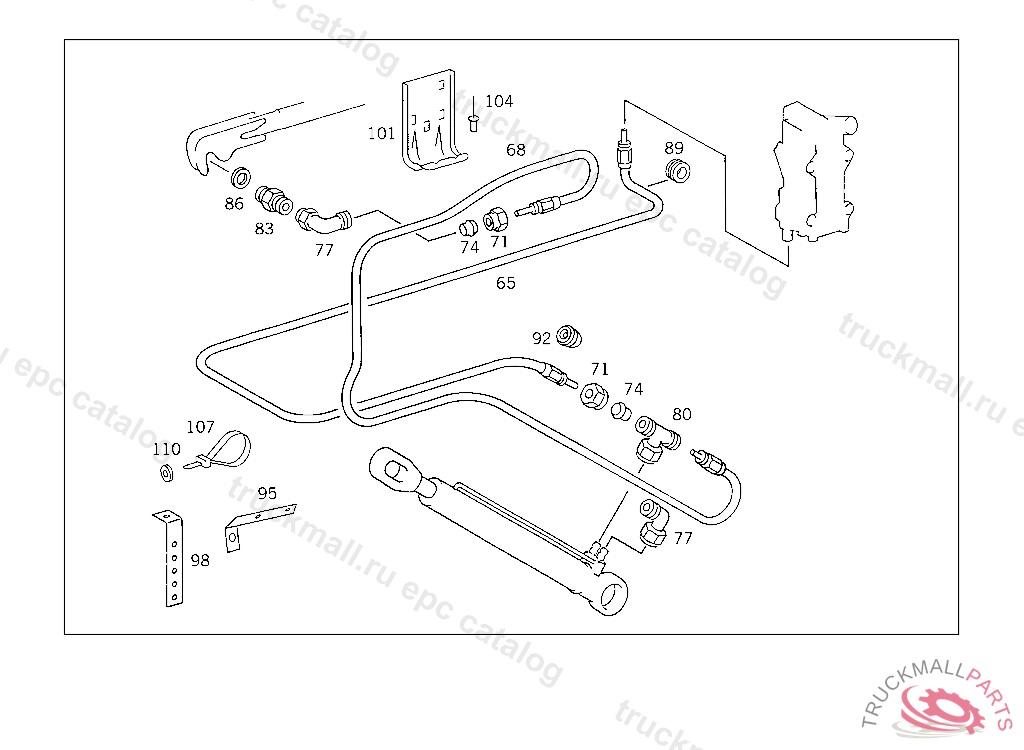

Поз.
Артикул
Описание
65
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
65
HOSE FROM HAND PUMP TO HYDRAULIC CYLINDER
68
HOSE FROM HYDRAUL.CYLINDER TO TRANSMISSIONSHIFTING-ROD PAWL
68
HOSE , Replaced By: A6565500159
71
UNION NUT
74
SEAL CONE
74
GLAND , Replaced By: A0019901667
77
FITTING FROM PUMP TO CYLINDER
77
FITTING FROM PUMP TO CYLINDER
77
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
80
T-FITTING. FITTING AT INJECTION PUMP
83
FITTING 3/2-WAY VALVE,CONNECTION: "30"
83
SCREW-IN FITTING , Replaced By: A0029978472
86
SEAL RING LINE CONNECTION
89
GROMMET HIGH PRESSURE HOSE THRU FRAME
92
RUBBER BUFFER TO PLUG THE FREE CONNECTIONS
95
BRACKET AT CAB SIDE MEMBER
98
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
101
BRACKET HIGH PRESSURE HOSE TO CAB
104
RIVET , NOT USED
107
LOOM TIE LINE MOUNTING
107
LOOM TIE LINE MOUNTING 280 MM
110
WASHER EXHAUST MUFFLER TO STRAP
110
WASHER , Replaced By: N000125008443
999
GASKET KIT HYDRAULIC CYLINDER HUNGER
999
GASKET KIT , Replaced By: A0015535005
999
BRACKET HAND PUMP
