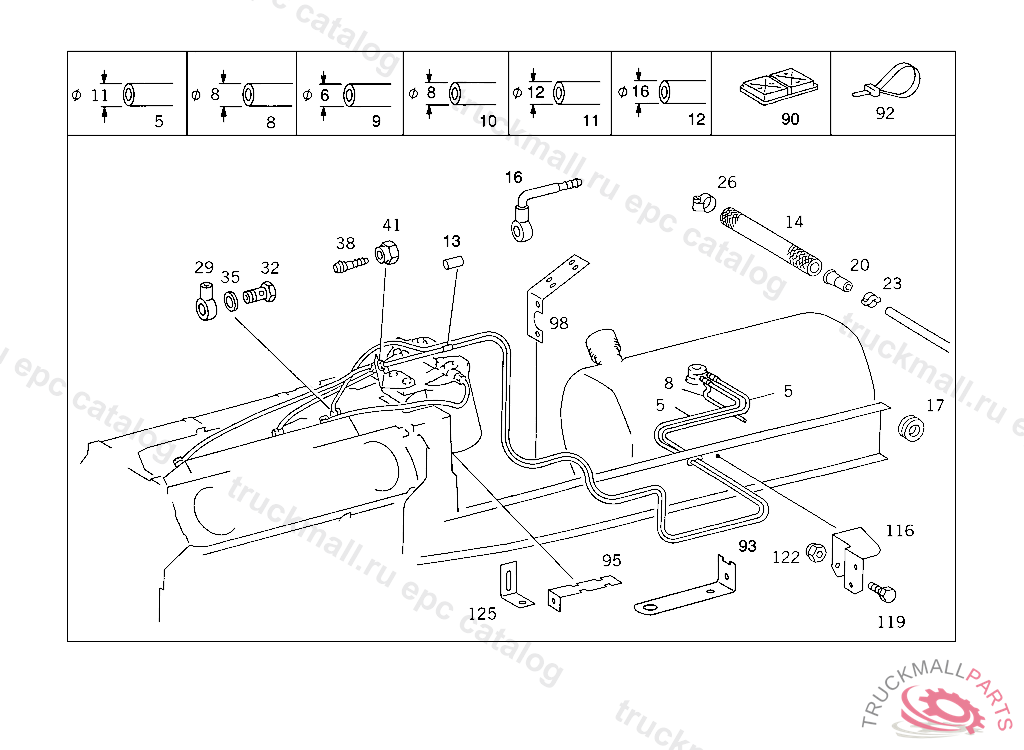

Поз.
Артикул
Описание
5
HOSE FEED & RETURN 8X11MM, ORDER BY THE METER
8
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
9
PLASTIC PIPE RISING PIPE 4X6 MM
10
PLASTIC PIPE AERATION, ORDER BY THE METER
11
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
12
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
13
INSULATING HOSE FEED 11X0.7 MM, ORDER BY THE METER
14
HOSE LEAK LINE
17
GROMMET FOR PASSAGE OF LINE
20
SLEEVE FEED
23
CLIP LEAK LINE
26
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
26
CLAMP , Replaced By: N000000000665
29
BANJO UNION FEED
29
BANJO UNION , Replaced By: N000000000363
32
HOLLOW SCREW FUEL LINE TO FEED PUMP
32
HOLLOW SCREW , Replaced By: N915036010108
35
SEAL RING FUEL LINE TO FEED PUMP
38
FITTING RETURN
41
NUT. UNION NUT RETURN
90
PLATE CABLE HARNESS MOUNTING
92
LOOM TIE LINE MOUNTING
92
LOOM TIE LINE MOUNTING 280 MM
116
BRACKET AT FRAME
119
SCREW AT FRAME,5 518379
119
SCREW , Replaced By: N000933008302
122
NUT STRAP TO BRACKET
125
BRACKET FUEL LINE TO BELL HOUSING
125
BRACKET FUEL LINE TO BELL HOUSING
