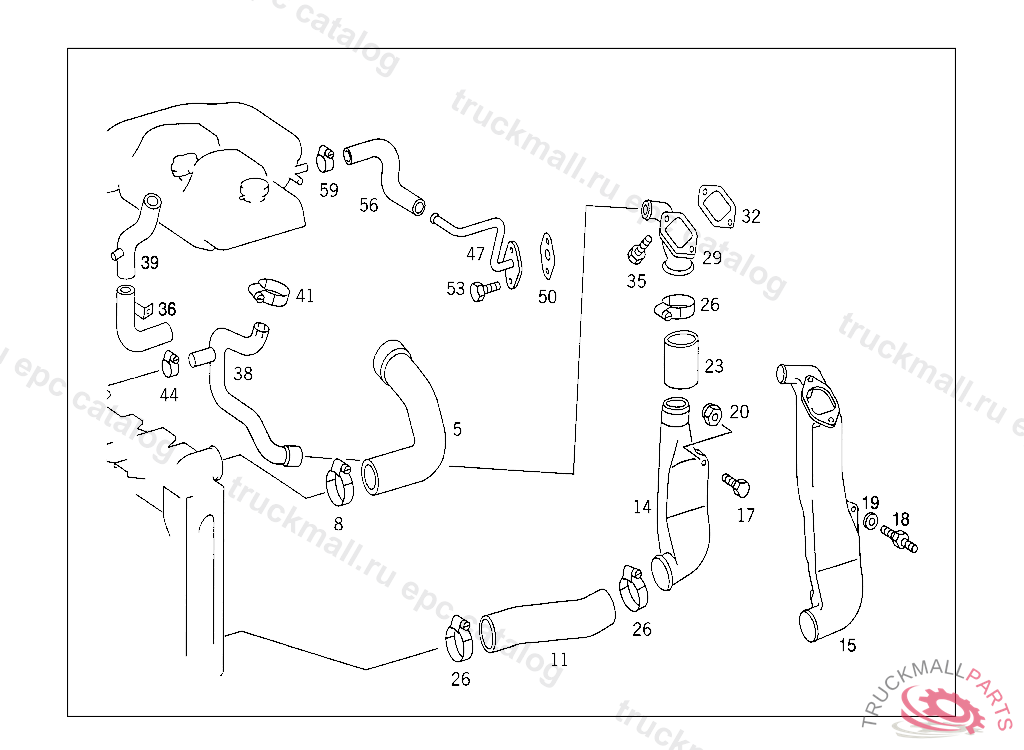

Поз.
Артикул
Описание
5
HOSE FROM RADIATOR TO THERMOSTAT
8
CLAMP , Replaced By: A0059972990
8
CLAMP , Replaced By: N000000000674
8
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
8
CLAMP HOSE 70-90X13 MM
11
HOSE FROM RADIATOR OUTLET TO WATER PUMP
11
HOSE FROM RADIATOR OUTLET TO WATER PUMP
14
PIPE ELBOW AT WATER PUMP,5 510518
14
PIPE ELBOW AT WATER PUMP,5 1935955 510517
14
PIPE ELBOW , Replaced By: A6555010756
15
PIPE ELBOW FOR SCREW FITTING
17
SCREW BRACKET TO FRAME SIDE MEMBER
18
PIN PIPE ELBOW TO BRACKET,K 023462
19
SPACER RING PIPE ELBOW TO BRACKET,K 023462
20
NUT STRAP TO BRACKET
20
NUT , Replaced By: N910113010000
23
HOSE FROM RADIATOR OUTLET TO WATER PUMP, ORDER BY THE METER
26
CLAMP HOSE TO RADIATOR,PIPE ELBOW,AND WATER PUMP 82 - 105 X 15.8 MM
26
CLAMP HOSE 70-90X13 MM
26
CLAMP , Replaced By: A0059972990
26
CLAMP , Replaced By: N000000000674
29
CONNECTOR FOR SCREW FITTING
32
GASKET CONNECTOR
32
GASKET CONNECTOR, Replaced By: A0002011280
32
GASKET CONNECTOR, Replaced By: A0002011180
32
GASKET CONNECTOR, Replaced By: A0002011080
32
GASKET , Replaced By: A4422010480
35
SCREW , Replaced By: N304017010051
35
SCREW
36
LINE COOLING WATER RETURN LINE
36
LINE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
38
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
38
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
39
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
39
HOSE FROM EXPANSION TANK TO WATER PUMP
41
CLAMP
41
CLAMP , Replaced By: N000000000670
44
CLAMP , Replaced By: N000000000667
44
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
47
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
50
GASKET. SEAL DE-AERATION PIPE TO ENGINE
53
SCREW END PIECE TO EXHAUST PIPE M 10X25
56
HOSE FROM WATER PUMP TO EXPANSION TANK AND TO HEATING PIPE
56
HOSE FROM EXPANSION TANK TO WATER PUMP,K 103232
56
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
59
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
59
CLAMP , Replaced By: N000000000667
999
WASHER , Replaced By: A1894660751
