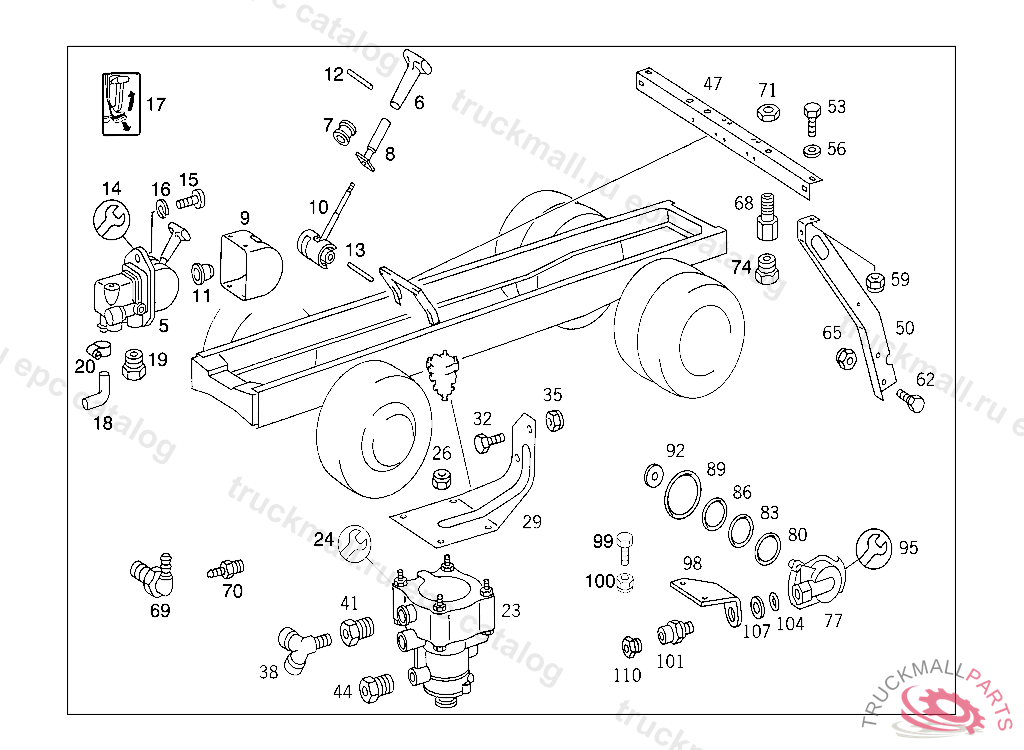

Поз.
Артикул
Описание
5
VALVE PARKING BRAKE WITH TRAILER CONTROL "KNORR"
5
VALVE PARKING BRAKE WITH TRAILER CONTROL "BOSCH"
5
VALVE PARKING BRAKE WITH TRAILER CONTROL "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
6
HANDLETO 002 430 93 81
7
BUSHING"WABCO"
7
BUSHING , Replaced By: A4421440050
8
BUSHINGTO 002 430 93 81
9
PROTECTIVE CAPTO 002 430 93 81
9
PROTECTIVE CAP PARKING BRAKE VALVE WABCO
10
LEVERTO 002 430 93 81
10
LEVER PARKING BRAKE VALVE WABCO
11
SPRING RETAINERTO 002 430 93 81
12
PINTO 002 430 90 81
13
PINTO 002 430 93 81
14
REPAIR KIT HAND BRAKE VALVE "WABCO"
15
SCREW PARKING BRAKE VALVE TO WINDOW SILL
16
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
17
GUMMED LABEL PARKING BRAKE ACTUATION
18
BREATHER PIPE PARKING BRAKE VALVE,CONNECTION: "30"
18
BREATHER PIPE PARKING BRAKE VALVE,CONNECTION: "30", Replaced By: A6554310273
19
SCREW. UNION SCREW LINE CONNECTION
19
SCREW. UNION SCREW , Replaced By: A0009973734
20
CLAMP HOSE TO PARKING BRAKE VALVE
23
TRAILER CONTROL VALVE (TRAILER CONTROL VALVE) "KNORR"
23
BRAKE VALVE (TRAILER CONTROL VALVE) "GRAU", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
23
BRAKE VALVE (TRAILER CONTROL VALVE) "BOSCH"
23
BRAKE VALVE (TRAILER CONTROL VALVE) "WABCO", PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
23
BRAKE VALVE , Replaced By: A0034318205
24
REPAIR KIT TRAILER CONTROL VALVE "GRAU"
24
REPAIR KIT TRAILER CONTROL VALVE "WABCO"
26
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
26
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
26
NUT , Replaced By: N913004008001
29
BRACKET TRAILER CONTROL VALVE
32
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
32
SCREW , Replaced By: N304017008027
35
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
35
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
35
NUT , Replaced By: N913004008001
38
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
41
SCREW. UNION SCREW LINE CONNECTION
44
SCREW. UNION SCREW LINE CONNECTION
44
SCREW. UNION SCREW , Replaced By: A0009973734
47
SUPPORT TWO-CIRCUIT BRAKE LINE COUPLING
50
ANGLE SUPPORT,RIGHT
50
ANGLE SUPPORT,LEFT
53
SCREW BRACKET TO CROSS CONNECTION STRUT
53
SCREW , Replaced By: N304017008034
53
SCREW PIPE CLAMP
53
SCREW , Replaced By: N304017008021
56
WASHER EXHAUST MUFFLER TO STRAP
56
WASHER , Replaced By: N000125008443
59
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
59
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
59
NUT , Replaced By: N913004008001
62
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
62
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
62
SCREW , Replaced By: N308676014020
65
NUT BRACKET TO SIDE MEMBER
65
NUT , Replaced By: N910113014001
68
ADAPTER FITTING LINE CONNECTION TO ENGINE
68
ADAPTER FITTING LINE CONNECTION TO ENGINE
69
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINE 9 MM, M 18X1.5,K 168170
70
ELBOW FITTING CONNECTION OF COMPRESSED AIR LINE 9 MM, M 18X1.5,K 168170
71
NUT BRACKET TO SIDE MEMBER
74
SCREW. UNION SCREW LINE CONNECTION
999
HANDLE"WABCO"
999
REPAIR KITBOSCH,TO 002 430 93 81
