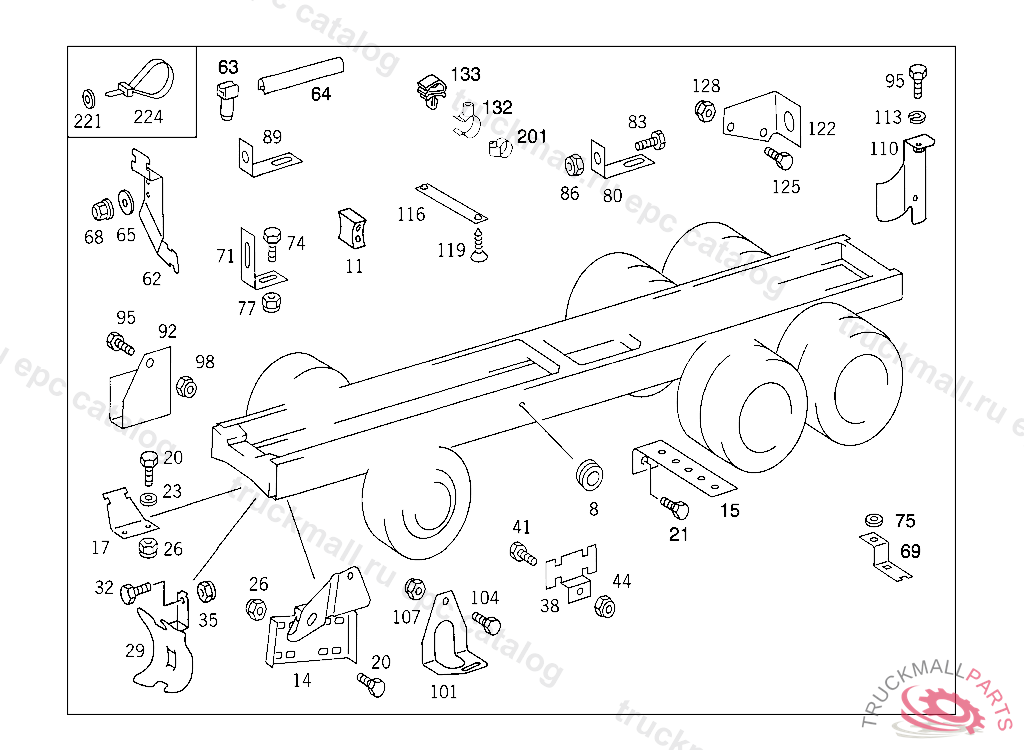

Поз.
Артикул
Описание
8
GROMMET FOR PASSAGE OF LINE
11
BRACKET COMPRESSED AIR LINE TO CONTROL ARM,5 927466
14
BRACKET RIGHT COMPRESSED AIR LINES
14
BRACKET RIGHT COMPRESSED AIR LINES, Replaced By: A6554303410
14
BRACKET LEFT COMPRESSED AIR LINES
14
BRACKET LEFT COMPRESSED AIR LINES, Replaced By: A6554303310
17
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
20
SCREW PIPE CLAMP
20
SCREW , Replaced By: N304017008021
23
WASHER EXHAUST MUFFLER TO STRAP
23
WASHER , Replaced By: N000125008443
26
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
26
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
26
NUT , Replaced By: N913004008001
29
BRACKET ACCORDION TUBE
29
BRACKET ACCORDION TUBE
32
SCREW EXHAUST PIPE BRACKET TO SIDE MEMBER
32
SCREW , Replaced By: N304017012022
35
NUT SUPPORT TO SIDE MEMBER
38
BRACKET BREATHER LINE TO SIDE MEMBER
41
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
41
SCREW , Replaced By: N304017008027
44
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
44
NUT , Replaced By: N913004008001
62
BRACKET LINE TO FRONT PANEL, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 115008, Replaced By: A0002930040
62
BRACKET LINE TO FRONT PANEL, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 115008, Replaced By: A0002930040
63
BRACKET LINE TO FRONT PANEL
64
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
64
EDGE GUARD SECTION , Replaced By: A0019872272
65
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
65
WASHER , Replaced By: N009021005205
68
NUT BRACKET TO PIN
71
BRACKET BRACKET TO CROSS MEMBER
74
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
74
SCREW , Replaced By: N304017008027
77
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
77
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
77
NUT , Replaced By: N913004008001
80
BRACKET FUEL LINE TO BELL HOUSING
83
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
86
NUT STRAP TO BRACKET
86
NUT , Replaced By: N910113010000
89
BRACKET COMPRESSED AIR LINE TO ENGINE
92
BRACKET COMPRESSED AIR LINE TO ENGINE BEARING BRACKET
101
BRACKET COMPRESSED AIR LINE TO SIDE MEMBER
116
BRACKET BRACKET TO CONTROL ARM
119
SHEET METAL SCREW CABLE MOUNTING IN CABLE DUCT, NOT USED
132
CLAMP COMPRSSED AIR LINE TO SUBSTRUCTURE
133
CLIP COMPRSSED AIR LINE TO SUBSTRUCTURE
221
WASHER BRACKET TO LEFT SIDE MEMBER
221
WASHER , Replaced By: N009021008213
221
WASHER BRACKET TO LEFT SIDE MEMBER
224
LOOM TIE LINE MOUNTING
224
LOOM TIE LINE MOUNTING 280 MM
999
BRACKET COMPRESSED AIR LINES
