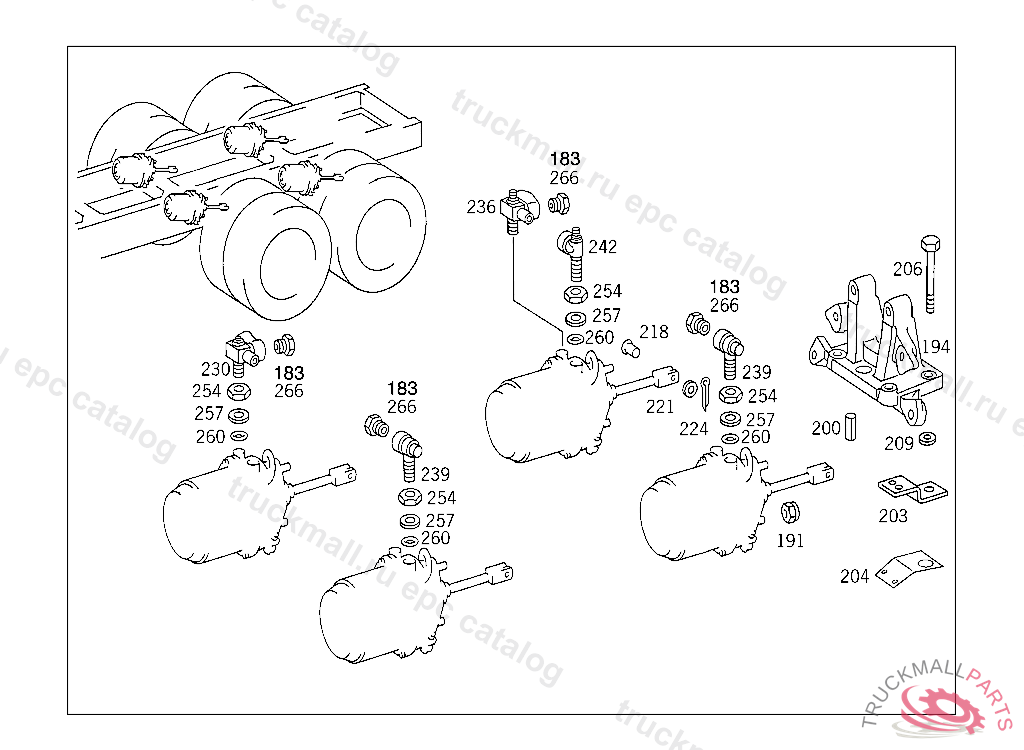

Поз.
Артикул
Описание
183
SCREW. UNION SCREW LINE CONNECTION
191
NUT COMBINATION CYLINDER TO BEARING BRACKET
191
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
194
BEARING BRACKET WHEEL CYLINDER, IN CASE OF CAST AXLE
194
BEARING BRACKET WHEEL CYLINDER, IN CASE OF STEEL AXLE
200
CLAMPING SLEEVE BEARING BRACKET TO REAR AXLE
200
CLAMPING SLEEVE , IN CASE OF STEEL AXLE
203
BRACKET METAL SPRING BELLOWS
204
BRACKET INSIDE RIGHT
206
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
206
SCREW , Replaced By: N308676016013
206
SCREW BRACKET TO REAR AXLE M 20X1.5X45
206
SCREW BRACKET TO REAR AXLE M 20X1.5X45
206
SCREW BRACKET TO REAR AXLE M 20X1.5X55
206
SCREW BRACKET TO REAR AXLE M 20X1.5X55
209
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
209
WASHER TRAILER COUPLING TO REAR CROSS MEMBER
218
PIN COMBINATION CYLINDER TO SLACK ADJUSTER
221
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
221
WASHER , Replaced By: N000433015005
224
COTTER PIN STRAP TO SUPPORT
230
T-FITTING PRESSURE RATIO VALVE,CONNECTION: "10",8 004623
236
T-FITTING REAR AXLE II TRISTOP CYLINDER, CONNECTIONS: "11,12,22"
239
T-FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "21,22"
242
T-FITTING TRISTOP CYLINDER,CONNECTION: "11"
254
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
257
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
260
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
266
SCREW. UNION SCREW LINE CONNECTION
