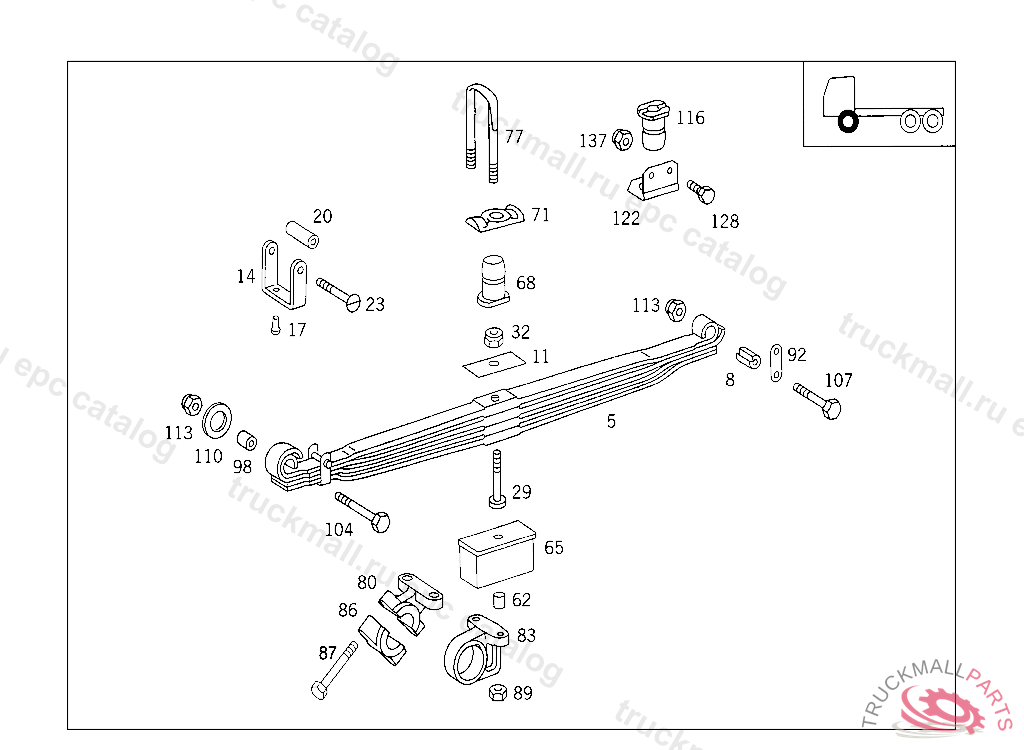

Поз.
Артикул
Описание
5
FRONT SPRING (PARABOLIC SPRING),NUMBER OF LEAVES: "4"
8
RUBBER MOUNTING
8
RUBBER MOUNTING
11
SHIM
14
SPRING CLAMP ,5 484790
17
RIVET SPRING CLAMP TO SPRING LEAF
20
SPACER TUBE SPRING CLAMP TO SPRING LEAF,5 484790
23
SCREW SPRING CLAMP TO SPRING LEAF,5 484790
29
SPRING BOLT
32
HEXAGON NUT. NUT SPRING BOLT
32
NUT , Replaced By: N910113012005
62
DOWEL PIN FRONT AXLE TO FRONT SPRINGS
65
SHIM FRONT AXLE TO FRONT SPRINGS
65
SHIM FRONT SPRINGS TO FRONT AXLE
65
SHIM FRONT SPRING, TO BE ADAPTED DURING ASSEMBLY
68
RUBBER BUFFER SPRING STOP
71
PLATE FRONT SPRINGS TO FRONT AXLE
71
PLATE , Replaced By: A6203310026
71
PLATE , Replaced By: A6203310026
77
U-BOLT FRONT SPRINGS TO FRONT AXLE 275 MM
77
U-BOLT FRONT SPRINGS TO FRONT AXLE 245 MM
77
U-BOLT FRONT SPRINGS TO FRONT AXLE 230 MM
83
BEARING BRACKET TORSION BAR TO FRONT AXLE
83
BEARING BRACKET FRONT AXLE TORSION BAR
86
BEARING SHELL ANTI-ROLL BAR TO BRACKET, NO.7390I I I I II
86
STEP BEARING , Replaced By: A9413230521
89
NUT REAR SPRING TO REAR AXLE
89
NUT , Replaced By: N308674020000
89
NUT , Replaced By: N308673020002
92
SHACKLE OUTSIDE
98
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET
104
SCREW REAR SPRING TO REAR SPRING FRONT BRACKET
107
SCREW FRONT SPRING TO FRONT-SPRING REAR BRACKET
113
NUT FRONT SPRING TO FRONT SPRING FRONT AND REAR BRACKETS
116
HELPER SPRING SPRING STOP TO FRAME BOTTOM SIDE
122
BRACKET HELPER SPRING
128
SCREW BRACKET TO SIDE MEMBER
128
SCREW , Replaced By: N304017010002
137
NUT STRAP TO BRACKET
137
NUT , Replaced By: N910113010000
