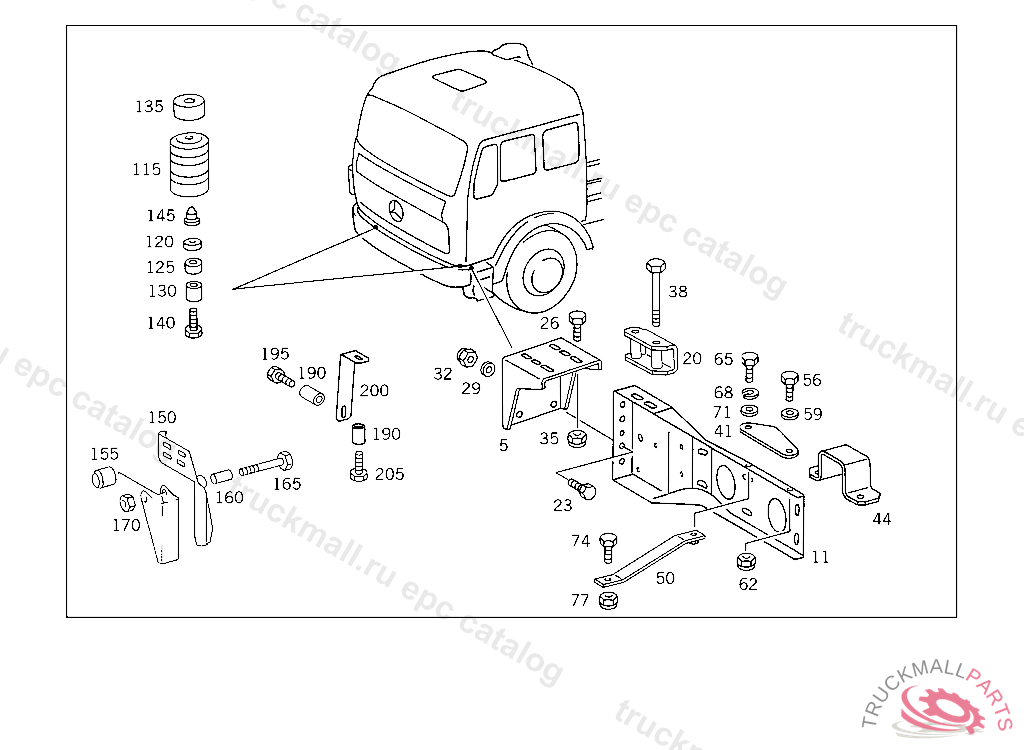

Поз.
Артикул
Описание
5
CONSOLE CAB SUSPENSION,FRONT
5
CONSOLE PEDESTAL
5
CONSOLE CAB SUSPENSION,FRONT
5
CONSOLE , Replaced By: A3878912631
5
CONSOLE PEDESTAL
5
CONSOLE CAB SUSPENSION,FRONT
5
CONSOLE PEDESTAL
11
STRUT BUMPER,LEFT
11
STRUT BUMPER,LEFT
11
STRUT BUMPER,RIGHT
11
STRUT BUMPER,RIGHT
11
STRUT BUMPER,LEFT
11
STRUT BUMPER,RIGHT
11
STRUT BUMPER,LEFT
11
STRUT BUMPER,RIGHT
20
BOW CAB SUSPENSION,FRONT
23
SCREW END PIECE TO EXHAUST PIPE M 10X25
23
SCREW LEFT AND RIGHT CONSOLES TO CAB
23
SCREW , Replaced By: N308676012015
23
SCREW APPARATUS SUPPORT TO FRAME
23
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
23
SCREW SUPPORT TO SIDE MEMBER M 14X45
23
SCREW , Replaced By: N308676014012
23
SCREW APPARATUS SUPPORT TO FRAME
23
SCREW , Replaced By: A9429901304
23
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
23
SCREW , Replaced By: N308676016013
23
SCREW END PIECE TO EXHAUST PIPE M 10X25
23
SCREW BRACKET TO CROSS MEMBER M 12X1.5X40
23
SCREW CONSOLE AND STRUT TO FRAME
26
SCREW CONSOLE AND STRUT TO FRAME
26
SCREW BEARING BRACKET TO REAR AXLE M 16X1.5X40
26
SCREW , Replaced By: N308676016013
29
WASHER SHOCK ABSORBER TO UPPER BEARING BRACKET
29
WASHER BRACKET TO COVERING
29
WASHER SPARE WHEEL CARRIER
29
WASHER , Replaced By: N000125013008
29
WASHER BRACKET TO COVERING
29
WASHER , Replaced By: N009021010209
29
WASHER
32
NUT STRAP TO BRACKET
32
NUT STEERING SUPPORT TO FRAME
32
NUT , Replaced By: N910113014000
32
NUT CONSOLE TO SUPPORT
32
NUT , Replaced By: N910113016001
32
NUT TORSION BAR TO BEARING BRACKET,5 904661
32
NUT STRAP TO BRACKET
32
NUT , Replaced By: N910113010000
35
NUT CONSOLE TO SUPPORT
35
NUT , Replaced By: N910113016001
38
SCREW TORSION BAR TO BEARING BRACKET M 16X115,5 903514
38
SCREW SUPPORT TO SIDE MEMBER M 14X120, TO BE ADAPTED DURING ASSEMBLY
38
SCREW SUPPORT TO SIDE MEMBER M 14X45
38
SCREW , Replaced By: N308676014012
38
SCREW CAB TO FRONT CONSOLE,5 412153
41
STOP BUMPER AT TORSION BAR
44
STOP BUMPER AT TORSION BAR
50
BRACKET REINFORCEMENT
50
BRACKET REINFORCEMENT
56
SCREW BRACKET TO SIDE MEMBER
56
SCREW , Replaced By: N304017010002
56
SCREW END PIECE TO EXHAUST PIPE M 10X25
56
SCREW END PIECE TO EXHAUST PIPE M 10X25
56
SCREW CENTRAL LOCK TO CAB M 10X16
56
SCREW CENTRAL LOCK TO CAB M 10X16
56
SCREW END PIECE TO EXHAUST PIPE M 10X25
56
SCREW END PIECE TO EXHAUST PIPE M 10X25
59
WASHER BRACKET TO COVERING
59
WASHER BRACKET TO COVERING
59
WASHER BRACKET TO COVERING
59
WASHER , Replaced By: N009021010209
62
NUT STRAP TO BRACKET
62
NUT STRAP TO BRACKET
62
NUT , Replaced By: N910113010000
65
SCREW CLAMP TO BRACKET AND TO PIPE
68
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
71
WASHER EXHAUST MUFFLER TO STRAP
71
WASHER , Replaced By: N000125008443
74
SCREW END PIECE TO EXHAUST PIPE M 10X25
77
NUT STRAP TO BRACKET
77
NUT , Replaced By: N910113010000
115
BUFFER (HOLLOW RUBBER SPRING),CAB
120
FLANGE HOLLOW RUBBER SPRING
125
BUSHING HOLLOW RUBBER SPRING
125
SPACER TUBE HOLLOW RUBBER SPRING,5 956658
125
SPACER TUBE HOLLOW RUBBER SPRING,5 956658
130
SPACER TUBE HOLLOW RUBBER SPRING,5 956657
130
SPACER TUBE HOLLOW RUBBER SPRING,5 956657
130
SPACER TUBE HOLLOW RUBBER SPRING,5 956658
135
WASHER HOLLOW RUBBER SPRING TO CAB,5 956657
135
WASHER HOLLOW RUBBER SPRING,5 956658
135
WASHER HOLLOW RUBBER SPRING,5 956657
135
WASHER HOLLOW RUBBER SPRING
135
WASHER , Replaced By: A3878912210
135
WASHER , Replaced By: A4432610076
135
WASHER , Replaced By: A6558910210
135
WASHER HOLLOW RUBBER SPRING
140
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
140
SCREW , Replaced By: N304017010049
140
SCREW HOLLOW RUBBER SPRING TO CAB,5 956658
140
SCREW , Replaced By: N304017010030
140
SCREW PIPE ELBOW TO BRACKET M 10X50
140
SCREW , Replaced By: N304017010053
145
RUBBER BUFFER CAB
150
GUIDE RIGHT
150
GUIDE LEFT
155
BUSHING LATERAL GUIDE OF CAB
160
SPACER TUBE BRACKET TO CONSOLE
165
SCREW STRUT TO FRAME M 12X62
165
SCREW , Replaced By: N308676012018
170
NUT SUPPORT TO SIDE MEMBER
190
SPACER TUBE RADIATOR SHIELD TO FRAME CROSS MEMBER,K 220702 TO BE ADAPTED DURING ASSEMBLY
195
SCREW RADIATOR SHIELD TO FRAME CROSS MEMBER,K 220702
200
BRACKET RADIATOR PROTECTIVE GRILLE TO BUMPER,K 220702
200
BRACKET RADIATOR PROTECTIVE GRILLE TO BUMPER,K 220702
205
SCREW EXHAUST PIPE TO BRACKET
999
SPACER TUBE COVER PLATE TO FRAME
999
BRACKET COVER PLATE
999
STRUT FRONT RIGHT
999
PLATE RIGHT REINFORCEMENT
999
STRUT FRONT LEFT
999
PLATE LEFT REINFORCEMENT
999
STRUT FRONT RIGHT
999
STRUT FRONT LEFT
999
PLATE RIGHT REINFORCEMENT
999
BRACKET RIGHT STEP, INAPPLICABLE TO TYP 652.146
999
PLATE LEFT REINFORCEMENT
999
BRACKET LEFT ROCKER PANEL, INAPPLICABLE TO TYP 652.146
999
SCREW STRUT TO BUMPER
999
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
999
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
