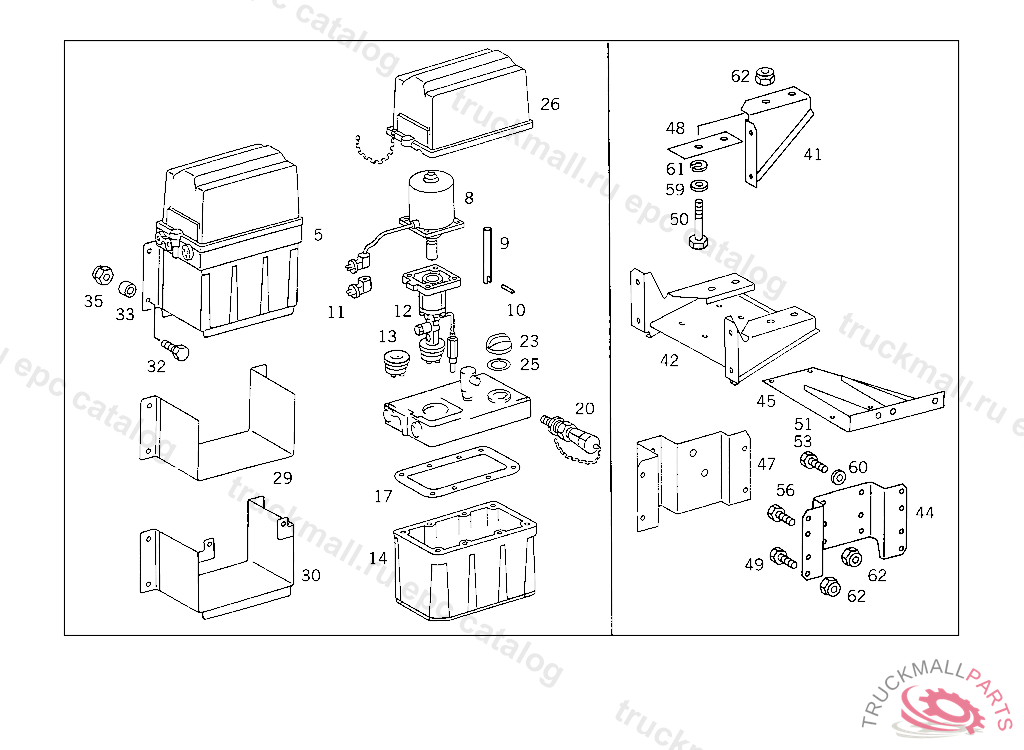

Поз.
Артикул
Описание
5
PUMP WITH FILLER CAP BEKA-MAX
5
PUMP , Replaced By: A0005715401
5
PUMP WITH FILLER CAP BEKA-MAX
5
PUMP WITH FILLER CAP BEKA-MAX
5
PUMP , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A0005719501
8
ELECTRIC MOTOR , Replaced By: A0005715401
8
ELECTRIC MOTORBEKA-MAX,TO 000 571 46 01, 54 01
8
ELECTRIC MOTOR , Replaced By: A0005402488
9
SHAFT
9
SHAFT , Replaced By: A0005710135
10
CLAMPING PIN2X12 MM
11
PLUG NOT CONFORMING TO DANGEROUS GOODS TRAFFIC REGULATIONS (GGVS)
12
SUCTION PIPE WITH GEARED PUMP BEKA-MAX,TO 000 571 4601, 5401
12
SUCTION PIPE , Replaced By: A0005700256
12
SUCTION PIPE , Replaced By: A0005700256
13
PUMP WITH GEAR BEKA-MAX
13
PUMP WITH GEAR BEKA-MAX
13
PUMP , Replaced By: A0005719401
14
RESERVOIR PUMP BEKA-MAX
14
RESERVOIR , Replaced By: A0005700204
17
GASKETBEKA-MAX
17
GASKETBEKA-MAX
17
SEAL RING , Replaced By: A0005710780
20
VALVE GREASE FILLING BEKA-MAX
20
VALVE GREASE FILLING BEKA-MAX
20
VALVE , Replaced By: A0005711614
23
COVER GREASE FILLING
25
GASKET
25
GASKET , Replaced By: A1020180380
26
COVER PUMP BEKA-MAX
26
COVER PUMP BEKA-MAX
26
COVER , Replaced By: A0005711703
29
RETAINING PLATE PUMP VOGEL,TO 000 571 54 01, 49 01, 53 01
29
RETAINING PLATE PUMP VOGEL,TO 000 571 54 01, 49 01, 53 01
29
RETAINING PLATE , Replaced By: A0005710316
30
RETAINING PLATE PUMP BEKA-MAX,TO 000 571 54 01,70 01
30
RETAINING PLATE PUMP VOGEL,TO 000 571 54 01,70 01
32
SCREW STRAP TO BRACKET
32
SCREW SENDER UNIT TO BRACKET M 8X60
32
HEXALOBULAR BOLT. SCREW BRACKET TO CROSS MEMBER M 8X50
32
SCREW , Replaced By: N000000001990
32
SCREW BRACKET TO CROSS MEMBER M 8X45
32
SCREW PUMP TO FRAME SIDE MEMBER M 8X40
32
SCREW CLAMP TO BRACKET,5 597426
32
SCREW , Replaced By: N910142008009
32
SCREW BRACKET TO BRACKET
32
SCREW BRACKET TO BRACKET
32
SCREW , Replaced By: N910142008001
33
SPACER TUBE PUMP TO FRAME SIDE MEMBER 16X21 MM
33
SPACER TUBE PUMP TO FRAME SIDE MEMBER 16X34 MM
33
SPACER TUBE PUMP TO FRAME SIDE MEMBER 14X14 MM
33
SPACER TUBE PUMP TO FRAME SIDE MEMBER 12X21 MM
35
NUT BRACKET TO BRACKET
41
CONSOLE PUMP TO REAR CROSS MEMBER,LEFT, FOR SEMITRAILERS
42
CONSOLE PUMP TO REAR CROSS MEMBER SA 26630, 26631, 33003, 33004, FOR SEMITRAILERS
44
CONSOLE PUMP TO FRAME SIDE MEMBER SA 26630/03/04/,26631/08, NOT FOR CHASSIS MODEL 652
44
CONSOLE , NOT FOR CHASSIS MODEL 652, Replaced By: A6525710338
45
CONSOLE PUMP TO FRAME SIDE MEMBER SA 26687/22/25/26,33003/10/12,33004/14, NOT FOR CHASSIS MODEL 652
47
CONSOLE PUMP TO FRAME SIDE MEMBER SA 33020/01
48
REINFORCEMENT CONSOLE TO REAR CROSS MEMBER
49
SCREW BRACKET TO BRACKET
49
SCREW , Replaced By: N910142008001
50
SCREW CONSOLE TO REAR CROSS MEMBER M 8X38
50
SCREW PUMP TO FRAME SIDE MEMBER M 8X40
51
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
51
SCREW , Replaced By: N304017008027
53
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
53
SCREW , Replaced By: N910105010011
53
SCREW BRACKET TO APPARATUS SUPPORT M 10X30
56
SCREW FRONT SPRING REAR BRACKET TO SIDE MEMBER M 14X1.5X75
56
SCREW , Replaced By: N000961014148
56
SCREW , Replaced By: N000961014084
56
HEXAGON HEAD BOLT. SCREW BRACKET TO CONSOLE
56
SCREW , Replaced By: N910105014010
56
SCREW SUPPORT TO SIDE MEMBER M14X40
56
SCREW VERTICAL TAIL PIPE BEHIND CAB
59
WASHER EXHAUST MUFFLER TO STRAP
59
WASHER , Replaced By: N000125008443
60
WASHER RADIATOR TO RUBBER MOUNTING
60
WASHER , Replaced By: N000125010532
61
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
62
NUT PARTICLE FILTER M14
62
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
62
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
62
NUT , Replaced By: N913004008001
999
BRACKET PUMP TO FRAME SIDE MEMBER SA 26687/23,5 915742
