Поз.
Артикул
Описание

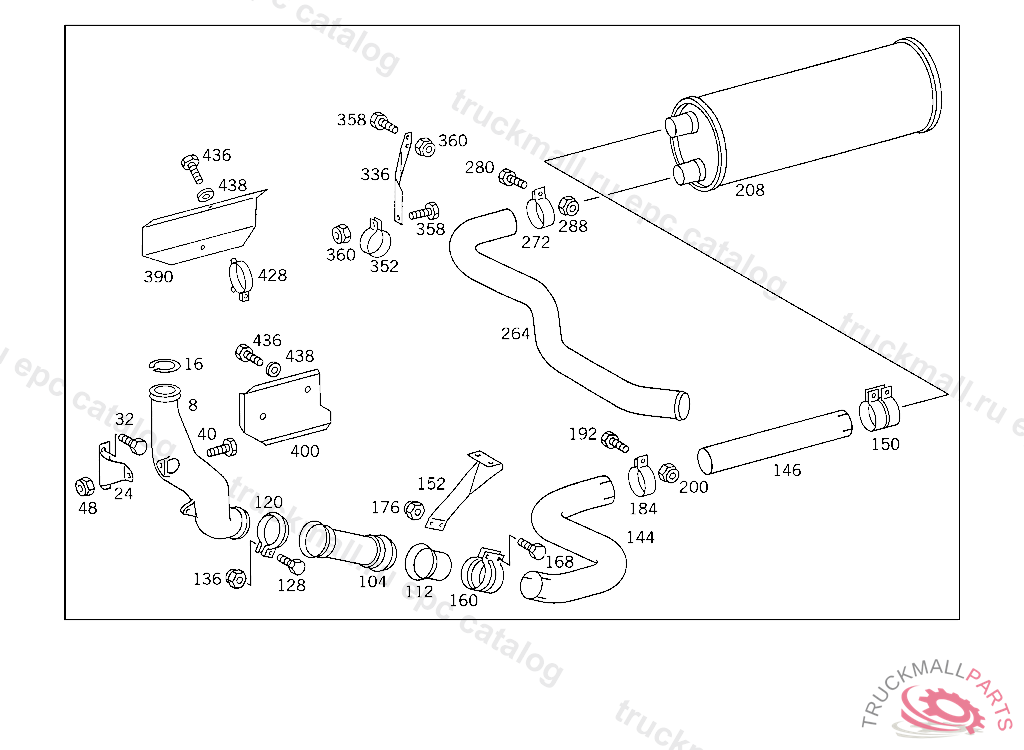

8
FRONT EXHAUST PIPE
16
SEAL RING BETWEEN FRONT EXHAUST PIPE AND FLEXIBLE METAL TUBE
24
BRACKET , Replaced By: A6524927041
24
BRACKET FRONT EXHAUST PIPE TO TIMING CASE,TOP
24
BRACKET TAIL PIPE
32
SCREW , Replaced By: N304017016011
32
SCREWM 16X25
40
SCREW SUPPORT TO CROSS MEMBER M 10X28
40
SCREW END PIECE TO EXHAUST PIPE M 10X25
48
NUT , Replaced By: N910113010000
48
NUT STRAP TO BRACKET
48
NUT STRAP TO BRACKET
104
FLEXIBLE METAL TUBE FRONT
104
FLEXIBLE METAL TUBE FRONT
104
FLEXIBLE METAL TUBE FRONT LEFT
104
FLEXIBLE METAL TUBE FRONT LEFT
112
CONNECTOR EXHAUST LINE FLEXIBLE METAL TUBE
112
CONNECTOR EXHAUST LINE FLEXIBLE METAL TUBE
112
CONNECTOR EXHAUST LINE FLEXIBLE METAL TUBE
112
COLLAR (SLIDING COLLAR)
112
COLLAR (SLIDING COLLAR)
120
CLAMP FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
128
SCREW SUPPORT TO FENDER
128
SCREW , Replaced By: N304017008018
128
SCREW CLAMP TO EXHAUST PIPE AND TO FLEXIBLE METAL TUBE M 8X25
136
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
136
NUT , Replaced By: N913004008001
136
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
144
EXHAUST PIPE FRONT
144
EXHAUST PIPE FRONT
144
EXHAUST PIPE FRONT
144
EXHAUST PIPE FRONT
144
EXHAUST PIPE , Replaced By: A6524907320
144
EXHAUST PIPE FRONT
144
EXHAUST PIPE FRONT
144
EXHAUST PIPE FRONT
144
EXHAUST PIPE FRONT
144
EXHAUST PIPE FRONT
144
EXHAUST PIPE FRONT,REAR PART,5 953233
144
EXHAUST PIPE FRONT,REAR PART
144
EXHAUST PIPE FRONT
146
EXHAUST PIPE FRONT,REAR LEFT PART
150
CLAMP EXHAUST PIPE TO BRACKET
152
BRACKET FRONT EXHAUST PIPE
152
BRACKET FRONT EXHAUST PIPE
152
BRACKET AT SIDE MEMBER
152
BRACKET FRONT EXHAUST PIPE TO SIDE MEMBER
152
BRACKET LEFT EXHAUST PIPE
152
BRACKET FRONT EXHAUST PIPE,LEFT
152
BRACKET AT SIDE MEMBER
152
BRACKET FRONT EXHAUST PIPE
152
BRACKET AT SIDE MEMBER
160
CLAMP EXHAUST PIPE TO BRACKET
160
CLAMP EXHAUST PIPE TO BRACKET
168
SCREW , Replaced By: N304017010002
168
SCREW BRACKET TO SIDE MEMBER
168
SCREW BRACKET TO SIDE MEMBER
168
SCREW END PIECE TO EXHAUST PIPE M 10X25
176
NUT , Replaced By: N910113010000
176
NUT STRAP TO BRACKET
176
NUT STRAP TO BRACKET
184
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
184
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
184
CLAMP , Replaced By: N071555100501
184
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
184
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
192
SCREW , Replaced By: N304017010002
192
SCREW BRACKET TO SIDE MEMBER
200
NUT , Replaced By: N910113010000
200
NUT STRAP TO BRACKET
208
EXHAUST MUFFLER
264
END PIECE , Replaced By: A6524921760
264
END PIECE TAIL PIPE TO EXHAUST MUFFLER
264
END PIECE (TAIL PIPE)
264
END PIECE TAIL PIPE ON THE RIGHT
264
REAR EXHAUST PIPE (TAIL PIPE)
264
REAR EXHAUST PIPE TAIL PIPE
264
FRONT EXHAUST PIPE TAIL PIPE
264
END PIECE (TAIL PIPE),5 5975185 758825
264
END PIECE LEFT
264
END PIECE RIGHT, NOT USED
272
CLAMP EXHAUST PIPE TO BRACKET
272
CLAMP EXHAUST PIPE TO BRACKET
280
SCREW , Replaced By: N304017010002
280
SCREW BRACKET TO SIDE MEMBER
288
NUT , Replaced By: N910113010000
288
NUT STRAP TO BRACKET
336
BRACKET TAIL PIPE TO SIDE MEMBER
336
BRACKET TAIL PIPE TO SIDE MEMBER
352
CLAMP EXHAUST PIPE
358
SCREW , Replaced By: N304017010002
358
SCREW BRACKET TO SIDE MEMBER
358
SCREW BRACKET TO SIDE MEMBER
360
NUT , Replaced By: N910113010000
360
NUT STRAP TO BRACKET
360
NUT STRAP TO BRACKET
390
PROTECTIVE PLATE , NOT USED
400
PROTECTIVE PLATE TAIL PIPE
428
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
428
CLAMP , Replaced By: N071555100501
428
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
436
SCREW , Replaced By: N304017008016
436
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
436
SCREW , Replaced By: N304017008039
436
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
438
WASHER , Replaced By: N000125008443
438
WASHER EXHAUST MUFFLER TO STRAP
438
WASHER EXHAUST MUFFLER TO STRAP
999
BRACKET
999
BRACKET TAIL PIPE TO SIDE MEMBER
