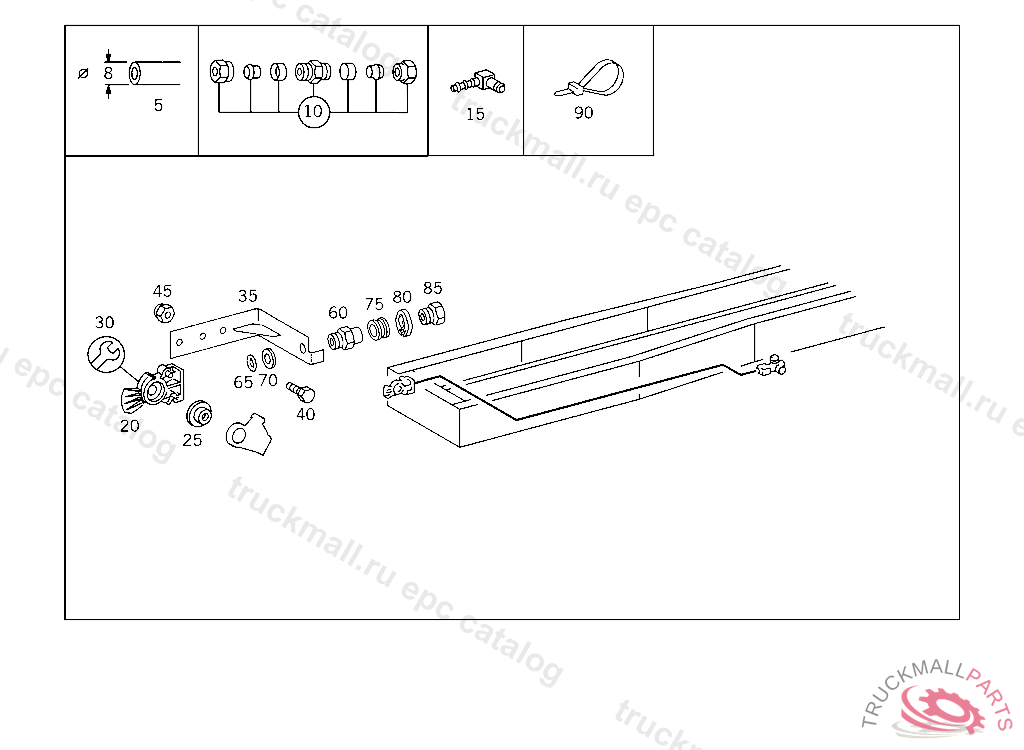

Поз.
Артикул
Описание
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
10
FITTING (PARTS KIT),LINE RUPTURE
15
ELBOW FITTING HOSE WIDTH, 9 MM,TO M22
15
ELBOW FITTING , Replaced By: A0049905371
15
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
20
BRAKE LINE COUPLING SUPPLY "KNORR"
20
BRAKE LINE COUPLING SUPPLY "WABCO"
25
SEAL RING"WABCO"
30
REPAIR KITTO 000 429 63 30
35
BRACKET BRAKE LINE COUPLING,5 905819
40
SCREW , Replaced By: N910142008001
40
SCREW BRACKET TO BRACKET
45
NUT BRACKET TO BRACKET
60
FITTING LOAD/NO-LOAD VALVE,CONNECTION: "40",5 509133
65
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
70
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
75
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
80
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
85
SCREW. UNION SCREW LINE CONNECTION
90
LOOM TIE LINE MOUNTING 280 MM
999
FITTING AIR DEHYDRATOR
