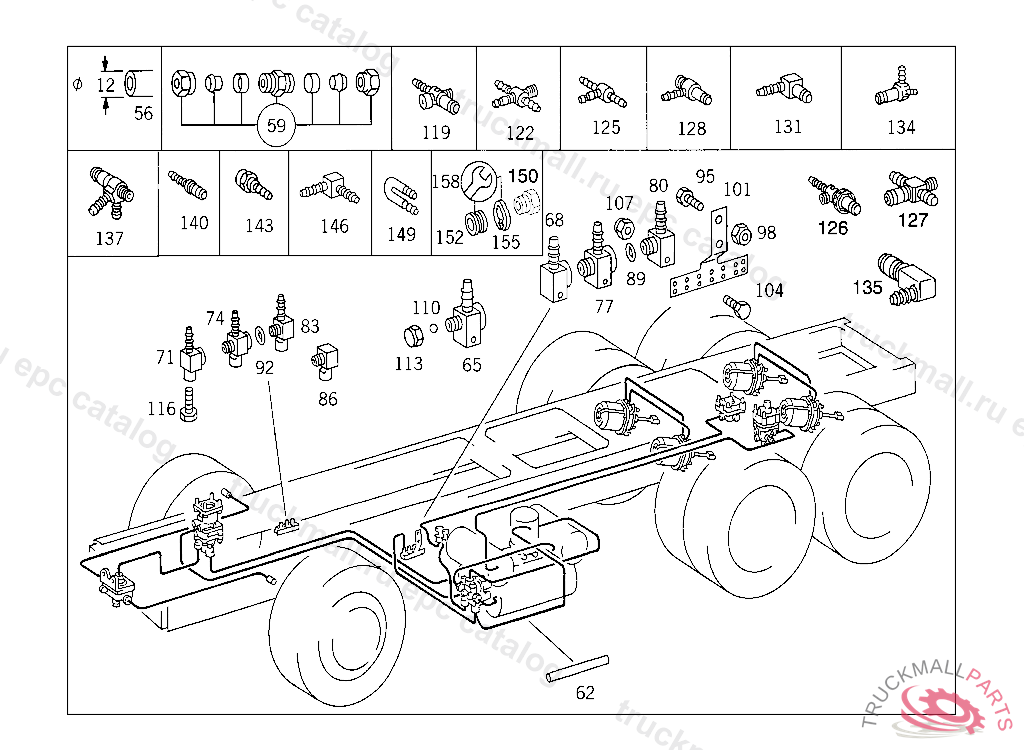

Поз.
Артикул
Описание
56
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
56
HOSE , Replaced By: A0009872827
59
FITTING (PARTS KIT),LINE RUPTURE
62
INSULATING HOSE AIR DEHYDRATOR, ORDER BY THE METER
65
CONNECTOR HOSE WIDTH, 9 MM,TO M22
68
CONNECTOR DISTRIBUTOR TO FRAME
68
CONNECTOR , Replaced By: A0019903978
71
CONNECTOR DISTRIBUTOR TO CAB
74
CONNECTOR DISTRIBUTOR TO CAB
74
CONNECTOR DISTRIBUTOR TO CAB
77
CONNECTOR DISTRIBUTOR TO FRAME
80
CONNECTOR DISTRIBUTOR TO FRAME
83
CONNECTOR DISTRIBUTOR TO CAB
86
CONNECTOR DISTRIBUTOR TO CAB
89
SEAL RING CONNECTOR 11.8X2 MM
89
SEAL RING , Replaced By: A0229973948
92
SEAL RING
95
SCREW REINFORCEMENTS AND ANGLE TO CROSS MEMBER,5 519079
98
NUT SUPPORT TO SIDE MEMBER
101
BRACKET CONNECTOR TO FRAME
104
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
107
NUT PUMP TO BRACKET
107
NUT , Replaced By: N913004006001
110
PLUG EXHAUST BRAKE VALVE, CONNECTION: "20"
113
NUT EXHAUST BRAKE VALVE, CONNECTION: "20"
116
SCREW EXHAUST BRAKE SEPARATION POINT
119
DISTRIBUTOR LINE CONNECTION
125
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
125
T-FITTING HOSE WIDTH, 2X9 MM, TO M 22
125
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
126
T-FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, M 12X1.5 MM/ 9 MM
128
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
128
T-FITTING HOSE WIDTH, 9 MM, TO M 22, M 12X1.5
131
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
134
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
135
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 9 MM
137
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION 9 MM,TO M 22
140
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
143
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
146
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
149
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
150
SCREW. UNION SCREW LINE CONNECTION
152
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
155
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
158
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
999
BRACKET COMPRESSED AIR LINE TO ENGINE
