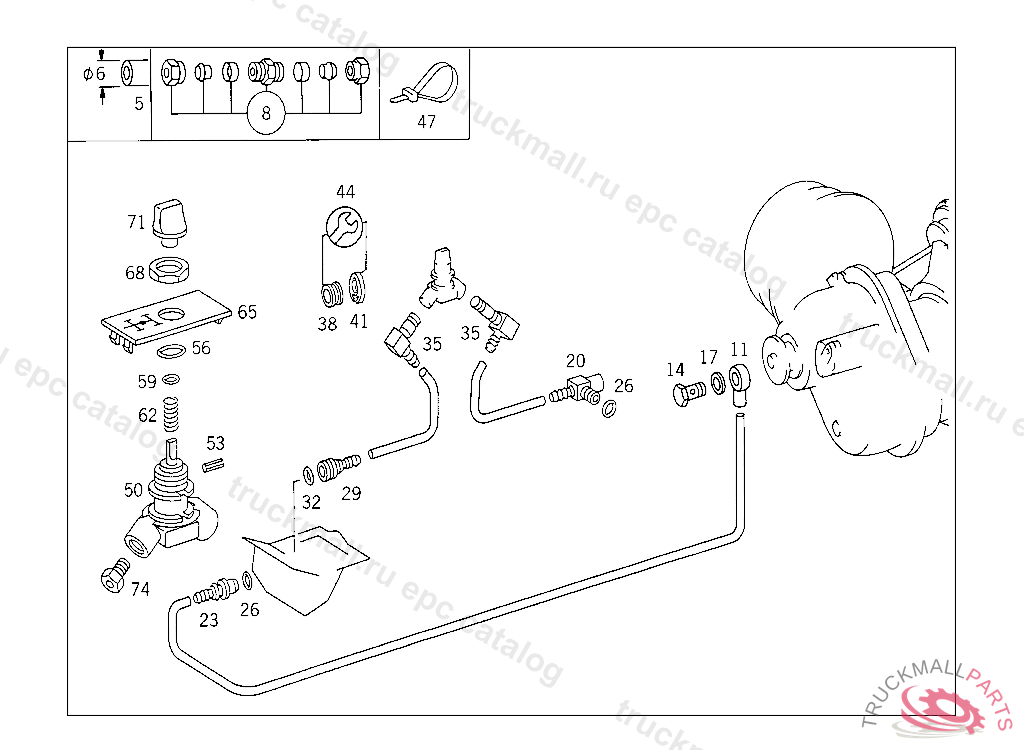

Поз.
Артикул
Описание
5
PLASTIC PIPE RISING PIPE 4X6 MM
5
PLASTIC PIPE RISING PIPE 4X6 MM
5
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
11
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
14
HOLLOW SCREW HEATING CONNECTION
17
SEAL RING LINE CONNECTION
20
CONNECTOR DISTRIBUTOR TO CAB
23
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
26
SEAL RING
29
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION
32
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
35
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
38
LOCK RING LINE CONNECTION
38
SEAL RING , Replaced By: A0009940747
41
LOCK LINE CONNECTION
41
LOCK , Replaced By: A0009945448
44
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
44
REPAIR KIT , Replaced By: A0309971748
47
LOOM TIE LINE MOUNTING
47
LOOM TIE LINE MOUNTING 280 MM
50
VALVE LONGITUDINAL DIFFERENTIAL LOCK CONTROL WABCO
50
VALVE LONGITUDINAL DIFFERENTIAL LOCK CONTROL WABCO
50
VALVE LONGITUDINAL DIFFERENTIAL LOCK CONTROL BOSCH
53
CLAMPING SLEEVE TOP WABCO
56
SEAL RING TOP WABCO
59
SEAL RING INSIDE WABCO
62
SPRING INSIDE WABCO
65
GUIDE SIGN LONGITUDINAL DIFFERENTIAL LOCK
68
NUT 4/3-WAY VALVE TO SUBSTRUCTURE
71
HANDLE 3/2-WAY VALVE TO BRACKET
74
SCREW. UNION SCREW LINE CONNECTION
74
SCREW. UNION SCREW , Replaced By: A0009973734
