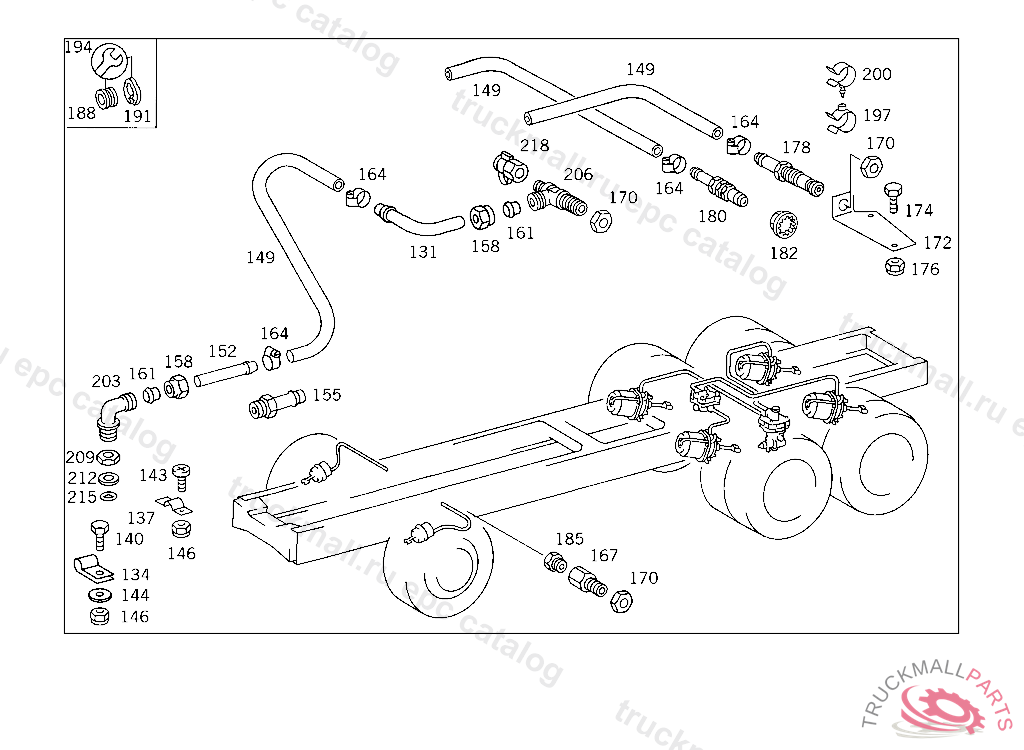

Поз.
Артикул
Описание
131
LINE FROM FITTING TO RIGHT DIAPHRAGM CYLINDER
134
CLAMP AT BRACKET
134
CLAMP , Replaced By: N916016011202
137
CLAMP 3/2-WAY SOLENOID VALVE
140
SCREW BRACKET ON LOAD SENSOR
143
SCREW CLAMP TO BRACKET
143
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
144
WASHER COMPRESSED AIR LINE TO BRACKET
144
WASHER , Replaced By: N009021006208
146
NUT PUMP TO BRACKET
146
NUT , Replaced By: N913004006001
149
HOSE FRONT AND REAR AXLE BRAKE CYLINDERS 11 MM
152
FITTING DIAPHRAGM CYLINDER,CONNECTION:
158
UNION NUT LINE CONNECTION
158
UNION NUT LINE CONNECTION, Replaced By: N000000006239
161
SEAL CONE LINE CONNECTION
161
GLAND , Replaced By: A0019901967
164
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
164
CLAMP HOSE TO FITTING AND TO OIL TANK
167
ADAPTER FITTING LINE CONNECTION TO ENGINE
170
NUT BRACKET TO SIDE MEMBER
185
SCREW. UNION SCREW LINE CONNECTION
188
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
191
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
194
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
203
ELBOW FITTING TRAILER CONTROL VALVE,CONNECTION: 1.1
206
T-FITTING DIAPHRAGM CYLINDER
209
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
212
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
215
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
218
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
218
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
218
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
218
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
218
TEST CONNECTION
218
TEST CONNECTION
218
TEST CONNECTION
218
TEST CONNECTION
999
BRACKET COMPRESSED AIR LINES
