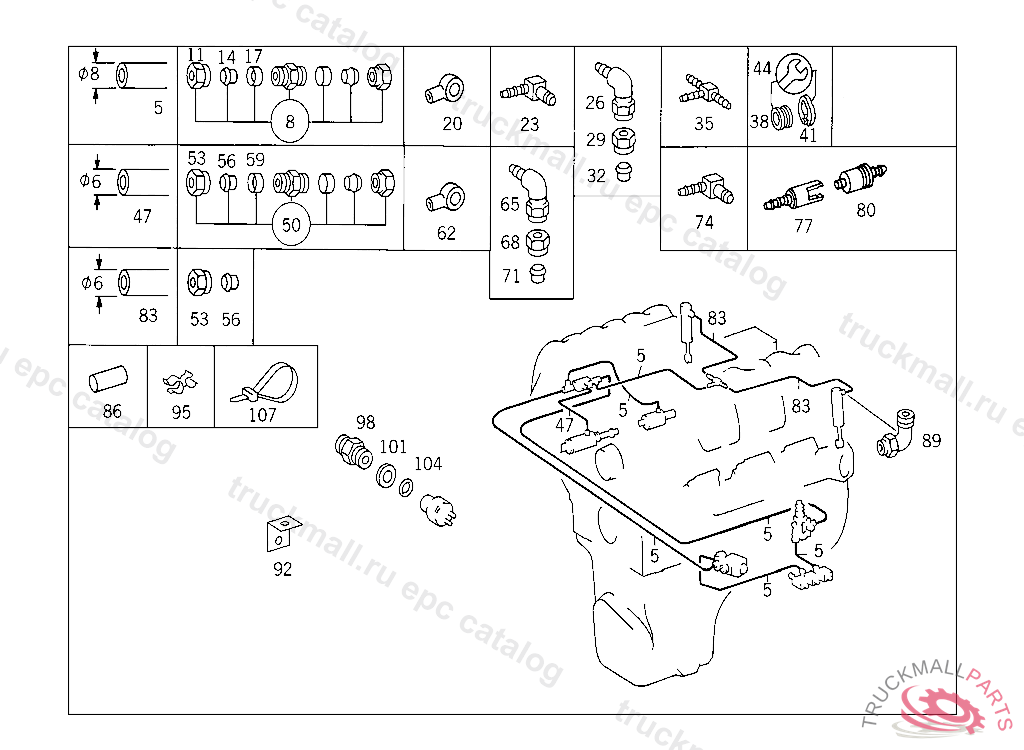

Поз.
Артикул
Описание
5
PLASTIC PIPE AERATION, ORDER BY THE METER
5
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
8
FITTING (PARTS KIT),LINE RUPTURE
11
UNION NUT LINE CONNECTION
14
GLAND LINE CONNECTION
17
SLEEVE LINE CONNECTION
20
BANJO UNION HEATING CONNECTION,K 169122
20
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
23
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
23
ELBOW FITTING , Replaced By: A0049905371
35
T-FITTING EXHAUST BRAKE LINE CONNECTION
38
LOCK RING LINE CONNECTION
38
SEAL RING , Replaced By: A0009940747
41
LOCK LINE CONNECTION
41
LOCK , Replaced By: A0009945448
44
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
44
REPAIR KIT , Replaced By: A0309971748
47
PLASTIC PIPE RISING PIPE 4X6 MM
47
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
50
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
53
UNION NUT
56
SEAL CONE
56
GLAND , Replaced By: A0019901667
59
SLEEVE LEAK LINE
62
BANJO UNION HOSE WIDTH, / I.D., 4/14 MM,K 169123
62
BANJO UNION , Replaced By: N000000000364
62
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
65
ELBOW FITTING
68
UNION NUT
71
SEAL CONE
71
GLAND , Replaced By: A0019901667
74
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
77
COUPLING COMPRESSED-AIR-LINE PLUG-CONNECTION
80
PLUG COMPRESSED-AIR-LINE PLUG-CONNECTION
83
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
86
INSULATING HOSE PROTECTION AGAINST SCORING 10 MM, SILIKON / SILICONE, ORDER BY THE METER
95
LOOM TIE BRAKE LINE MOUNTING
98
FITTING CONNECTION TO STOP LIGHT SWITCH
98
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
101
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
101
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
104
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
107
LOOM TIE LINE MOUNTING 280 MM
107
LOOM TIE LINE MOUNTING
999
SHIM 3/2-WAY SOLENOID VALVE
