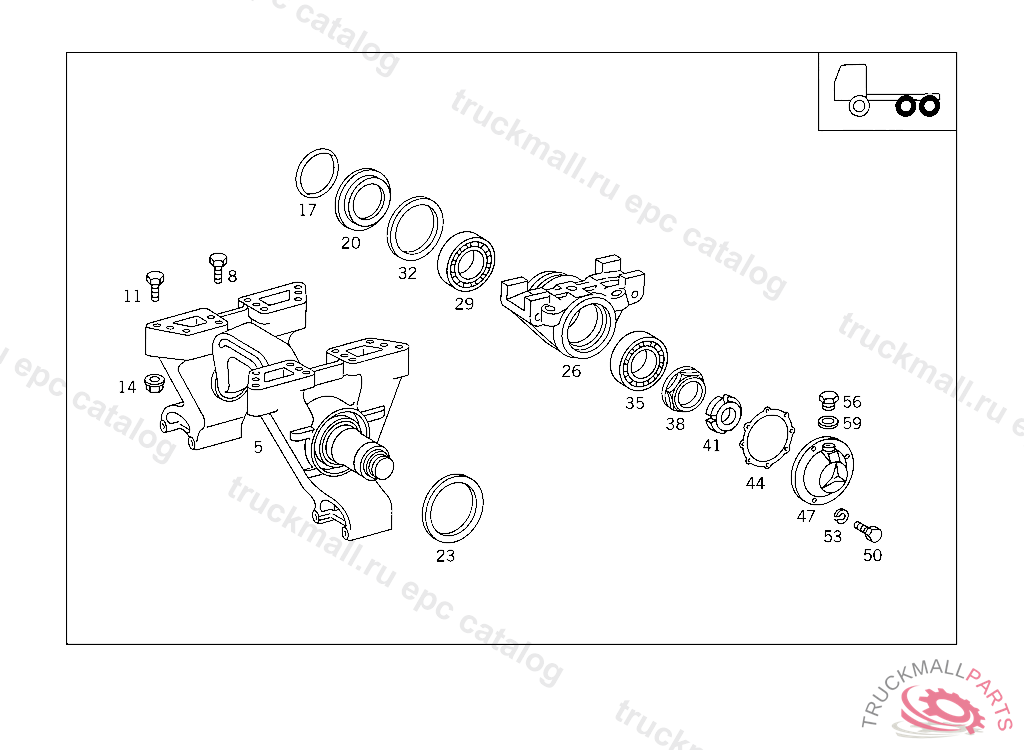

2433 K,2534 K - 653.158 - 32 SPRINGS AND SUSPENSION
Поз.
Артикул
Описание
5
SPRING BRACKET
8
SCREW CONSOLE TO FRAME M 20X80
11
SCREW CENTRAL BEARING TO FRAME BM 20X1.5X90X52
14
NUT CONSOLE TO FRAME
17
SEAL RING
20
THRUST WASHER
23
GASKET
26
SPRING SADDLE
29
TAPERED ROLLER BEARING REAR SPRING SADDLE
29
TAPERED ROLLER BEARING
29
TAPERED ROLLER BEARING
29
TAPERED ROLLER BEARING
32
SEAL RING
32
SEAL RING
32
SEAL RING
32
SEAL RING
35
TAPERED ROLLER BEARING
35
TAPERED ROLLER BEARING
38
SPACER WASHER
41
NUT
44
GASKET
47
COVER
50
SCREW CLAMP TO BRACKET AND TO PIPE
53
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
56
SCREW PLUG FUEL TANK
56
SCREW PLUG , Replaced By: N007604014110
59
SEAL RINGTO 000 553 03 05,000 553 18 05,
