Поз.
Артикул
Описание
5

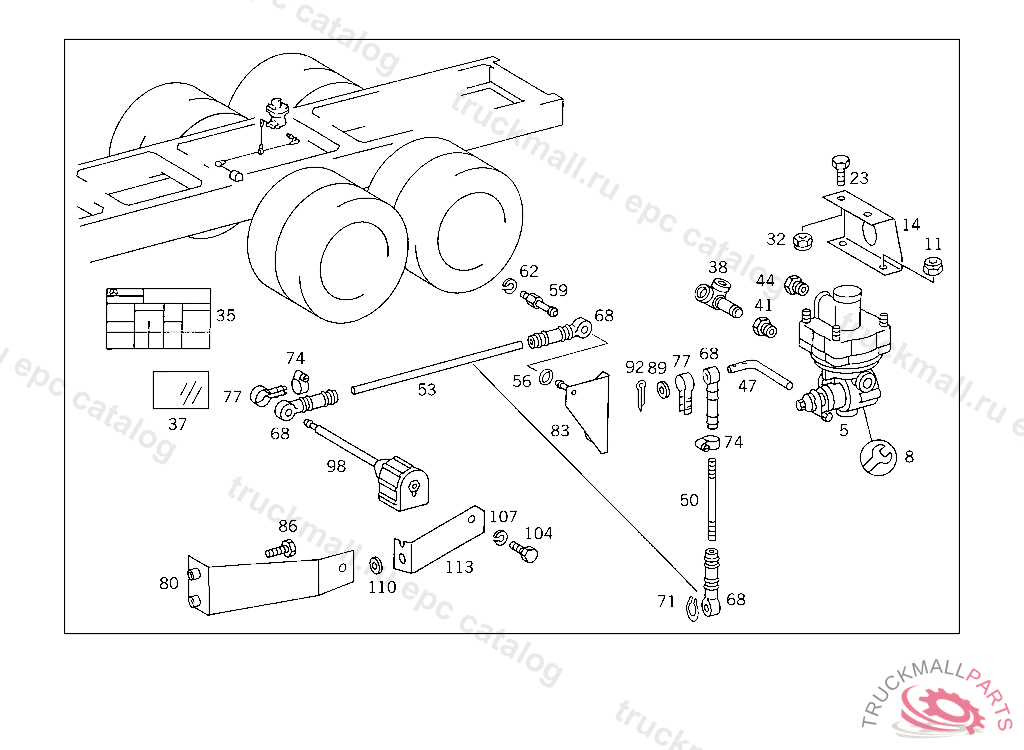

BRAKE PRESSURE REGULATORWABCO, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
REPAIR KIT BRAKE POWER REGULATOR WABCO
11
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
11
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
11
NUT , Replaced By: N913004008001
14
BRACKET BRAKE POWER REGULATOR
23
SCREW BRACKET TO CROSS CONNECTION STRUT
23
SCREW , Replaced By: N304017008034
32
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
32
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
32
NUT , Replaced By: N913004008001
35
GUIDE SIGN LOAD-DEPENDING BRAKE
37
ADHESIVE FOIL GUIDE SIGN
38
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
41
SCREW. UNION SCREW LINE CONNECTION
44
SCREW. UNION SCREW LINE CONNECTION
44
SCREW. UNION SCREW , Replaced By: A0009973734
47
LEVER BRAKE POWER REGULATOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
50
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
53
ROD BRAKE POWER REGULATOR CONTROL
56
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
56
WASHER , Replaced By: N000125015019
68
CONNECTOR PULL ROD TO LEVER
68
CONNECTOR PULL ROD TO LEVER
71
LOCK RING PULL ROD TO LINK
74
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
74
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
74
CLAMP , Replaced By: N000000000665
77
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
77
CLAMP CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
83
BRACKET METAL SPRING BELLOWS
89
WASHER EXHAUST MUFFLER TO STRAP
89
WASHER , Replaced By: N000125008443
92
COTTER PIN CONNECTOR TO BRAKE PRESSURE REGULATOR LEVER
98
METAL SPRING BELLOWS BEARING BRACKET TO REAR AXLE,K 006315
104
SCREW AT ENGINE MOUNTING,TO MOUNT LINES
107
LOCK WASHER FITTING TO BRACKET
110
WASHER BRACKET TO FRAME
110
WASHER , Replaced By: N000125017016
113
BRACKET METAL SPRING BELLOWS,REAR AXLE I
