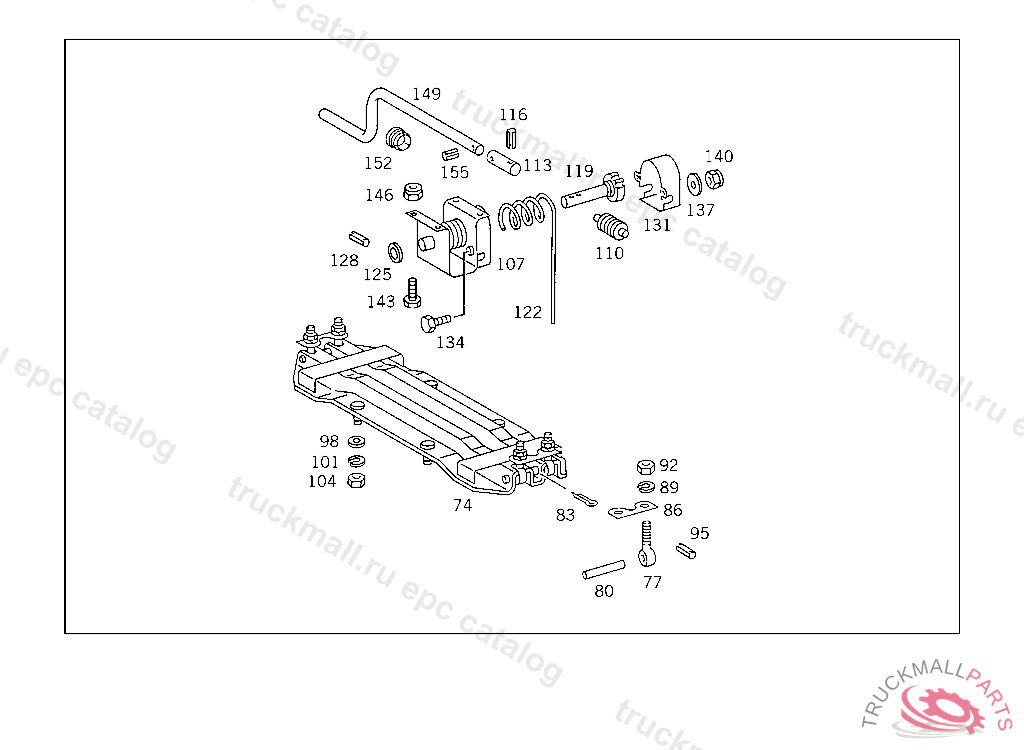

Поз.
Артикул
Описание
74
BRACKET SPARE WHEEL MOUNTING,K 058473
74
BRACKET SPARE WHEEL
77
SCREW SPARE WHEEL CARRIER TO SIDE MEMBER
77
SCREW , Replaced By: A6519900023
80
PIN AT BRACKET
83
COTTER PIN STRAP TO SUPPORT
86
BASE BLOCK SPARE WHEEL CARRIER TO SIDE MEMBER
89
LOCK WASHERROCKINGER TYP 59 G140,59 G150
92
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
92
NUT , Replaced By: N308673016001
95
CLAMPING SLEEVE BRACKET TO PEDAL BEARING BRACKET
98
WASHER SPARE WHEEL TO BRACKET
101
LOCK WASHER SPARE WHEEL TO BRACKET
104
NUT REAR SPRING TO REAR AXLE
104
NUT , Replaced By: N308674020000
104
NUT , Replaced By: N308673020002
107
SPARE WHEEL HOIST
110
WORM
113
BUSHING
116
CLAMPING SLEEVE CRANK TO BUSHING
119
STOP GEAR ,5 127460
122
WIRE CABLE
122
WIRE CABLE. ROPE , ORDER BY THE METER, Replaced By: N083334008000
125
WASHER WORM AND SHAFT TO BRACKET
128
CLAMPING PIN BRACKET TO SUPPORT
128
CLAMPING SLEEVE , Replaced By: N308752008000
131
COVERING PROTECTION PLATE TO BRACKET
134
SCREW COVER PLATE TO BRACKET
137
WASHER COMPRESSED AIR LINE TO BRACKET
137
WASHER , Replaced By: N009021006208
140
NUT PUMP TO BRACKET
140
NUT , Replaced By: N913004006001
143
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
146
NUT STRAP TO BRACKET
146
NUT , Replaced By: N910113010000
149
CRANK SPARE WHEEL HOIST
152
BUSHING CRANK
152
BUSHING SPARE WHEEL HOIST,4 179002
155
CLAMPING SLEEVE CRANK TO BUSHING
