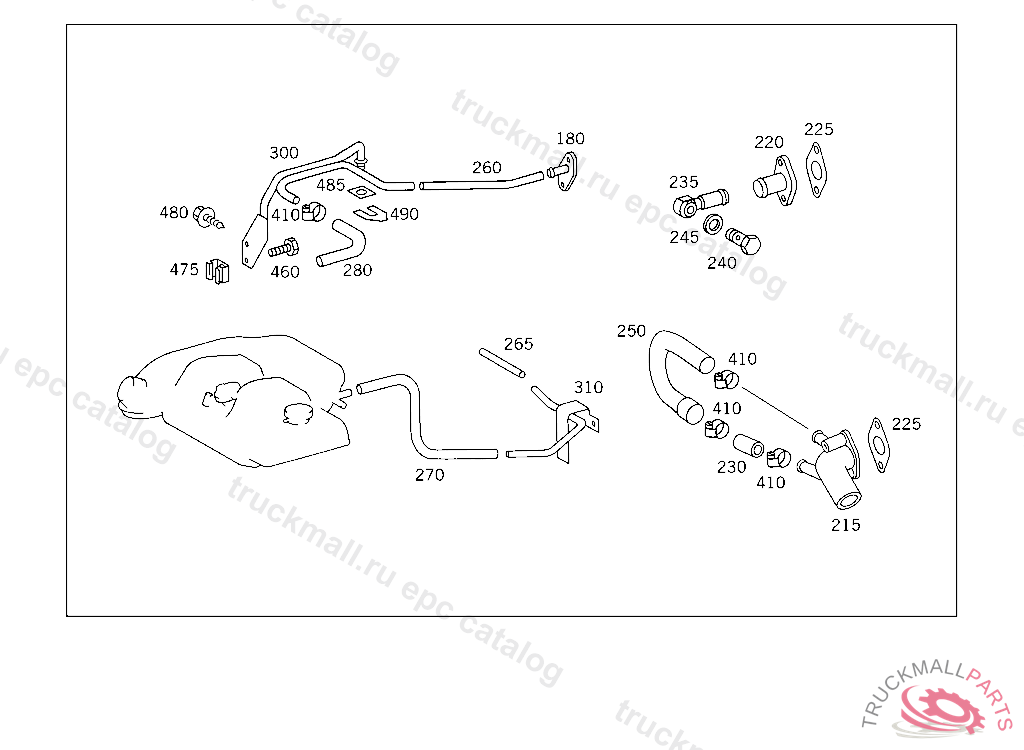

Поз.
Артикул
Описание
180
FLANGE ENGINE BREATHING
215
CONNECTOR FROM ENGINE TO EXPANSION TANK
215
CONNECTOR FROM ENGINE TO EXPANSION TANK
220
OUTLET DE-AERATION PIPE TO ENGINE
220
OUTLET DE-AERATION PIPE TO ENGINE
225
GASKET. SEAL DE-AERATION PIPE TO ENGINE
230
LOCKING CAP INTERMEDIATE PIPE TO PARTICLE FILTER
235
FITTING ENGINE BREATHING
240
HOLLOW SCREW , Replaced By: N915036010108
240
HOLLOW SCREW FUEL LINE TO FEED PUMP
245
SEALING RING. SEAL RING ENGINE BREATHING
250
HOSE DE-AERATION PIPE TO EXPANSION TANK
250
HOSE DE-AERATION PIPE TO EXPANSION TANK
260
HOSE FROM FLANGE TO DE-AERATION PIPE
260
HOSE FROM FLANGE TO DE-AERATION PIPE
265
HOSE PRESSURE REGULATOR,ANTI-FREEZE DEVICE, ORDER BY THE METER
270
HOSE DE-AERATION PIPE TO EXPANSION TANK
280
HOSE DE-AERATION PIPE TO EXPANSION TANK
300
BREATHER PIPE ENGINE BREATHING
310
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
410
CLAMP HOSE TO FITTING AND TO OIL TANK
410
CLAMP , Replaced By: N000000000667
410
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
410
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
410
CLAMP , Replaced By: N000000000670
410
CLAMP , Replaced By: N000000000671
410
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
410
CLAMP , Replaced By: N000000000674
410
CLAMP HOSE 70-90X13 MM
460
SCREW COVER PLATE TO BRACKET
460
SCREW END PIECE TO EXHAUST PIPE M 10X25
460
SCREW END PIECE TO EXHAUST PIPE M 10X25
460
SCREW BRACKET TO FRAME SIDE MEMBER
460
SCREW BRACKET ON LOAD SENSOR
460
SCREW PUMP TO BRACKET
460
SCREW , Replaced By: N304017008021
460
SCREW PIPE CLAMP
460
SCREW , Replaced By: N000933008337
460
SCREW , Replaced By: N304017010051
460
SCREW , Replaced By: A0099900101
460
SCREW
460
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
460
SCREW SUPPORT TO FENDER
460
SCREW
460
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
460
SCREW STRAP TO BRACKET
475
NUT RETAINER , Replaced By: A0019906791
475
NUT RETAINER LICENSE PLATE TO BRACKET
480
SCREW DE-AERATION LINE TO RADIATOR
480
SCREW GUIDE TUBE BRACKET TO RADIATOR
485
PLATE FROM EXPANSION TANK TO RADIATOR 40X40 MM
485
PLATE FROM EXPANSION TANK TO RADIATOR
490
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
999
LINE FEED AND RETURN LINES TO HEATING
999
OUTLET AT WATER PUMP
999
BREATHER PIPE FROM ENGINE TO EXPANSION TANK
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR
