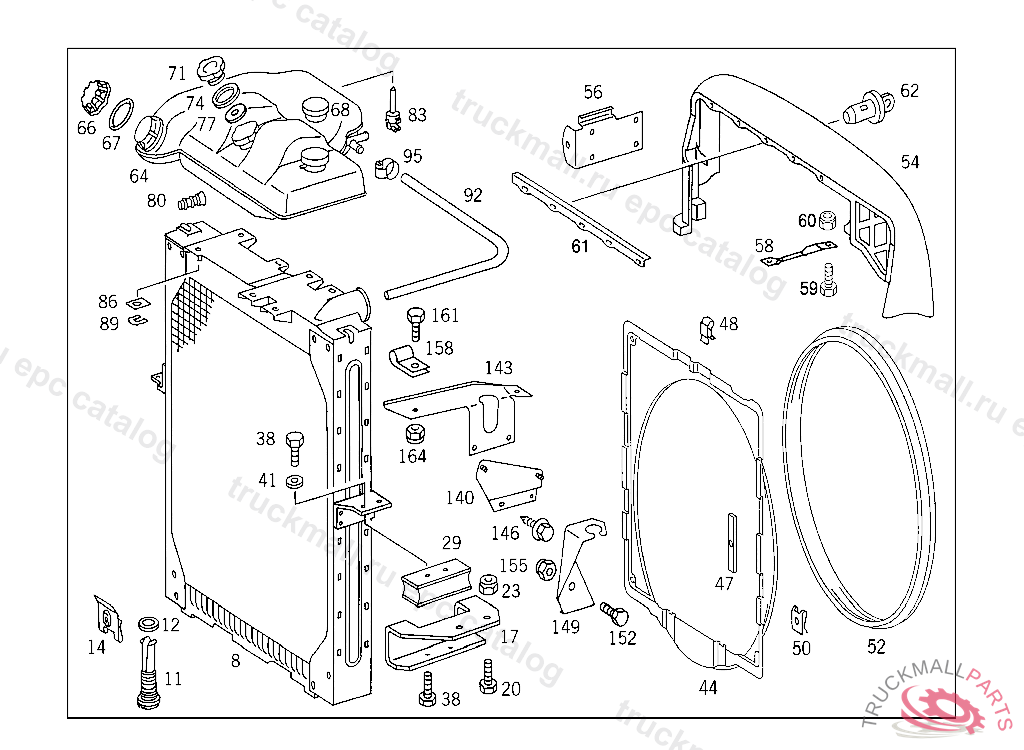

Поз.
Артикул
Описание
8
RADIATOR WATER
8
RADIATOR , Replaced By: A6505011201
8
RADIATOR , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 906164, Replaced By: A6505010601
11
SCREW WATER DRAIN
14
LOCK
17
SUPPORT RADIATOR,RIGHT,K 096750
17
SUPPORT RADIATOR,RIGHT,K 096749
17
SUPPORT RADIATOR,LEFT,K 096750
17
SUPPORT RADIATOR,LEFT,K 096749
20
SCREW SUPPORT TO SIDE MEMBER
20
SCREW , Replaced By: N000961012025
23
NUT SUPPORT TO SIDE MEMBER
29
RUBBER MOUNTING RADIATOR
38
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
41
WASHER RADIATOR TO RUBBER MOUNTING
44
FAN SHROUD RADIATOR
48
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
52
BOOT FAN SHROUD TO FAN RING
64
TANK COOLING WATER EXPANSION
66
RADIATOR CAP FILLER NECK
66
RADIATOR CAP , Replaced By: A0005016415
67
SEAL RING
68
RADIATOR CAP
71
RADIATOR CAP CENTRAL
71
RADIATOR CAP CENTRAL
74
GASKET O.D., 52 MM
77
GASKET O.D., 37 MM
80
DRAIN PIPE
83
SENDER UNIT COOLING WATER LEVEL INDICATOR
86
PLATE FROM EXPANSION TANK TO RADIATOR 48X40 MM
86
PLATE FROM EXPANSION TANK TO RADIATOR 40X40 MM
89
MOUNTING PLATE FROM EXPANSION TANK TO RADIATOR
92
HOSE FROM EXPANSION TANK TO RADIATOR
95
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
95
CLAMP , Replaced By: N916017011001
140
BRACKET , NOT USED
146
SCREW GUIDE TUBE BRACKET TO RADIATOR
146
SCREW , Replaced By: A2019900936
146
SCREW GUIDE TUBE BRACKET TO RADIATOR
146
SCREW DE-AERATION LINE TO RADIATOR
146
SCREW , Replaced By: A6739900032
158
CLAMP OIL-DIPSTICK GUIDE TUBE TO BRACKET
158
CLAMP , Replaced By: A3609951201
161
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
161
SCREW , Replaced By: N304017008016
164
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
164
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
164
NUT , Replaced By: N913004008001
999
CLAMP , Replaced By: N916016011202
